Tractor · 2009Unverified

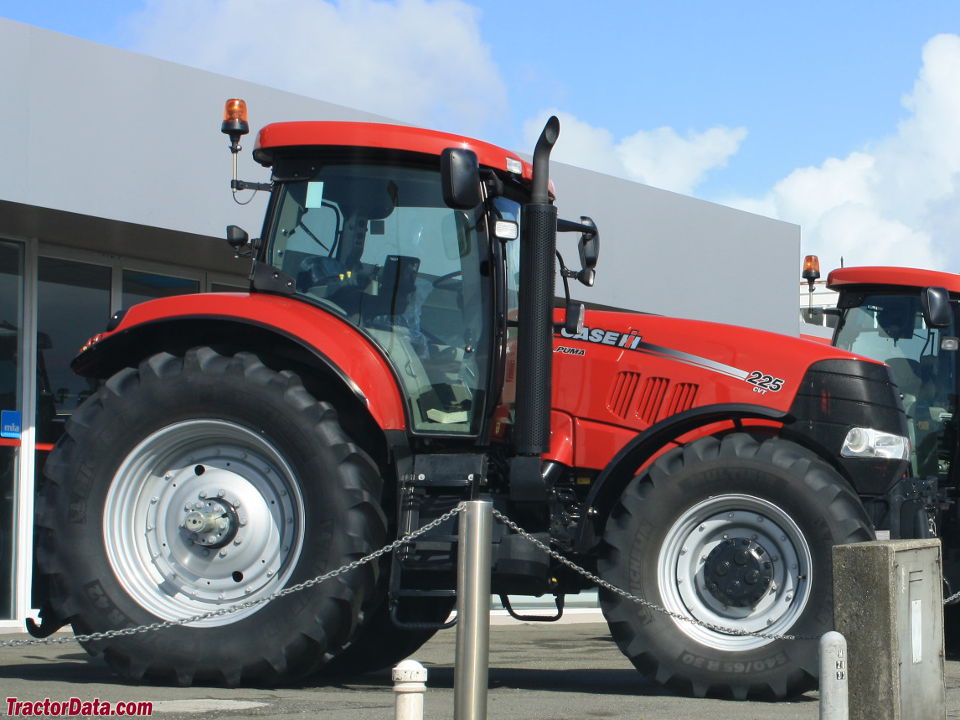

CaseIH Puma 225
CaseIH Puma 225 — Puma Series · 195 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
195 hp
Weight
7484 kg
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Row-Crop tractorReference
Built in Basildon, EnglandReference
Original price was $161,431 in 2010Reference
Four-wheel driveReference
Power steeringReference
Differential hydraulic wet disc brakesReference
Trailer brakeshydraulic optionalReference
Cab standard.Reference
Engine
CDC 6.7L 6-cyl dieselReference
Engine167.8 kWReference
CDCReference
intercooled turbocharged dieselReference
6-cylinder 24-valveReference
liquid-cooledReference
Displacement6.7 LReference
Bore/Stroke104 x 132 mmReference
EmissionsTier 3Reference
Power167.8 kWReference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Transmission
continuously variable transmission (CVT)Reference
Typecontinuously variable transmission (CVT)Reference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
PTO (claimed)145.4 kWReference
Hydraulic system100.3 LReference
Typepressure flow compensating (PFC)Reference
Capacity100.3 LReference
Valves3 to 5Reference
Pump flow149.9 lpmReference
Pump flow170.3 lpmReference
Total flow214.2 lpmReference
Total flow234.7 lpmReference
Steering flow64.3 lpmReference
Rear Type2/3NReference
Rear lift (at ends)5800 kgReference
Rear lift (at ends)7199 kgReference
Rear lift (at 24"/610mm)4944 kgReference
Rear lift (at 24"/610mm)6168 kgReference
Front HitchoptionalReference
Rear PTOindependentReference
Rear PTO Type1000/1000EReference
Front PTOoptionalReference
Front PTO Type1000Reference
Capacities
Fuel405.0 LReference
Dimensions
Wheelbase288 cmReference
Weight7484 kgReference
Front tire16.9R30Reference
Rear tire20.8R42Reference
Standard tires (ag)Front: 16.9R30. Rear: 20.8R42Reference
Height (cab)304 cmReference
Height (exhaust)311 cmReference
Shipping weight7484 kgReference
Rear axle104 by 2844 mmReference
Rear axle104 by 2489 mmReference
Rear axle104 by 3022 mmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps150Reference
Battery CCA1300Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
