Tractor · 2007Unverified

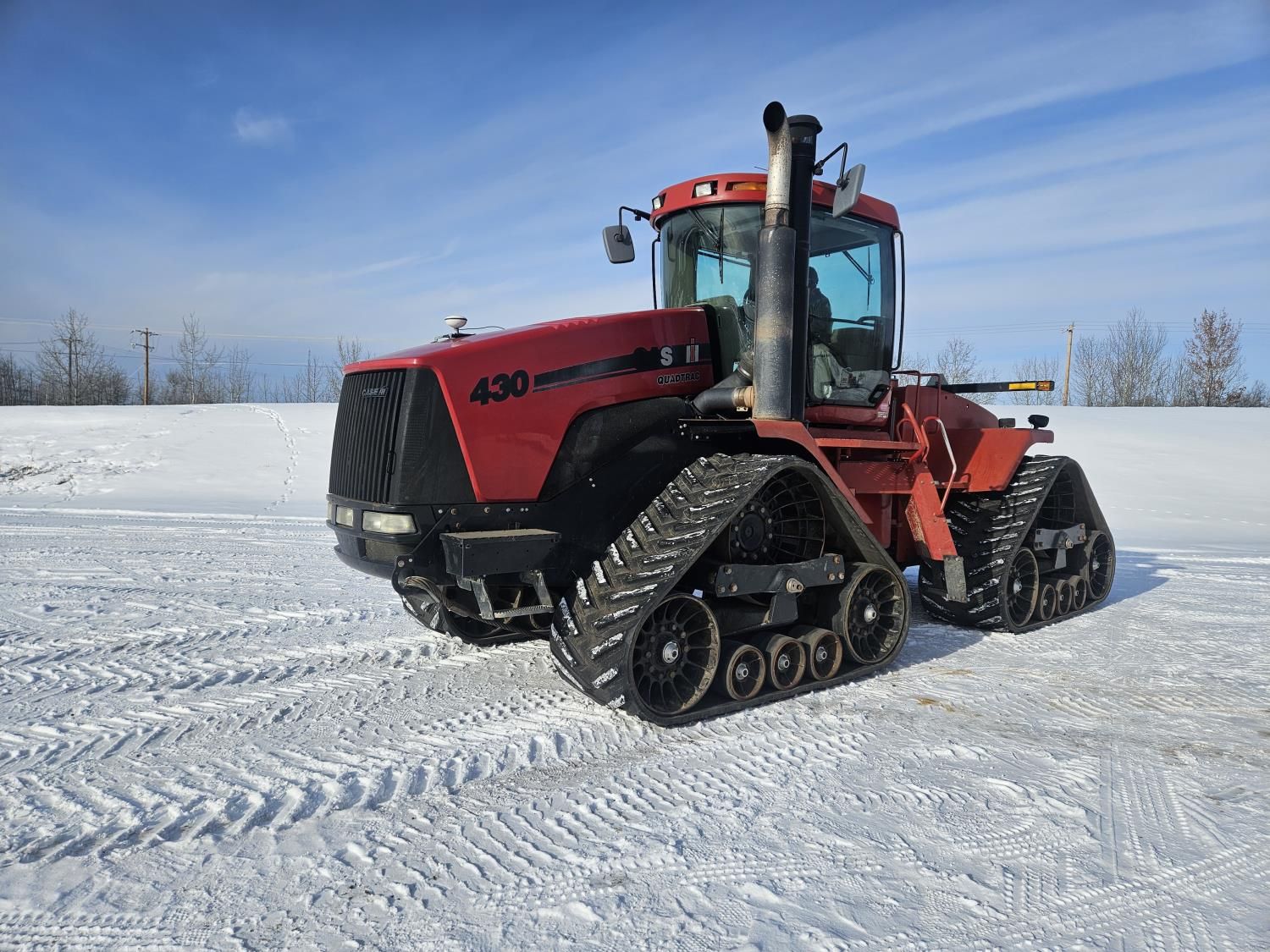

CaseIH Steiger 430

Name: CaseIH Steiger 430
Brand: CaseIH

CaseIH Steiger 430 — Four-wheel Drive (4WD) tractor · 385 hp. Reference specifications; pending source verification.

The CaseIH Steiger 430 is a high-powered tractor with a rating of 385 horsepower. It was produced from 2007 to 2008 and features a 6-cylinder turbocharged diesel liquid-cooled engine. The tractor is equipped with four-wheel drive and a powershift transmission. The listed weight range is 37900 to 41605 pounds.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

385 hp

Max power

327.3 kW

Weight

37900 to 41605 pounds

Catalogue coverage

Variants represented

Richest spec table

53 rows

Recorded power

385 hp

Transmissions

16-speed full power shift

Production years

2007-2008

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIHReference

Four-wheel Drive (4WD) tractorReference

Built in Fargo, North Dakota, USAReference

Four-wheel driveReference

Final drivesinboard planetaryReference

Articulated power steeringReference

Integrated hydraulic wet disc brakesReference

Cab standard with heat and air-conditioning, optional Luxury cabReference

Engine

Iveco 12.9L 6-cyl dieselReference

Fuel tank1135.5 LReference

Engine320.7 kWReference

Drawbar (tested)261.9 kWReference

IvecoReference

turbocharged dieselReference

6-cylinder 24-valveReference

liquid-cooledReference

Displacement12.9 LReference

Bore/Stroke135 x 150 mmReference

Power320.7 kWReference

Air cleanerdual paper elementsReference

Compression16.5:1Reference

Rated RPM2000Reference

Starter volts12Reference

Max power327.3 kWReference

Power at rated engine speed286.8 kWReference

Max power261.9 kWReference

Transmission

16-speed full power shiftReference

Typefull power shiftReference

Gears16 forward and 2 reverseReference

PTO & Hydraulics

PTO (claimed)279.6 kWReference

PTO (tested)327.3 kWReference

TypePFCReference

Pump flow151.4 lpmReference

Pump flow208.2 lpmReference

Pump flow340.7 lpmReference

Rear TypeIVNReference

Rear lift (at 24"/610mm)8899 kgReference

Rear PTOindependentReference

Rear PTO Type1000Reference

Dimensions

Wheelbase391 cmReference

Weight37900 to 41605 poundsReference

Shipping17191 kgReference

Operating18872 kgReference

Capacities

Max capacity23405 kgReference

Test results

Diesel 16-speed 4WDSeptember 25 - October 12, 2007Link: OCED Tractor Test 1909 fileReference

PTO performanceReference

Fuel use92.7 l/hourReference

Fuel use85.2 l/hourReference

Drawbar performanceReference

Fuel use83.6 l/hourReference

Gear 6 used for power test.Reference

Max pull16633 kgReference

Gear 2 used for pull test.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
