Tractor · 2008Unverified

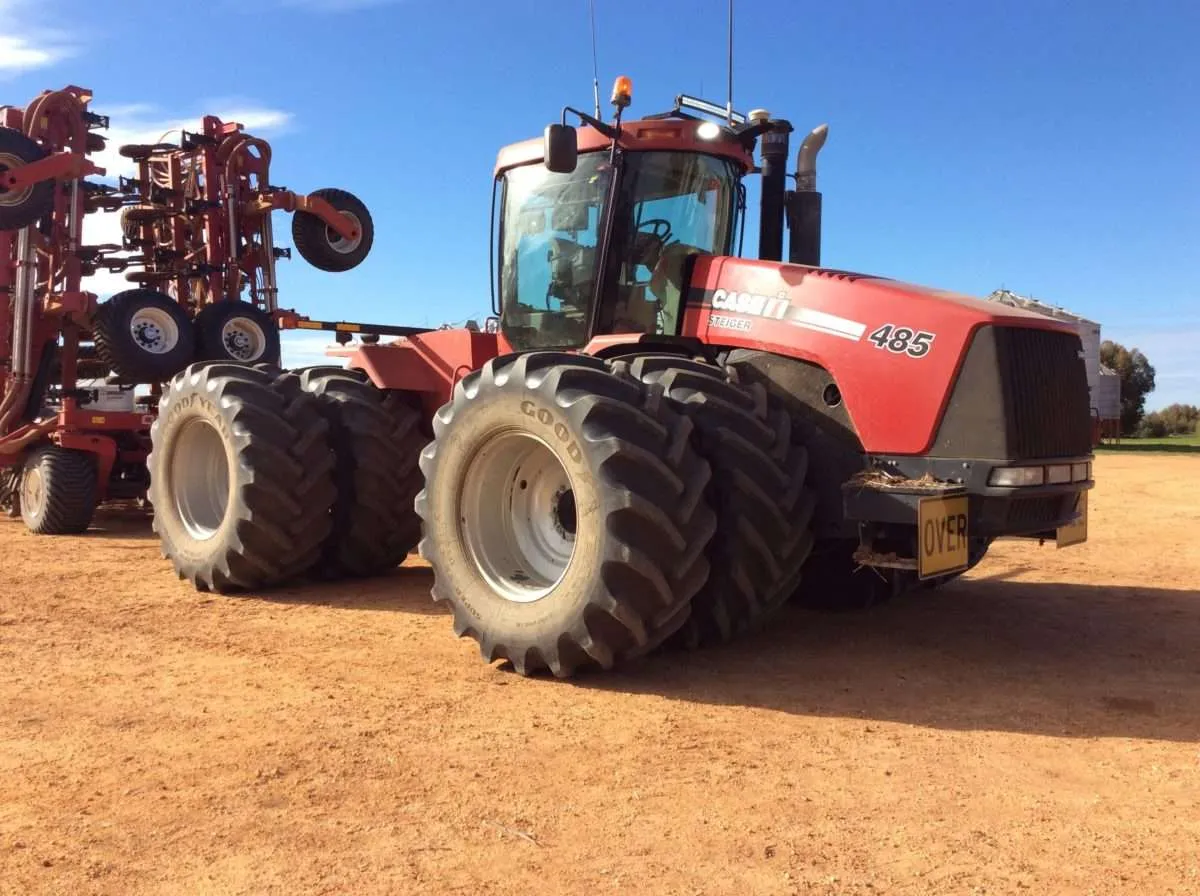

CaseIH Steiger 485
CaseIH Steiger 485 — Four-wheel Drive (4WD) tractor · 444 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
444 hp
Max power
371.6 kW
Weight
17463 kg
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Four-wheel Drive (4WD) tractorReference
Built in Fargo, North Dakota, USAReference
Original price$291,250 (2010)Reference
Four-wheel driveReference
Steeringhydrostatic powerReference
Hydraulic wet disc brakesReference
Cab standard with heat and A/C, optional Luxury cabReference
Variants
485 Quadtracarticulted crawlerReference
Engine
Iveco 12.9L 6-cyl dieselReference
Fuel tank1135.5 LReference
Engine361.7 kWReference
Drawbar (tested)298.6 kWReference
IvecoReference
turbocharged dieselReference
6-cylinder 24-valveReference
liquid-cooledReference
Displacement12.9 LReference
Bore/Stroke135 x 150 mmReference
EmissionsTier 3Reference
Power361.7 kWReference
Maximum Power398.2 kWReference
Air cleanerdual paper elementsReference
Compression16.5:1Reference
Rated RPM2000Reference
Starter volts24Reference
Oil capacity31.0 LReference
Max power371.6 kWReference
Power at rated engine speed330.9 kWReference
Max power298.6 kWReference
Transmission
16-speed full power shiftReference
Typefull power shiftReference
Gears16 forward and 2 reverseReference
PTO & Hydraulics
PTO (claimed)319.9 kWReference
PTO (tested)371.6 kWReference
Typeparallel pressure flow compensated (PFC)Reference
Valves4 to 5Reference
Valves4 to 9 (without 3-point hitch)Reference
Total flow151.4 lpmReference
Total flow208.2 lpmReference
Total flow340.7 lpmReference
Rear Type4NReference
Rear lift (at 24"/610mm)8899 kgReference
Rear PTOindependent optionalReference
Rear PTO Type1000Reference
Dimensions
Wheelbase391 cmReference
Weight17463 kgReference
Front tire710/70R42Reference
Rear tire710/70R42Reference
Ag front710/70R42Reference
Ag rear710/70R42Reference
Width111 cmReference
Shipping weight17463 kgReference
Max weight24494 kgReference
Front axle114 mmReference
Rear axle114 mmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps175Reference
Batteries2Reference
Battery CCA1000Reference
Battery volts12Reference
Test results
Diesel 16-speed 4WDSeptember 8 - 11, 2008Link: OCED Tractor Test 1934A fileReference
PTO performanceReference
Fuel use100.3 l/hourReference
Fuel use95.0 l/hourReference
Drawbar performanceReference
Fuel use93.5 l/hourReference
Gear 6 used for power test.Reference
Max pull19874 kgReference
Gear 3 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
