Tractor · 2008Unverified

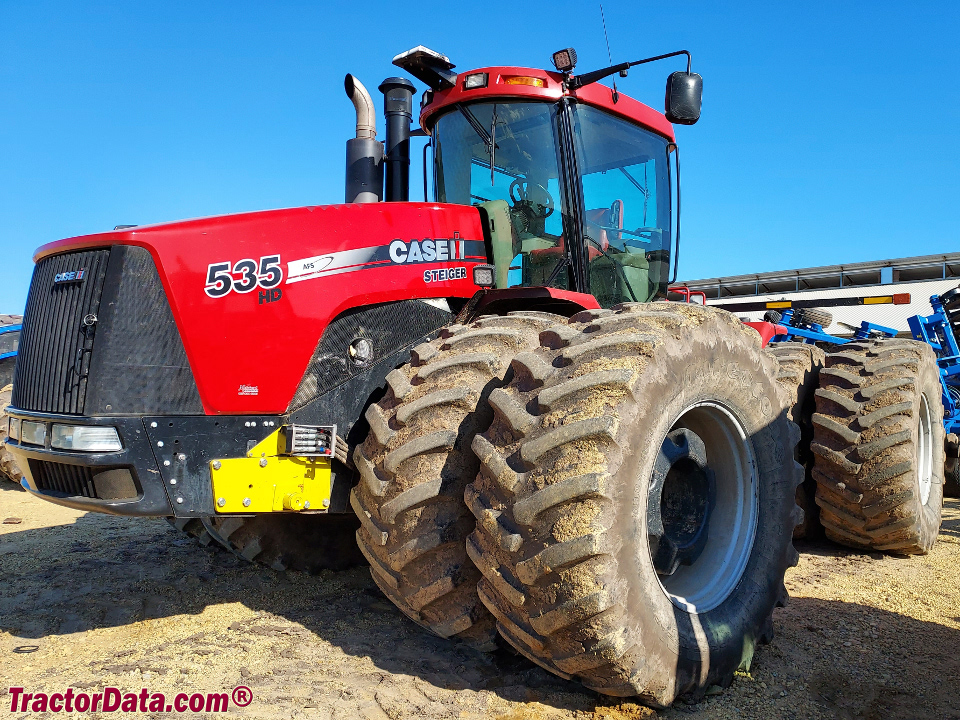

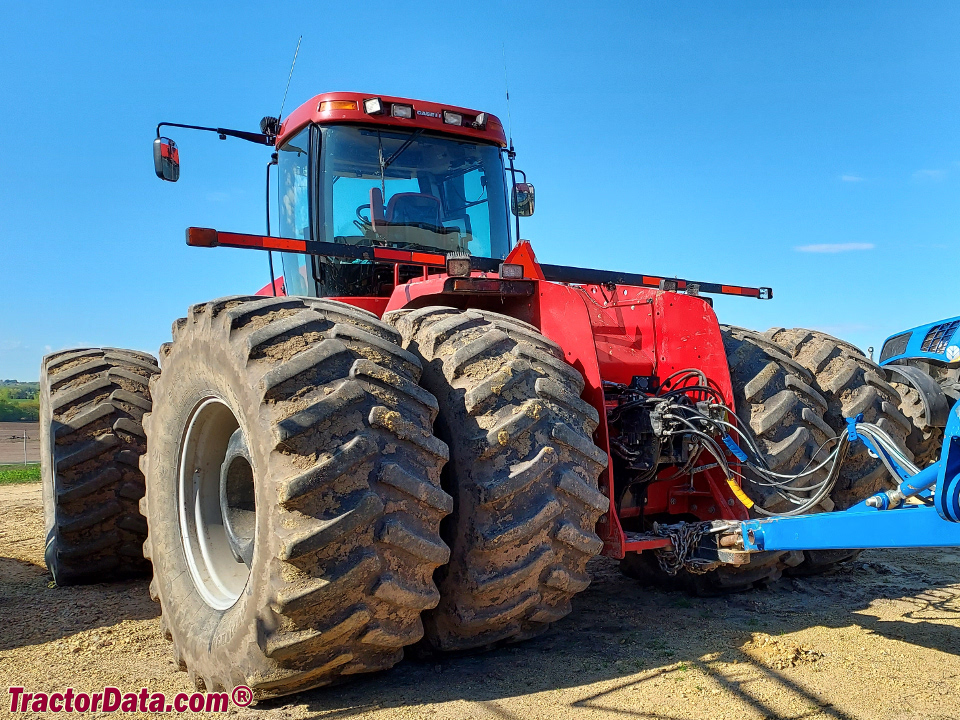

CaseIH Steiger 535
CaseIH Steiger 535 — Four-wheel Drive (4WD) tractor · 473 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
473 hp
Weight
19341 kg
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Four-wheel Drive (4WD) tractorReference
Built in Fargo, North Dakota, USAReference
Original price$318,437 (2010)Reference
Four-wheel driveReference
Hydraulic wet disc brakesReference
Cab standard with heat and A/C, optional Luxury cabReference
Variants
535 Quadtracarticulated crawlerReference
Engine
Cummins 15.0L 6-cyl dieselReference
Fuel tank1135.5 LReference
Engine398.9 kWReference
Cummins QSX15Reference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement15.0 LReference
Bore/Stroke137 x 169 mmReference
EmissionsTier 3Reference
Power398.9 kWReference
Maximum Power439.2 kWReference
Compression17:1Reference
Rated RPM2100Reference
StarterelectricReference
Starter volts24Reference
Oil capacity49.2 LReference
Transmission
16-speed full power shiftReference
Typefull power shiftReference
Gears16 forward and 2 reverseReference
PTO & Hydraulics
PTO (claimed)352.7 kWReference
Typeparallel pressure flow compensated (PFC)Reference
Valves4 to 5Reference
Valves4 to 9 (without 3-point hitch)Reference
Total flow159.0 lpmReference
Total flow215.7 lpmReference
Total flow355.8 lpmReference
Rear Type4NReference
Rear lift (at 24"/610mm)8899 kgReference
Rear PTOindependent optionalReference
Rear PTO Type1000Reference
Dimensions
Wheelbase391 cmReference
Weight19341 kgReference
Front tire800/70R38Reference
Rear tire800/70R38Reference
Ag front800/70R38Reference
Ag rear800/70R38Reference
Width111 cmReference
Front axle114 mmReference
Rear axle114 mmReference
Shipping19341 kgReference
Max Drawbar2721 kgReference
Max Drawbar4989 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps200Reference
Batteries2Reference
Battery CCA1000Reference
Battery volts12Reference
Capacities
Max capacity24494 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
