Tractor · 2000Unverified

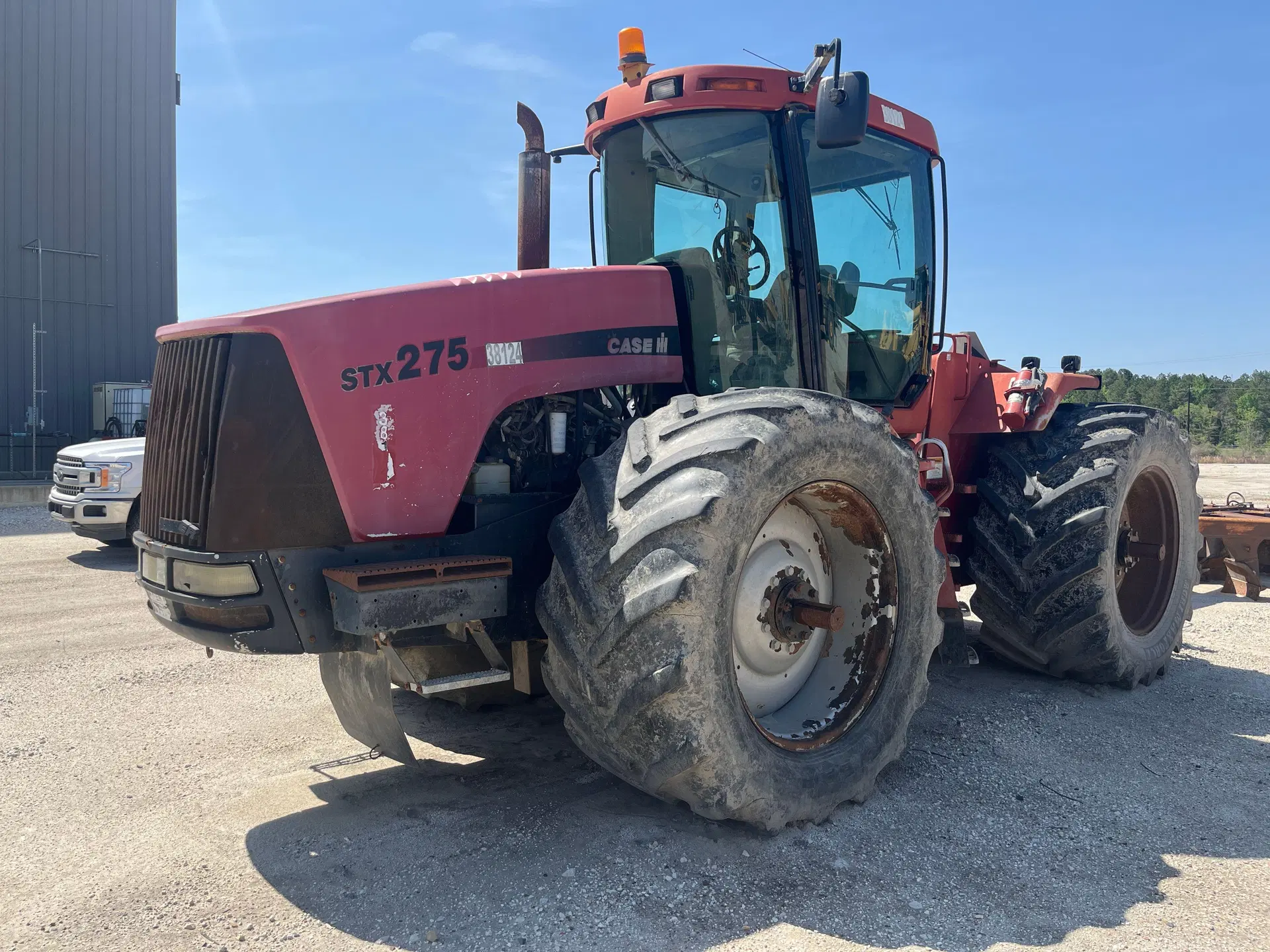

CaseIH STX275
CaseIH STX275 — Steiger STX Series · 239 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
239 hp
Max power
204.4 kW
Weight
14417 kg
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Four-wheel Drive (4WD) tractorReference
Built in Fargo, North Dakota, USAReference
The CaseIH STX275 is the same as the New Holland TJ275.Reference
Four-wheel driveReference
Final drivesinboard planetaryReference
Steeringhydrostatic powerReference
Integrated hydraulic wet disc brakesReference
Surveyor Cab standard.Reference
Variants
TJ275similar New Holland modelReference
Engine
CDC 8.3L 6-cyl dieselReference
Fuel tank757.0 LReference
Engine205.1 kWReference
Drawbar (claimed)152.9 kWReference
Drawbar (tested)157.8 kWReference
CDC 6TAA-8304Reference
turbocharged aftercooled dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement8.3 LReference
Bore/Stroke114 x 135 mmReference
Power205.1 kWReference
Air cleanerdual paper elementsReference
Compression17.1:1Reference
Rated RPM2000Reference
Torque1385.8 NmReference
Torque RPM1400Reference
Starter volts12Reference
Oil capacity23.8 LReference
Max power204.4 kWReference
Power at rated engine speed178.2 kWReference
Max power157.8 kWReference
Transmission
16-speed full power shiftReference
24-speed fully synchronizedReference
Typefull power shiftReference
Gears16 forward and 2 reverseReference
Clutchelectro-hydraulic wet discReference
TransmissionSynchroshiftReference
Typefully synchronizedReference
Gears24 forward and 6 reverseReference
PTO & Hydraulics
PTO (claimed)167.8 kWReference
PTO (tested)204.4 kWReference
Typepressure flow compensated (PFC)Reference
Rear valves4 to 7Reference
SCV flow132.5 lpmReference
Total flow151.4 lpmReference
Total flow208.2 lpmReference
Rear TypeIVN/IIIReference
Rear lift (at 24"/610mm)6577 kgReference
Rear PTOindependentReference
Rear PTO Type1000 (1.75)Reference
Dimensions
Wheelbase353 cmReference
Wheelbase368 cmReference
Weight14417 kgReference
Length750 cmReference
Width92 cmReference
Height368 cmReference
Front axle101 mmReference
Rear axle101 mmReference
Rear tread152 to 447 cmReference
Operating14417 kgReference
Max Drawbar2041 kgReference
Max Drawbar4989 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Capacities
Max capacity14968 kgReference
Test results
Diesel 16-speed 4WDOctober 3 - 12, 2001Link: Nebraska Tractor Test 1796 fileReference
PTO performanceReference
Fuel use56.8 l/hourReference
Fuel use51.5 l/hourReference
Drawbar performanceReference
Fuel use51.9 l/hourReference
Gear 4 used for power test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
