Tractor · 2003Unverified

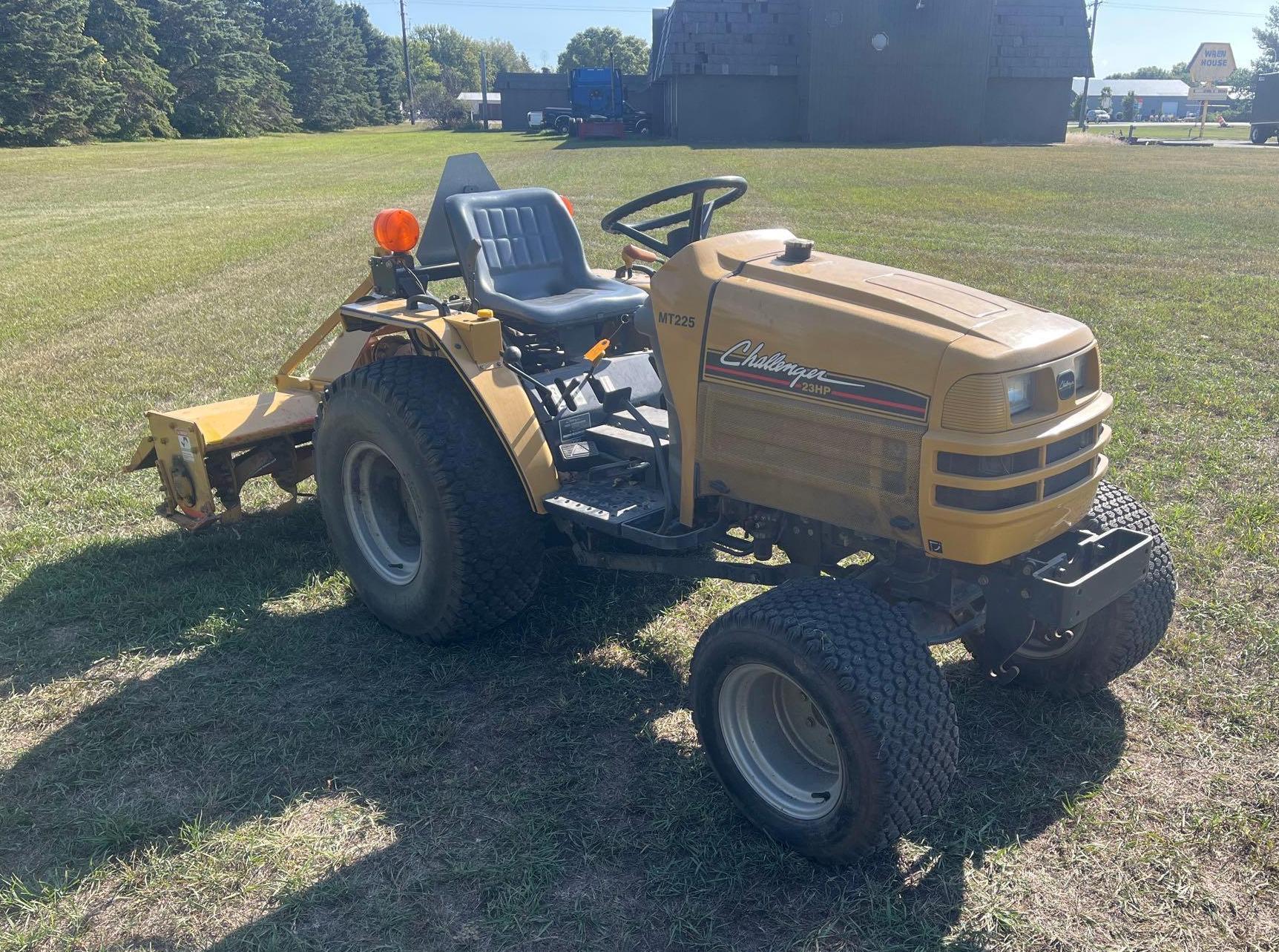

Challenger MT225
Challenger MT225 — MT200 Series · 23 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
23 hp
Weight
758 kg
Hover a source tag to verify
Overview
DistributorChallenger (a part of AGCO)Reference
ManufacturerIsekiReference
Compact Utility tractorReference
Built in Matsuyama, JapanReference
Four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Dry shoe brakesReference
Two-post fixed ROPS.Reference
Variants
1423similar Massey Ferguson modelReference
Engine
Iseki 1.1L 3-cyl dieselReference
Engine (gross)17.4 kWReference
IsekiReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.1 LReference
Bore/Stroke78 x 78 mmReference
Power (gross)17.4 kWReference
Rated RPM2800Reference
StarterelectricReference
Starter volts12Reference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (2-range)Reference
PTO & Hydraulics
PTO (claimed)14.2 kWReference
Typeopen centerReference
Pressure133.1 barReference
Pump flow20.4 lpmReference
Total flow29.9 lpmReference
Steering flow9.5 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at ends)548 kgReference
Rear lift (at 24"/610mm)314 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Mid PTOindependentReference
Mid PTO Type2000Reference
Dimensions
Wheelbase151 cmReference
Weight758 kgReference
Front tire5.00-12Reference
Rear tire9.5-16Reference
Standard tires (ag)Front: 5.00-12. Rear: 9.5-16Reference
Lawn/turf front23x10.50-12Reference
Lawn/turf rear315/75D-15Reference
Industrial front23x8.50-12Reference
Industrial rear12-16.5Reference
Length267 cmReference
Width104 cmReference
Height (ROPS)191 cmReference
Front tread92 cmReference
Rear tread88 cmReference
Challenger MT225 attachments
60" mid-mount mower deckReference
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Attachment overview
60" mid-mount mower deckReference
Front-end loaderReference
60" Mower deck
Typemid-mount Challenger MG715Reference
Type3-bladeReference
Cutting width152 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
