Tractor · 2008Unverified

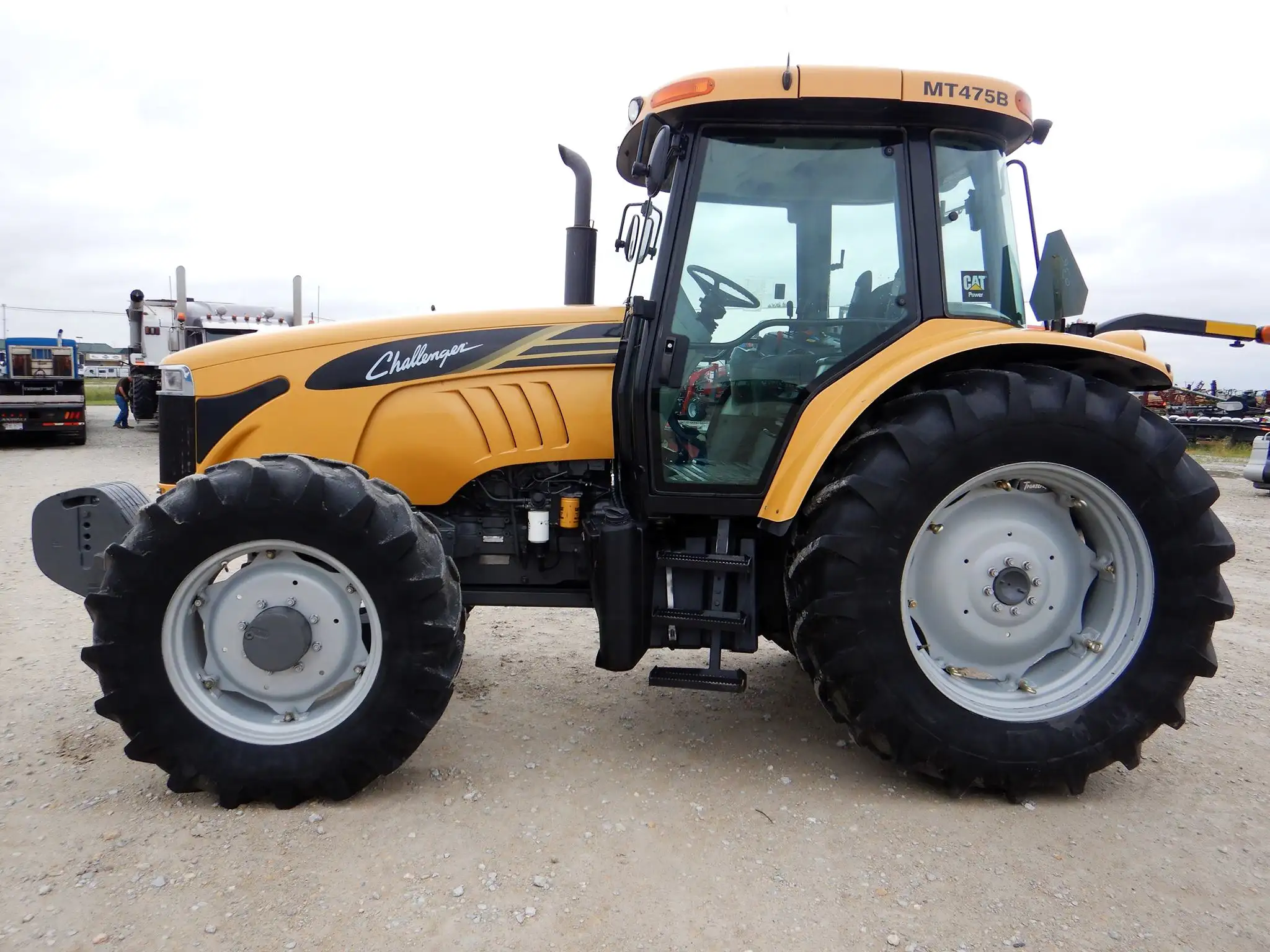

Challenger MT475B
Challenger MT475B — MT400B Series · 120 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
120 hp
Max power
92.7 kW
Weight
11195 to 11905 pounds
Hover a source tag to verify
Overview
ManufacturerChallenger (a part of AGCO)Reference
Utility tractorReference
Built in Beauvais, FranceReference
Original price$65,785 (2009 2WD )Reference
Original price$73,066 (2009 4WD )Reference
The largest tractor in the MT400B series, the MT475B was added in 2008 when the rest of the line was upgraded to EPA Tier 3 engines.Reference
Two- or four-wheel driveReference
Final drivesinboard planetaryReference
Differential lockelectro-hydraulicReference
Power steeringReference
Hydraulic wet disc brakesReference
Trailer brakeshydraulicReference
Cab standard with air-conditioning.Reference
Variants
5465similar Massey Ferguson modelReference
Engine
Caterpillar 6.6L 6-cyl dieselReference
Fuel tank143.8 LReference
Fuel tank208.2 LReference
Engine (gross)89.5 kWReference
Drawbar (tested)63.6 kWReference
Caterpillar C6.6Reference
turbocharged dieselReference
6-cylinder 24-valveReference
liquid-cooledReference
Displacement6.6 LReference
Bore/Stroke105 x 127 mmReference
EmissionsTier IIIReference
Power (gross)89.5 kWReference
Fuel systemelectronic high pressure common railReference
Air cleanerdryReference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Max power92.7 kWReference
Power at rated engine speed77.7 kWReference
Max power63.6 kWReference
Transmission
16-speed four speed power shiftReference
TransmissionAutoPower IVReference
Typefour speed power shiftReference
Gears16 forward and reverseReference
Clutchwet discReference
Four power shift gears in four ranges.Reference
PTO & Hydraulics
PTO (claimed)74.6 kWReference
PTO (tested)92.7 kWReference
Typeopen centerReference
Typeclosed centerReference
Valves2 to 4Reference
SCV flow98.4 lpmReference
SCV flow109.8 lpmReference
SCV flow56.8 lpmReference
Rear TypeIIReference
Controllower-link draft sensingReference
Rear lift (at 24"/610mm)4168 kgReference
Front HitchoptionalReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Front PTOindependentReference
Front PTO Type1000 (1.375)Reference
Power at rated PTO speed91.1 kWReference
Dimensions
Wheelbase281 cmReference
Weight11195 to 11905 poundsReference
Front tire10.00-16Reference
2WD Rear tire460/85R34Reference
2WD Standard tires (ag)Front: 10.00-16. Rear: 460/85R34Reference
4WD Standard tires (ag)Front: 340/85R28. Rear: 420/85R38Reference
2WD Optional tires (ag)Front: 10.00-16. Rear: 420/85R38Reference
2WD Optional tires (ag)Front: 10.00-16. Rear: 460/85R38Reference
2WD Optional tires (ag)Front: 11.00-16. Rear: 460/85R38Reference
4WD Optional tires (ag)Front: 380/85R28. Rear: 460/85R38Reference
4WD Optional tires (ag)Front: 420/70R28. Rear: 520/70R38Reference
4WD Optional tires (ag)Front: 480/65R28. Rear: 600Reference
4WD Optional tires (ag)Front: 340/85R24. Rear: 460/85R30Reference
4WD Optional tires (ag)Front: 340/85R28. Rear: 460/85R34Reference
4WD Optional tires (ag)Front: 440/65R28. Rear: 540/65R38Reference
Length481 cmReference
Width201 cmReference
Height (cab)279 cmReference
2WD Weight5078 kgReference
4WD Weight5400 kgReference
Front tread145 to 216 cmReference
Challenger MT475B attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps80Reference
Charging amps120Reference
Battery CCA775Reference
Battery volts12Reference
Attachment overview
Challenger ML77B loaderReference
Challenger ML97B loaderReference
Test results
Diesel 16-speed 4WDMarch 2009 - April 2009, Link: OCED Tractor Test 2518 fileReference
PTO performanceReference
Fuel use27.6 l/hourReference
Fuel use26.1 l/hourReference
Fuel use27.3 l/hourReference
Drawbar performanceReference
Fuel use25.4 l/hourReference
Gear 3A used for power test.Reference
Max pull5400 kgReference
Gear 1C used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
