Tractor · 2002Unverified

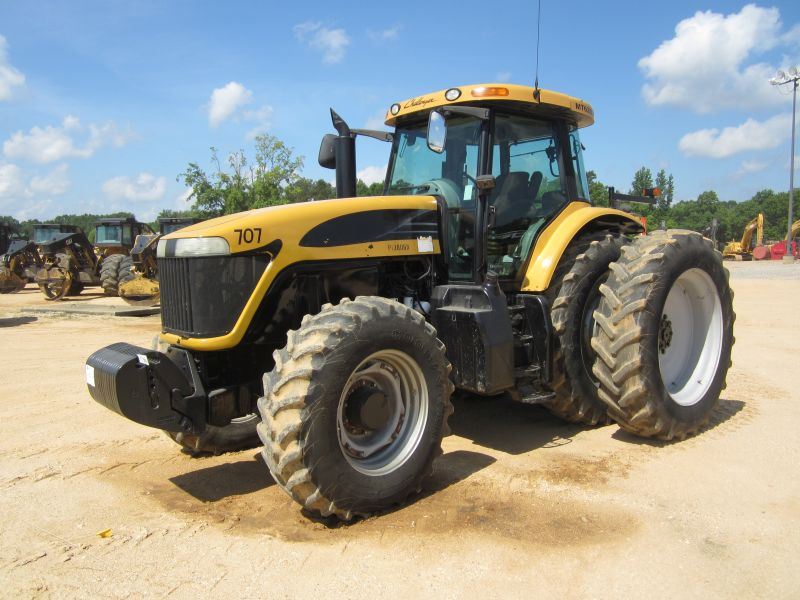

Challenger MT635
Challenger MT635 — MT600 Series · 164 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
164 hp
Max power
130.2 kW
Weight
8573 kg
Hover a source tag to verify
Overview
ManufacturerChallenger (a part of AGCO)Reference
Row-Crop tractorReference
Built in Beauvais, FranceReference
The Challenger MT635 is similar to the Massey Ferguson 8245.Reference
Four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
Sisu 7.4L 6-cyl dieselReference
Fuel tank454.2 LReference
SisuReference
turbocharged aftercooled dieselReference
6-cylinderReference
liquid-cooled verticalReference
Displacement7.4 LReference
Bore/Stroke108 x 134 mmReference
Air cleanerdual paper elementsReference
Compression16.5:1Reference
Rated RPM2200Reference
Starter volts12Reference
Max power130.2 kWReference
Power at rated engine speed122.6 kWReference
Transmission
18-speed power shiftReference
Typepower shiftReference
Gears18 forward and 6 reverseReference
Clutchelectro-hydraulic wet discReference
PTO & Hydraulics
PTO (claimed)119.3 kWReference
PTO (tested)130.2 kWReference
Typeclosed center pressure flow compensated (PFC)Reference
Pressure200.0 barReference
Valves4Reference
Total flow109.8 lpmReference
Total flow147.6 lpmReference
Rear TypeIIIReference
Rear lift (at 24"/610mm)7302 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Engine RPM540@1991Reference
Engine RPM1000@2091Reference
Power at rated PTO speed127.8 kWReference
Dimensions
Wheelbase307 cmReference
Weight8573 kgReference
Front tire14.9R30Reference
Rear tire18.4R42Reference
Ag front14.9R30Reference
Ag rear18.4R42Reference
Length515 cmReference
Width249 cmReference
Height (cab)307 cmReference
Shipping weight8573 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Test results
Diesel 18-speed 4WDSeptember 15 - 26, 2000Link: Nebraska Tractor Test 1781C fileReference
PTO performanceReference
Fuel use37.5 l/hourReference
Fuel use38.6 l/hourReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
