Tractor · 2005Unverified

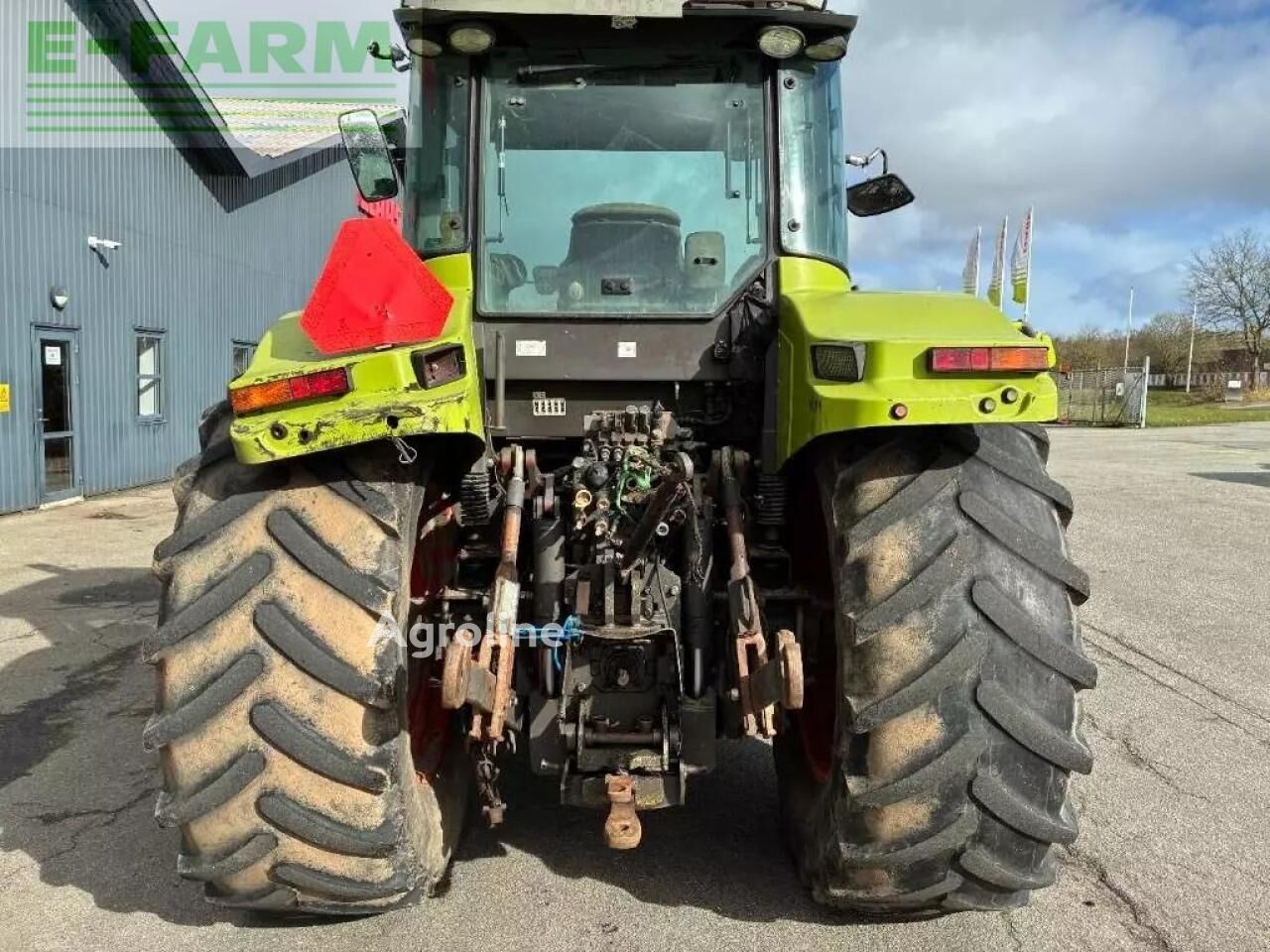

Claas Ares 697

Name: Claas Ares 697
Brand: Claas

Claas Ares 697 — Ares 600 Series · 138 hp. Reference specifications; pending source verification.

The Claas Ares 697 is a tractor rated at 138 hp, positioning it within the higher-powered category of its class. Manufactured between 2005 and 2007, this model features a 6-cylinder turbocharged diesel liquid-cooled engine, which is connected to a four-wheel drive system with a 24-speed gearbox. The listed weight is 5630 kg, and it is intended for use on areas of approximately 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

138 hp

Weight

5630 kg

Catalogue coverage

Variants represented

Richest spec table

45 rows

Recorded power

138 hp

Recorded weight

5630 kg

Transmissions

24-speed power shuttle

Production years

2005-2007

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerClaasReference

Row-Crop tractorReference

Four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Claas ATZ cab with air-conditioning and suspension.Reference

Engine

John Deere 6.8L 6-cyl dieselReference

Fuel tank249.8 LReference

Engine (net)103.0 kWReference

John Deere DPS 6068Reference

turbocharged dieselReference

6-cylinderReference

liquid-cooledReference

Displacement6.8 LReference

Bore/Stroke106 x 127 mmReference

Rated Power (net)103.0 kWReference

Maximum Power (net)109.6 kWReference

Rated RPM2200Reference

Torque588.1 NmReference

Torque RPM1500Reference

StarterelectricReference

Starter volts12Reference

Transmission

24-speed power shuttleReference

Typepower shuttleReference

Gears24 forward and reverseReference

PTO & Hydraulics

Typeopen centerReference

TypePFCReference

Pressure200.0 barReference

Pump flow60.0 lpmReference

Pump flow99.9 lpmReference

Pump flow110.1 lpmReference

Rear PTOindependentReference

Clutchwet discReference

Rear PTO Type540/1000Reference

Dimensions

Wheelbase281 cmReference

Weight5630 kgReference

Front tire14.9R28Reference

Rear tire20.8R38Reference

Standard tires (ag)Front: 14.9R28. Rear: 20.8R38Reference

Length516 cmReference

Height300 cmReference

Max weight9249 kgReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
