Tractor · 1968Unverified

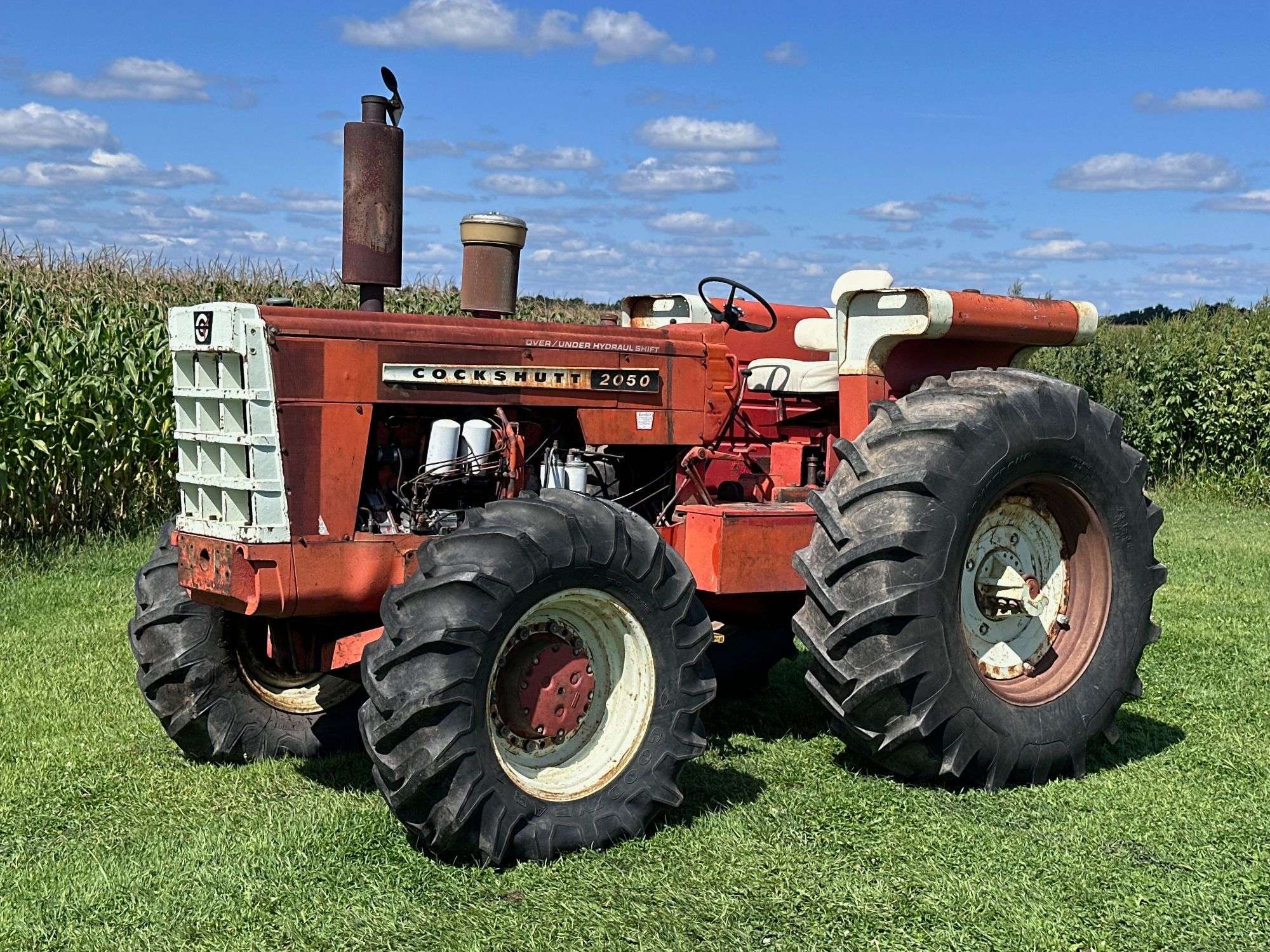

Cockshutt 2050
Cockshutt 2050 — Row-Crop tractor · 119 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
119 hp
Max power
71.9 kW
Weight
6595 kg
Hover a source tag to verify
Overview
ManufacturerCockshutt (a part of White)Reference
Row-Crop tractorReference
Built in Charles City, Iowa, USAReference
Total built383Reference
Original price was $12,000 in 1969Reference
Two- or four-wheel driveReference
Final drivesplanetaryReference
Power steeringReference
Independent disc brakesReference
Open operator station. Cab optional with air-conditioning.Reference
Engine
Oliver-Hercules 7.8L 6-cyl dieselReference
Fuel tank104.1 LReference
Fuel tank295.2 LReference
Drawbar (tested)71.9 kWReference
Oliver-HerculesReference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement7.8 LReference
Bore/Stroke116 x 124 mmReference
Air cleanerdryReference
Compression18.0:1Reference
Rated RPM2400Reference
Firing order1-5-3-6-2-4Reference
Starter volts12Reference
Oil capacity18.0 LReference
Coolant capacity26.5 LReference
Power at rated engine speed88.6 kWReference
Max power71.9 kWReference
Transmission
6-speed unsynchronized gearReference
18-speed partial powershiftReference
Typeunsynchronized gearReference
Gears6 forward and 2 reverseReference
Clutch330mm cerametallic discReference
TransmissionHydraul-ShiftReference
Typepartial powershiftReference
Gears18 forward and 6 reverseReference
Oliver Hydraul-Shift provides a clutchless, on-the-move shift to an over- and under-drive for each of six forward gears.Reference
PTO & Hydraulics
PTO (claimed)88.0 kWReference
PTO (tested)88.6 kWReference
Typeopen centerReference
Pressure141.3 barReference
Valves2 to 4Reference
Pump flow34.1 lpmReference
Rear TypeIIIReference
Controlposition and draft controlReference
Rear lift (at 24"/610mm)2721 kgReference
Rear PTOindependentReference
Rear PTO Type1000Reference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase248 cmReference
Weight6595 kgReference
Front tire11.00-16Reference
Rear tire18.4-38Reference
Ag front11.00-16Reference
Ag rear18.4-38Reference
Ag rear23.1-34Reference
Ag rear24.5-32Reference
Length412 cmReference
Height (steering wheel)217 cmReference
Operating weight6595 kgReference
Ballasted weight8568 kgReference
Ground clearance48 cmReference
2WD Front tread152 to 203 cmReference
4WD Front tread167/179/203 cmReference
2WD Rear tread154 to 231 cmReference
4WD Rear tread156 to 283 cmReference
2050 Serial Numbers
1968204444Reference
1969212560Reference
Final213932Reference
FAQ: How to read a serial number table.Reference
Test results
Diesel 18-speed 2WDSeptember 23 - October 7, 1968Link: Nebraska Tractor Test 987 fileReference
PTO performanceReference
Fuel use28.4 l/hourReference
Drawbar performanceReference
Fuel use28.8 l/hourReference
Gear 4-under used for power test.Reference
Max pull5997 kgReference
Gear 1-over used for pull test.Reference
Speeds
With 18.4-38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
