Tractor · 1968Unverified

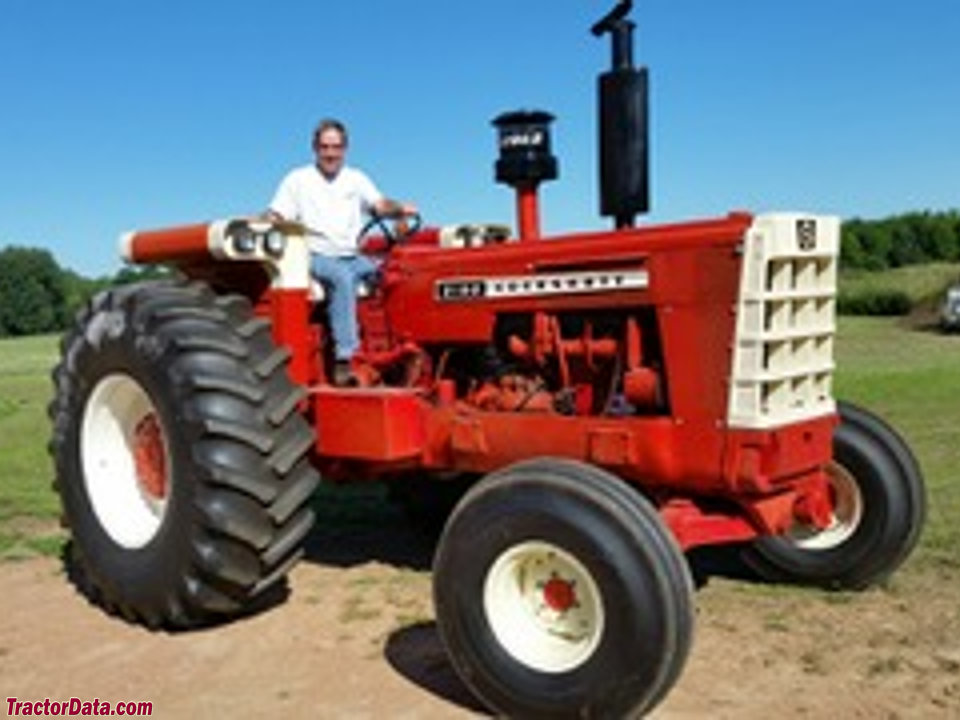

Cockshutt 2150
Cockshutt 2150 — Row-Crop tractor · 131 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
131 hp
Max power
81.7 kW
Weight
5892 kg
Hover a source tag to verify
Overview
ManufacturerCockshutt (a part of White)Reference
Row-Crop tractorReference
Built in Charles City, Iowa, USAReference
Original price$13,800 (1969)Reference
Two- or four-wheel driveReference
Final drivesplanetaryReference
Power steeringReference
Independent dry disc brakesReference
Open operator station. Cab optional with air-conditioning.Reference
Engine
Oliver-Hercules 7.8L 6-cyl dieselReference
Fuel tank104.1 LReference
Fuel tank295.2 LReference
Drawbar (tested)81.7 kWReference
Oliver-HerculesReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement7.8 LReference
Bore/Stroke116 x 124 mmReference
Air cleanerdual dry typeReference
Compression18.0:1Reference
Rated RPM2400Reference
Firing order1-5-3-6-2-4Reference
Starter volts12Reference
Oil capacity18.0 LReference
Coolant capacity26.5 LReference
Power at rated engine speed98.0 kWReference
Max power81.7 kWReference
Transmission
6-speed unsynchronized gearReference
18-speed partial powershiftReference
Typeunsynchronized gearReference
Gears6 forward and 2 reverseReference
Clutch355.6mm cerametallic discReference
TransmissionHydraul-ShiftReference
Typepartial powershiftReference
Gears18 forward and 6 reverseReference
Oliver Hydraul-Shift provides a clutchless, on-the-move shift to an over- and under-drive for each of six forward gears.Reference
PTO & Hydraulics
PTO (claimed)97.7 kWReference
PTO (tested)98.0 kWReference
Typeopen centerReference
Pressure141.3 barReference
Valves2 to 4Reference
Pump flow34.1 lpmReference
Rear TypeIIIReference
Controlposition and draft controlReference
Rear lift (at 24"/610mm)2721 kgReference
Rear PTOindependentReference
Rear PTO Type1000Reference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase248 cmReference
Weight5892 kgReference
Front tire11.00-16Reference
Rear tire18.4-38Reference
Ag front11.00-16Reference
Ag rear18.4-38Reference
Ag rear23.1-34Reference
Ag rear24.5-32Reference
Length412 cmReference
Height (steering wheel)217 cmReference
Operating weight5892 kgReference
Ballasted weight9582 kgReference
Ground clearance48 cmReference
2WD Front tread152 to 203 cmReference
4WD Front tread167/179/203 cmReference
2WD Rear tread154 to 231 cmReference
4WD Rear tread156 to 283 cmReference
2150 Serial Numbers
1968204480Reference
1969212554Reference
Final216595Reference
FAQ: How to read a serial number table.Reference
Test results
Diesel 18-speed 2WDSeptember 27 - October 7, 1968Link: Nebraska Tractor Test 986 fileReference
PTO performanceReference
Fuel use32.6 l/hourReference
Drawbar performanceReference
Gear 4-under used for power test.Reference
Max pull7488 kgReference
Gear 1-Over used for pull test.Reference
Speeds
With 18.4-38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
