Tractor · 1935Unverified

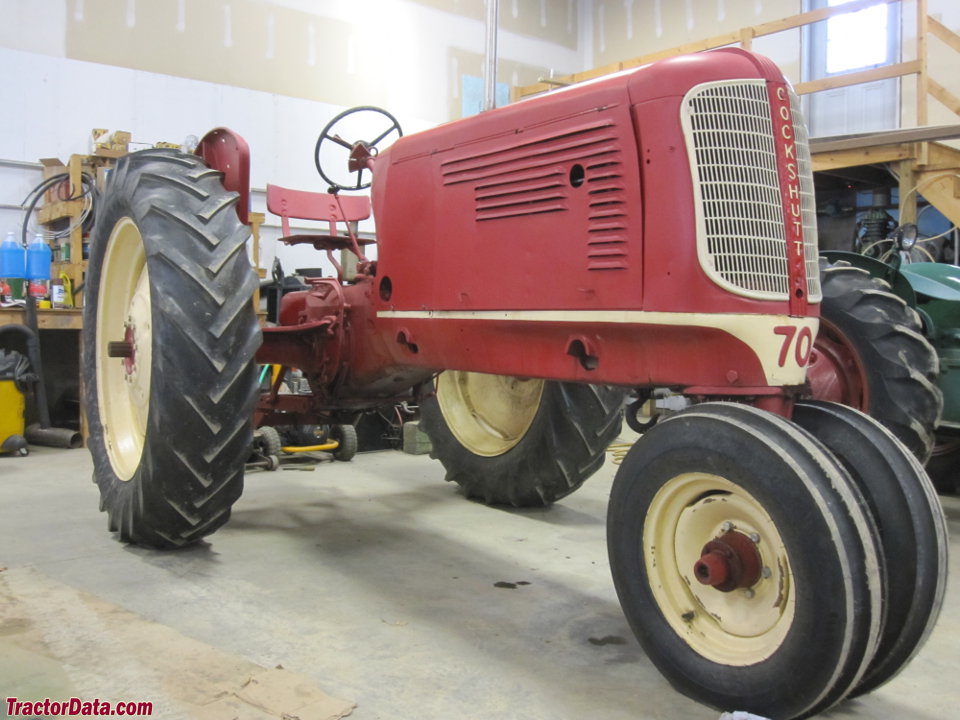

Cockshutt 70
Cockshutt 70 — Row-Crop tractor · 30 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
30 hp
Max power
16.4 kW
Weight
1995 kg
Hover a source tag to verify
Overview
DistributorCockshuttReference
ManufacturerOliverReference
Row-Crop tractorReference
Built in Charles City, Iowa, USAReference
Two-wheel driveReference
Manual steeringReference
Open operator station.Reference
Engine
Oliver 3.3L 6-cyl gasolineReference
Oliver 3.3L 6-cyl distillateReference
Fuel tank60.6 LReference
Drawbar (claimed)16.9 kWReference
Drawbar (tested)21.3 kWReference
Belt (tested)23.5 kWReference
OliverReference
gasolineReference
6-cylinderReference
liquid-cooledReference
Displacement3.3 LReference
Bore/Stroke79 x 111 mmReference
Rated RPM1500Reference
Firing order1-5-3-6-2-4Reference
Coolant capacity4.3 LReference
distillateReference
Belt power (max)21.2 kWReference
Max power16.4 kWReference
Belt power (max)20.2 kWReference
Max power15.3 kWReference
Belt power (max)23.5 kWReference
Max power21.3 kWReference
Transmission
4-speedReference
6-speedReference
Gears4 forward and 1 reverseReference
Gears6 forward and 1 reverseReference
PTO & Hydraulics
PTO (claimed)22.6 kWReference
Dimensions
Wheelbase231 cmReference
Weight1995 kgReference
Front tire5.50-16Reference
Rear tire11-38Reference
Ag front5.50-16Reference
Ag rear11-38Reference
Test results
NTTL 252: gasoline 4-speed 2WDReference
NTTL 267: distillate 4-speed 2WDReference
NTTL 351: gasoline 6-speed 2WDReference
Gasoline 4-speed 2WDApril 13 - 24, 1936Link: Nebraska Tractor Test 252 fileReference
Belt fuel use (max)10.2 l/hourReference
Drawbar performanceReference
Gear 3 used for power test.Reference
Max pull1415 kgReference
Gear 1 used for pull test.Reference
Distillate 4-speed 2WDApril 20 - 31, 1936Link: Nebraska Tractor Test 267 fileReference
Belt fuel use (max)12.5 l/hourReference
Max pull1144 kgReference
Gasoline 6-speed 2WDAugust 23 - 29, 1940Link: Nebraska Tractor Test 351 fileReference
Belt fuel use (max)11.4 l/hourReference
Max pull1891 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
