Tractor · 1937Unverified
Cockshutt 80

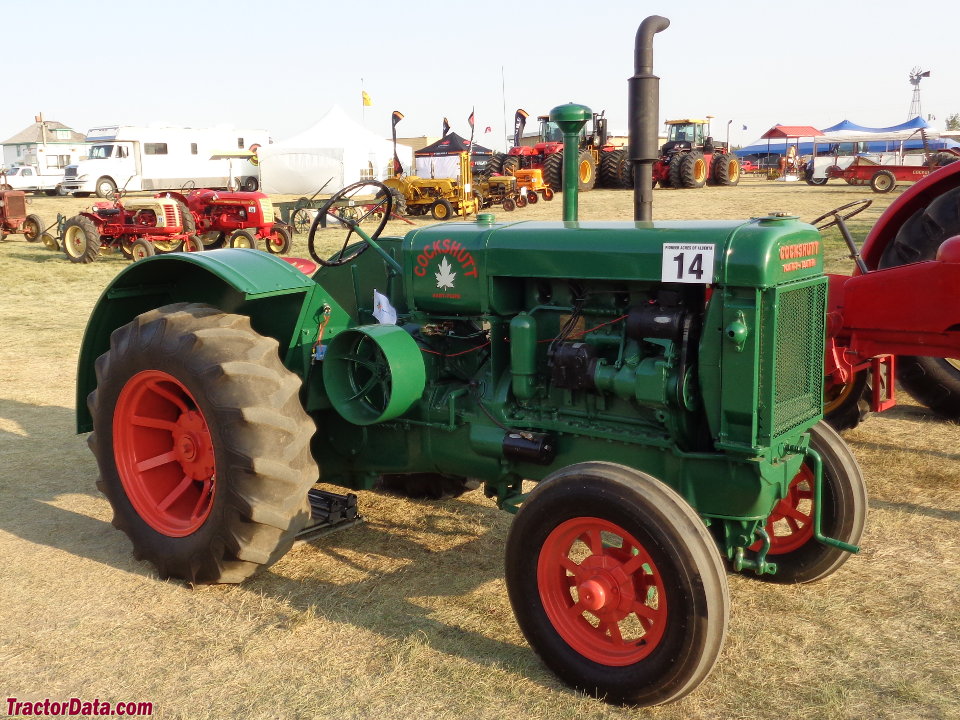

Cockshutt 80 — Row-Crop tractor · 30 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
30 hp
Max power
22.3 kW
Weight
2177 kg
Hover a source tag to verify
Overview
DistributorCockshuttReference
ManufacturerOliverReference
Row-Crop tractorReference
Built in Charles City, Iowa, USAReference
Two-wheel driveReference
SteeringmanualReference
Open operator station.Reference
Variants
Row-crop 80tricycle-frontReference
Standard 80fixed-treadReference
Engine
Waukesha-Oliver 5.5L 4-cyl keroseneReference
Waukesha-Oliver 4.9L 4-cyl gasolineReference
Fuel tank49.2 LReference
Fuel tank64.3 LReference
Plows3Reference
Drawbar (tested)22.3 kWReference
Belt (tested)28.9 kWReference
Waukesha-OliverReference
keroseneReference
4-cylinderReference
liquid-cooledReference
Displacement5.5 LReference
Bore/Stroke114 x 133 mmReference
Air cleaneroil bathReference
Rated RPM1200Reference
Starter typehand-crankReference
gasolineReference
Displacement4.9 LReference
Bore/Stroke108 x 133 mmReference
Belt power (max)28.9 kWReference
Max power22.3 kWReference
Transmission
3-speed gearReference
4-speed gearReference
TypegearReference
Gears3 forward and 1 reverseReference
Clutchdry discReference
Gears4 forward and 1 reverseReference
The four-speed transmission was added to the Row-Crop 80 in 1939.Reference
Dimensions
Weight2177 kgReference
Rear tire11.25-40Reference
Ag rear11.25-40Reference
Ag rear11.25-42Reference
Front tread13 to 0 cmReference
Rear tread152 to 182 cmReference
80 Serial Number Location
Serial number plate on the right side of the Cockshutt 80, affixed to the tractor's engine above the magneto.Reference
80 Serial Numbers
1937109152Reference
1938109167Reference
1939109783Reference
1940110221Reference
1941110615Reference
1942110945Reference
1943111219Reference
1944111391Reference
1945111929Reference
1946112879Reference
1947114144Reference
1948114944Reference
FAQ: How to read a serial number table.Reference
Test results
Kerosene 3-speed 2WDMay 16 - 26, 1938Link: Nebraska Tractor Test 300 fileReference
Belt fuel use (max)18.9 l/hourReference
Drawbar performanceReference
Gear 2 used for power test.Reference
Max pull1716 kgReference
Gear 1 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
