Tractor · 1954Unverified

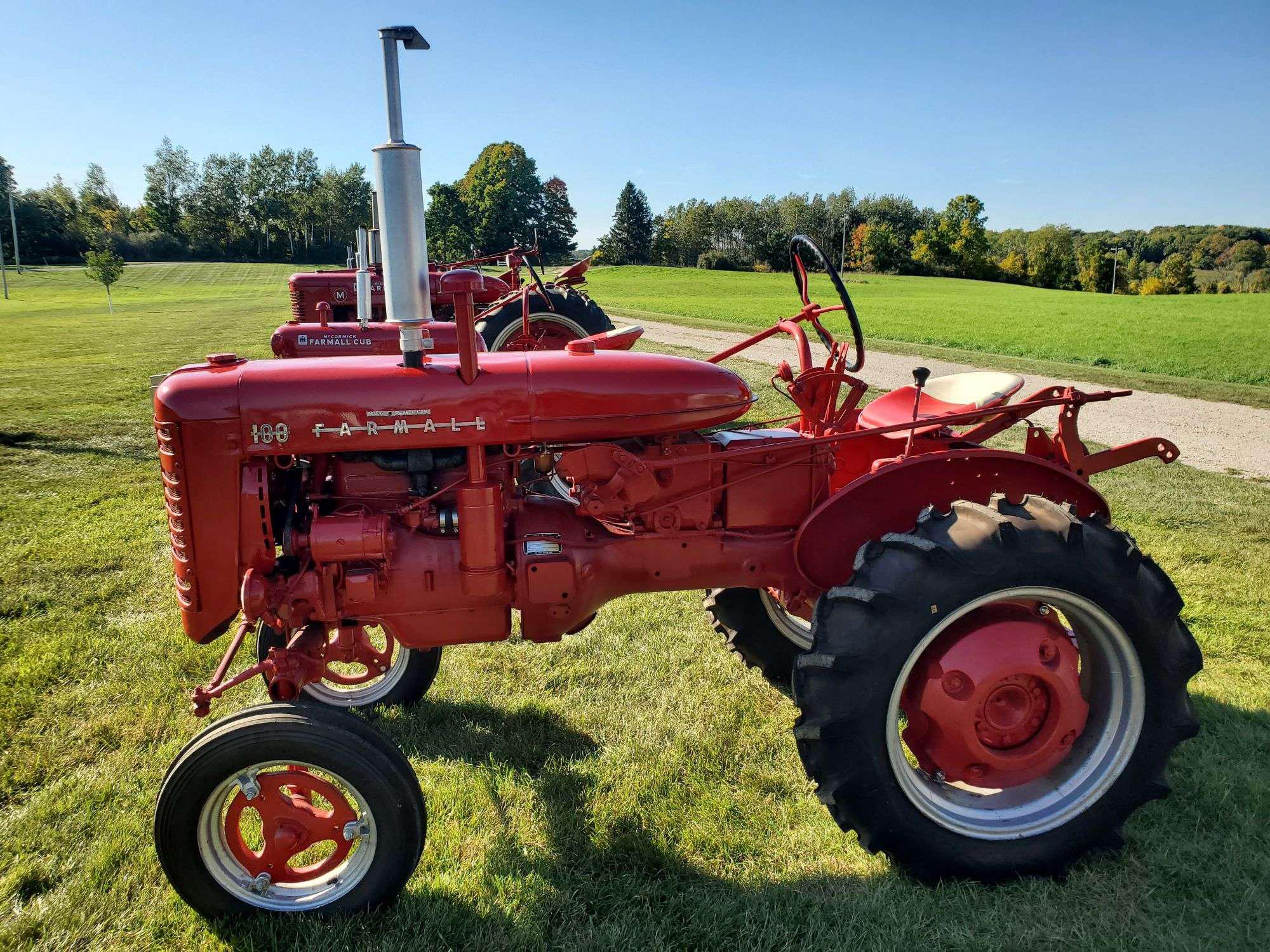

Farmall 100
Farmall 100 — Row-Crop tractor · 18 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
18 hp
Max power
13.3 kW
Weight
2600 to 3000 pounds
Hover a source tag to verify
Overview
ManufacturerFarmall (a part of International Harvester)Reference
Row-Crop tractorReference
Built in Louisville, Kentucky, USAReference
Total built16,191Reference
Two-wheel driveReference
Manual steeringReference
Contracting band brakesReference
Open operator station.Reference
Variants
IH 100utility tractorReference
Farmall 100row-crop tractorReference
100HCHigh ClearanceReference
Engine
International Harvester 2.0L 4-cyl gasolineReference
Fuel tank41.6 LReference
Plows1Reference
Drawbar (tested)13.3 kWReference
Belt (tested)15.0 kWReference
International Harvester C-123Reference
gasolineReference
4-cylinderReference
liquid-cooled inlineReference
Displacement2.0 LReference
Bore/Stroke79 x 102 mmReference
Air cleaneroil bathReference
Compression6.5:1Reference
Rated RPM1400Reference
Idle RPM900-1400Reference
Firing order1-3-4-2Reference
Starter volts6Reference
Oil capacity4.7 LReference
Belt power (max)15.0 kWReference
Max power13.3 kWReference
Transmission
4-speed gearReference
TypegearReference
Gears4 forward and 1 reverseReference
PTO & Hydraulics
Typeopen centerReference
TypeIH Fast HitchReference
Rear PTO Type540Reference
Engine RPM541@1400Reference
Dimensions
Wheelbase180 cmReference
Weight2600 to 3000 poundsReference
Front tire5.00-15Reference
Rear tire9-24Reference
Ag front5.00-15Reference
Ag rear9-24Reference
Length271 cmReference
Width142 cmReference
Height (steering wheel)166 cmReference
Clearance (rear axle)54 cmReference
Front tread111 to 162 cmReference
Rear tread101 to 172 cmReference
Shipping1179 kgReference
Operating1360 kgReference
Ballasted1965 kgReference
Farmall 100 attachments
front-end loaderReference
100 Serial Numbers
1954501Reference
19551720Reference
195612895Reference
Final18940Reference
FAQ: How to read a serial number table.Reference
Capacities
Diameter21 cmReference
Width15 cmReference
RPM1157Reference
Speed784.56 meters/minReference
Test results
Gasoline 4-speed 2WDApril 18 - 29, 1955Link: Nebraska Tractor Test 537 fileReference
Belt fuel use (max)7.9 l/hourReference
Drawbar performanceReference
Gear 2 used for power test.Reference
Max pull1135 kgReference
Gear 1 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
