Tractor · 1954Unverified

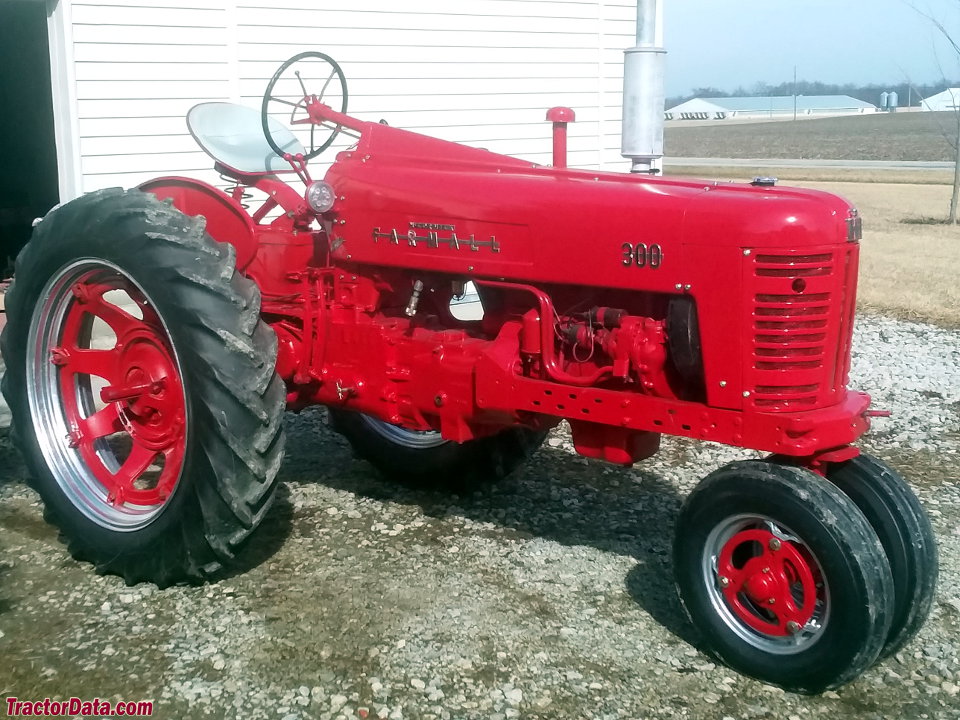

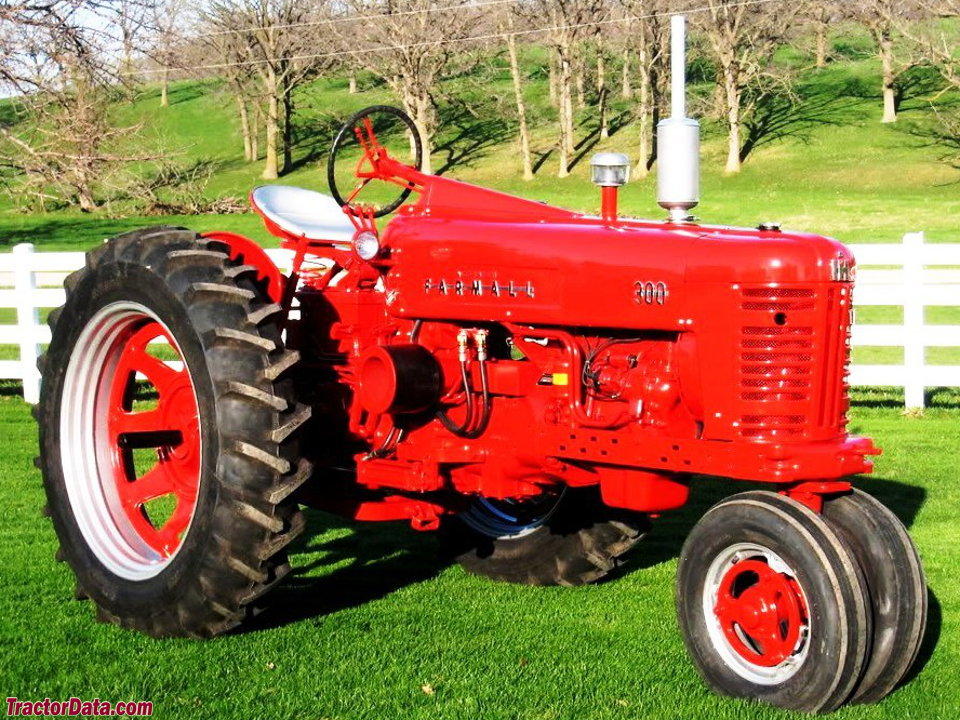

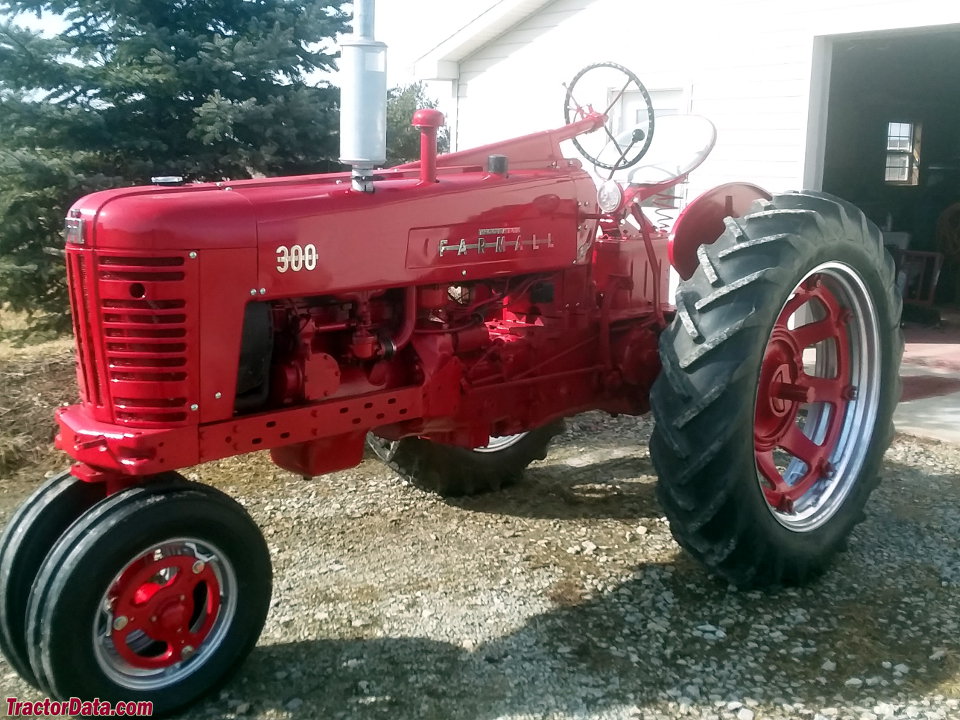

Farmall 300
Farmall 300 — Row-Crop tractor · 35 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
35 hp
Max power
25.2 kW
Weight
2431 kg
Hover a source tag to verify
Overview
ManufacturerFarmall (a part of International Harvester)Reference
Row-Crop tractorReference
Built in Rock Island, Illinois, USAReference
Total built29,077Reference
Total built170 (High-Clearance)Reference
Original price was $2,900 in 1956Reference
Two-wheel driveReference
Final drivesbull gearReference
Manual steeringReference
Mechanical disc brakesReference
Open operator station.Reference
Variants
IH 300utility tractorReference

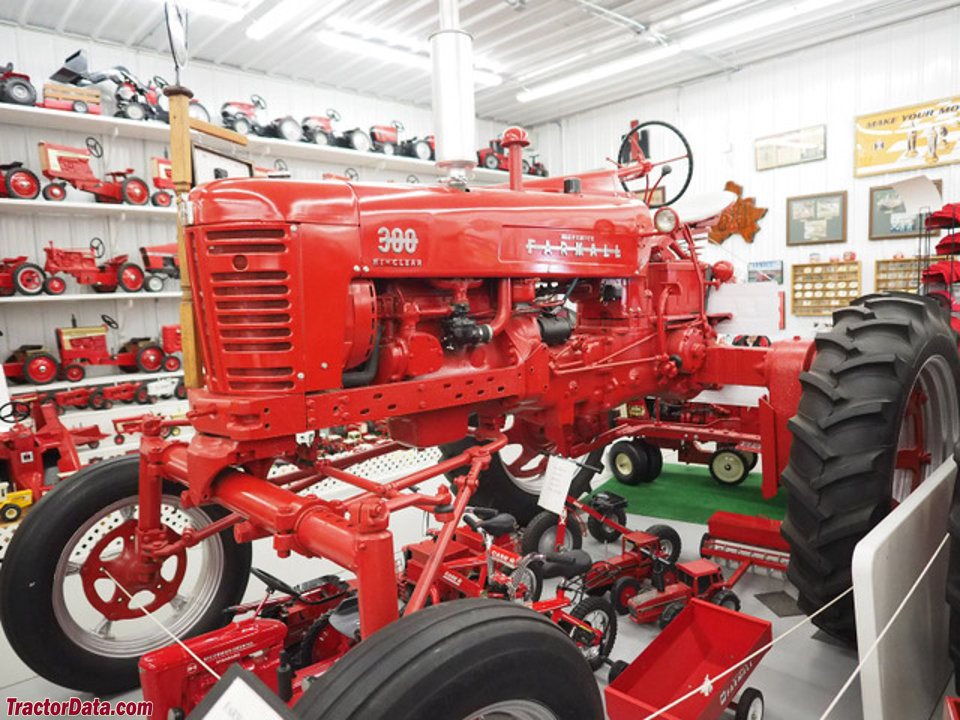

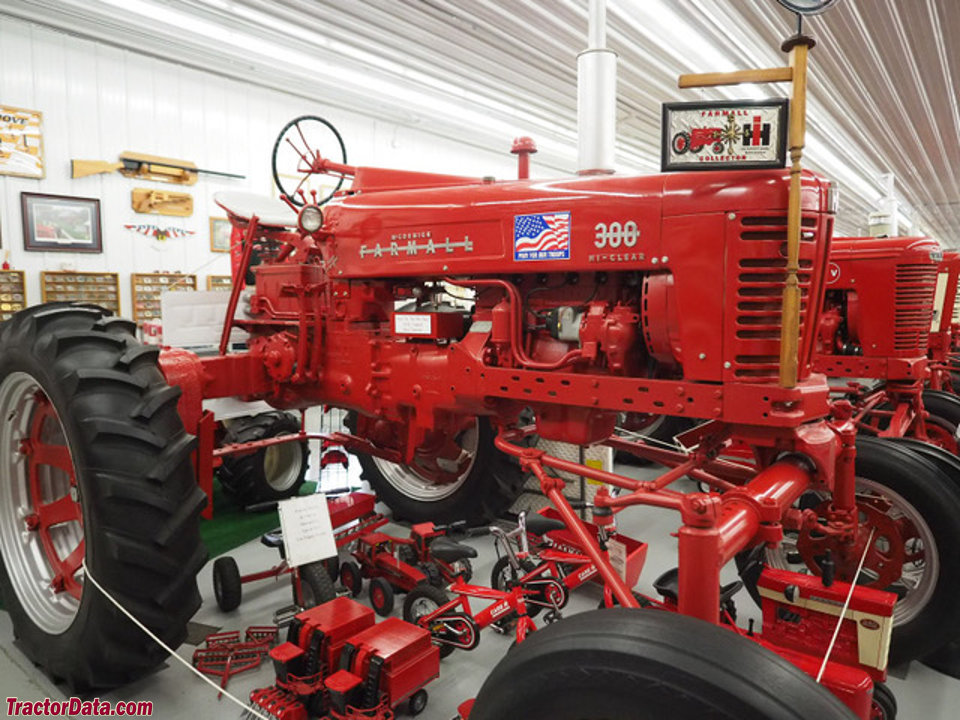

Farmall 300 High-Clearancehigh-crop tractorReference
Engine
International Harvester 2.8L 4-cyl gasolineReference
Fuel tank64.3 LReference
Plows3Reference
Drawbar (tested)26.4 kWReference
Belt (tested)28.6 kWReference
International Harvester C169Reference
gasolineReference
4-cylinderReference
liquid-cooledReference
Displacement2.8 LReference
Bore/Stroke90 x 108 mmReference
Air cleaneroil bathReference
Compression6.6:1Reference
Rated RPM1750Reference
Idle RPM900-1750Reference
Starter volts6Reference
Coolant capacity15.6 LReference
Belt power (max)28.5 kWReference
Max power25.2 kWReference
Belt power (max)28.6 kWReference
Max power26.4 kWReference
Transmission
5-speed sliding gearReference
10-speed two-speed power shiftReference
Typesliding gearReference
Gears5 forward and 1 reverseReference
TransmissionTorque AmplifierReference
Typetwo-speed power shiftReference
Gears10 forward and 2 reverseReference
PTO & Hydraulics
Typeopen centerReference
Valves1 to 3Reference
TypeIH Fast HitchReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase234 cmReference
Wheelbase243 cmReference
Weight2431 kgReference
Front tire5.50-16Reference
Rear tire11-38Reference
Ag front5.50-16Reference
Ag rear11-38Reference
Ag front6.00-16Reference
Ag front7.50-16Reference
Ag rear10-38Reference
Ag rear12-38Reference
Ag rear13-38Reference
Length345 cmReference
Length355 cmReference
Width254 cmReference
Height (steering wheel)196 cmReference
Height (steering wheel)223 cmReference
Clearance (rear axle)64 cmReference
Bar rear axle69 mmReference
Front tread144 to 227 cmReference
Rear tread121 to 223 cmReference
Rear tread121 to 254 cmReference
Farmall 300 attachments
front-end loaderReference
300 Serial Numbers
Location:Serial number on the left side of the clutch housing.Reference
1954501Reference
19551779Reference
195623224Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundpositiveReference
Battery volts6Reference
Attachment overview
International Harvester 31 loaderReference
International 33A loaderReference
Test results
NTTL 538: gasoline 2WDReference
NTTL 573: LP-gas TA 2WDReference
Gasoline 2WDApril 29 - May 2, 1955Link: Nebraska Tractor Test 538 fileReference
Belt fuel use (max)12.9 l/hourReference
Drawbar performanceReference
Gear 2 used for power test.Reference
Max pull2562 kgReference
Gear 1-TA used for pull test.Reference
LP-gas TA 2WDMay 9 - June 4, 1956Link: Nebraska Tractor Test 573 fileReference
Belt fuel use (max)16.7 l/hourReference
Gear 3 used for power test.Reference
Max pull2529 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
