Tractor · 1948Unverified

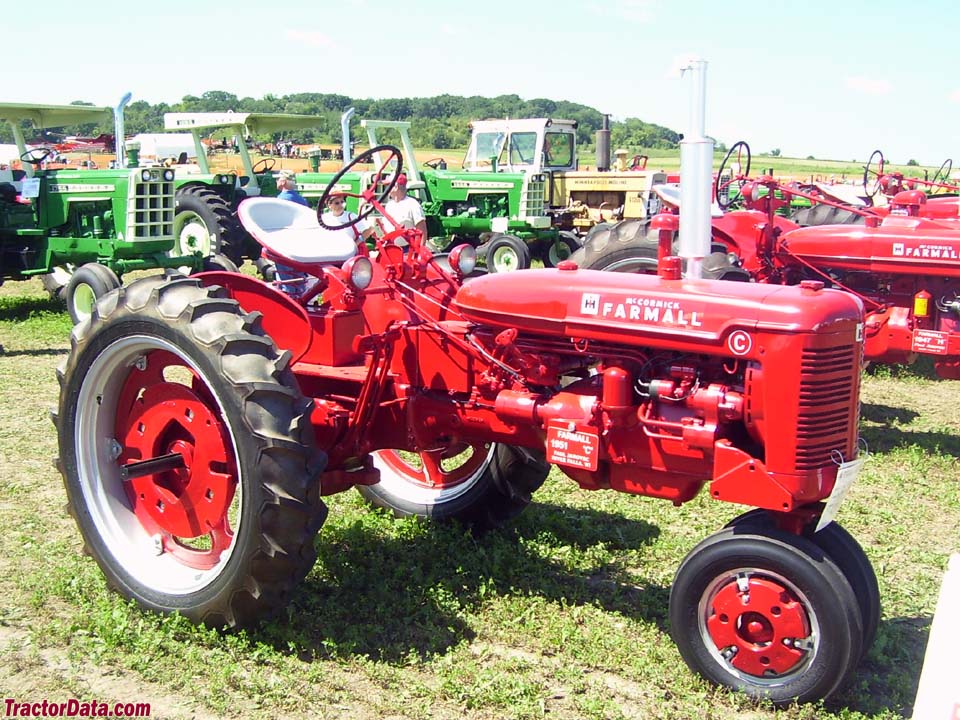

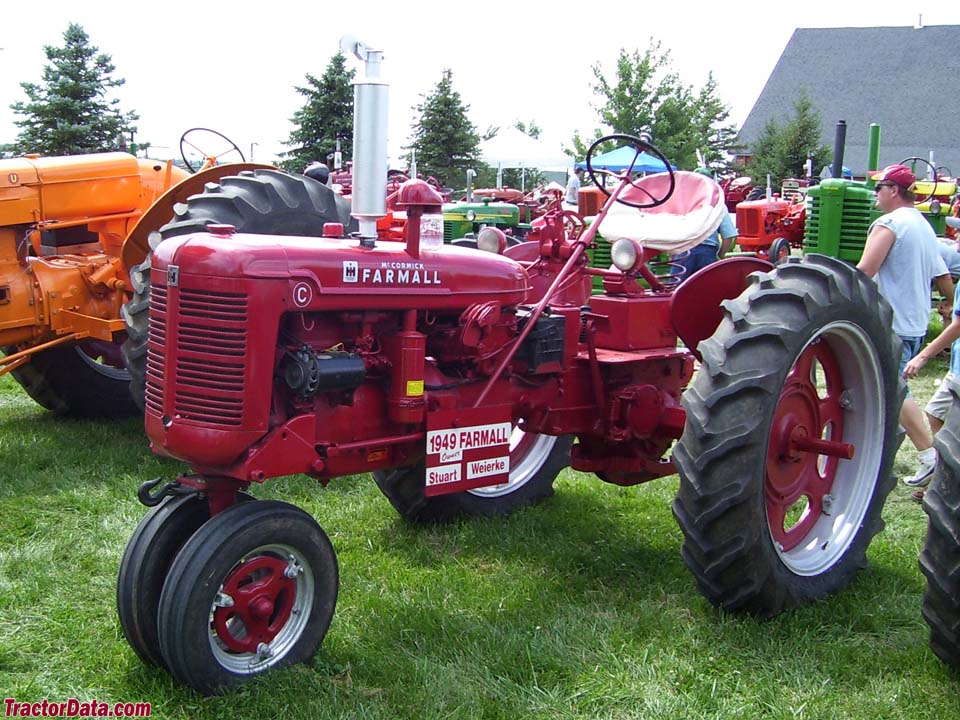

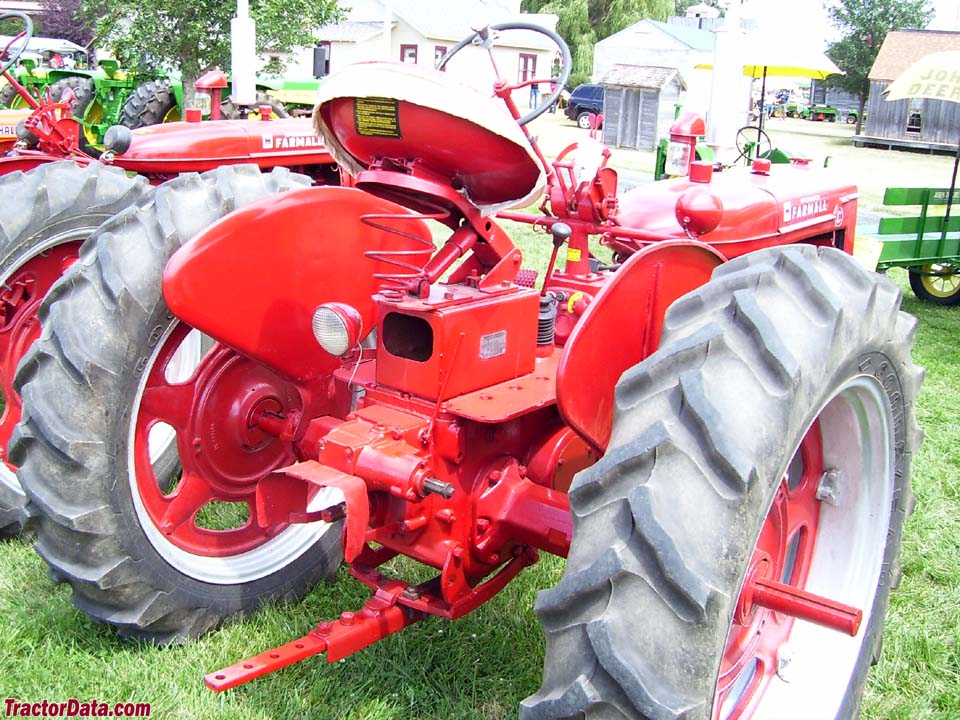

Farmall C

Farmall C — Row-Crop tractor · 19 hp. Reference specifications; pending source verification.

The Farmall C is a tractor with a rated power output of 19 hp, which positions it at the lighter end of its class. Production of this model occurred from 1948 to 1951. It features a 4-cylinder petrol liquid-cooled engine, paired with two-wheel drive and a 4-speed gearbox. The tractor has an operating weight of 1290 kg, and is suitable for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power
19 hp
Max power
13.8 kW
Weight
1290 kg

Catalogue coverage

Variants represented
2
Richest spec table
61 rows
Recorded power
19 hp
Recorded weight
1290 kg
Transmissions
4-speed sliding gear
Production years
1948-1951
Verified variants
0

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerFarmall (a part of International Harvester)Reference
Row-Crop tractorReference
Built in Rock Island, Illinois, USAReference
Total built79,932Reference
Original price$1,500Reference
Two-wheel driveReference
Manual steeringReference
Manual contracting band brakesReference
Open operator station.Reference

Engine

International Harvester 1.9L 4-cyl gasolineReference
Fuel tank41.6 LReference
Drawbar (tested)13.8 kWReference
Belt (tested)15.7 kWReference
International Harvester C113Reference
gasolineReference
4-cylinderReference
liquid-cooled vertical I-headReference
Displacement1.9 LReference
Bore/Stroke76 x 102 mmReference
Air cleaneroil bathReference
Compression5.33:1Reference
Rated RPM1650Reference
Idle RPM525-1850Reference
Firing order1-3-4-2Reference
Oil capacity4.7 LReference
Sparkplug gap0.635 mmReference
Point gap0.508 mmReference
Intake valve clearance0.356 mmReference
Exhaust valve clearance0.356 mmReference
Belt power (max)15.7 kWReference
Max power13.8 kWReference

Transmission

4-speed sliding gearReference
Typesliding gearReference
Gears4 forward and 1 reverseReference
Clutchdry discReference

PTO & Hydraulics

Rear PTO Type540Reference
Engine RPM540@1650Reference

Dimensions

Wheelbase207 cmReference
Weight1290 kgReference
Front tire4.00-15Reference
Rear tire9-36Reference
Ag front4.00-15Reference
Ag rear9-36Reference
Ag rear7-36Reference
Ag rear8-36Reference
Ag rear10-36Reference
Length305 cmReference
Height (steering wheel)178 cmReference
Operating weight1290 kgReference

C Serial Number Location

Seat support, left sideReference

C Serial Numbers

1948FC501Reference
1949FC22624Reference
1950FC47010Reference
1951FC71880Reference
FAQ: How to read a serial number table.Reference

Test results

Gasoline 4-speed 2WDJune 7 - 16, 1948Link: Nebraska Tractor Test 395 fileReference
Belt fuel use (max)7.2 l/hourReference
Drawbar performanceReference
Gear 2 used for power test.Reference
Max pull1316 kgReference
Gear 1 used for pull test.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
