Tractor · 2003Unverified

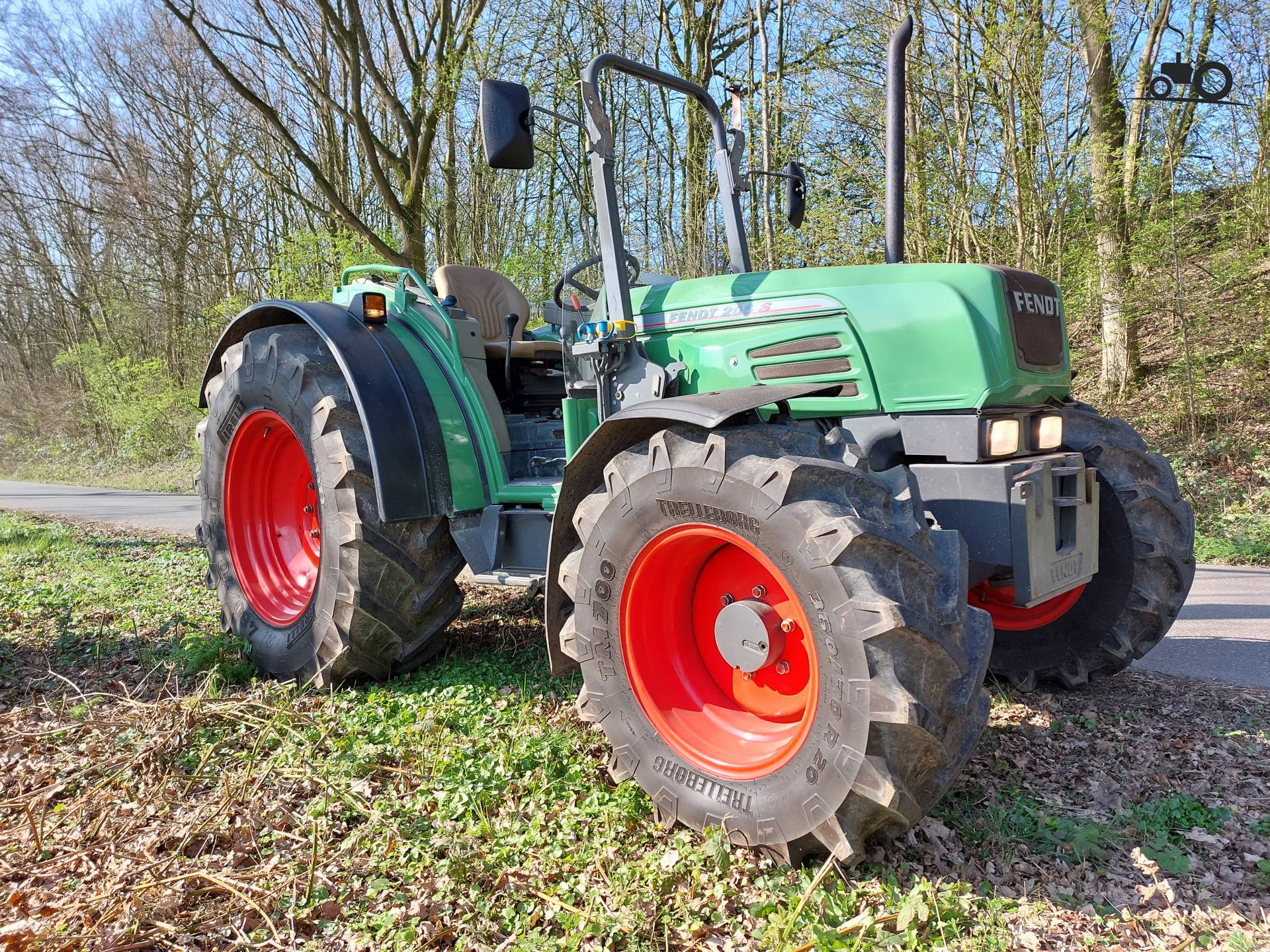

Fendt 206

Name: Fendt 206
Brand: Fendt

Fendt 206 — Farmer 200 Series · 64 hp. Reference specifications; pending source verification.

The Fendt 206 is a compact tractor model, rated at 64 hp, which was manufactured from 2003 to 2009. It features a 3-cylinder turbocharged diesel air-cooled engine, linked to a four-wheel drive system and a 21-speed gearbox. The tractor weighs approximately 2930 kg, and is designed for use on plots of around 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

64 hp

Weight

2930 kg

Catalogue coverage

Variants represented

Richest spec table

70 rows

Recorded power

64 hp

Recorded weight

2930 kg

Transmissions

21-speed synchromesh

Production years

2003-2009

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerFendt (a part of AGCO)Reference

Utility tractorReference

Four-wheel driveReference

Power steeringReference

Hydraulic disc brakesReference

Cab standard with available heat and air-conditioning.Reference

Variants

206SutilityReference

206Vultra-narrowReference

206FnarrowReference

Engine

Deutz 3.2L 3-cyl dieselReference

Fuel tank60.2 LReference

Engine (gross)48.0 kWReference

Engine (net)44.0 kWReference

DeutzReference

turbocharged dieselReference

3-cylinderReference

air-cooledReference

Displacement3.2 LReference

Bore/Stroke102 x 132 mmReference

Rated Power (net)44.0 kWReference

Rated Power (gross)48.0 kWReference

Rated RPM2300Reference

Torque239.1 NmReference

Torque RPM1500Reference

StarterelectricReference

Starter volts12Reference

Transmission

21-speed synchromeshReference

21-speed shuttleReference

TypesynchromeshReference

Gears21 forward and 6 reverseReference

Three gears (1-3), plus reverse (R), in two ranges (low/high) with three-speed splitter (L/M/S). Additional three overdrive gears (25/30/40).Reference

TypeshuttleReference

Gears21 forward and reverseReference

Three gears (1-3) in two ranges (low/high) with three-speed splitter (L/M/S). Additional three overdrive gears (25/30/40) and mechanical shuttle.Reference

PTO & Hydraulics

Typeopen centerReference

Pressure200.0 barReference

Valves2 or 3Reference

Pump flow46.9 lpmReference

Pump flow74.2 lpmReference

Rear Type2Reference

Front HitchoptionalReference

Rear PTOindependentReference

Rear PTO Type540/750/1000Reference

Rear PTO Type540/750/groundReference

Front PTOindependentReference

Front PTO Type540Reference

Front PTO Type1000Reference

Dimensions

Wheelbase210 cmReference

Weight2930 kgReference

Front tire335/80R18Reference

Rear tire16.9R28Reference

Standard tires (ag)Front: 335/80R18. Rear: 16.9R28Reference

Optional tires (ag)Front: 311.2R20. Rear: 380/85R30Reference

Optional tires (ag)Front: 405/70R20. Rear: 16.9R30Reference

Optional tires (ag)Front: 405/70R20. Rear: 420/85R30Reference

Optional tires (ag)Front: 405/70R20. Rear: 480/70R30Reference

Optional tires (ag)Front: 420/65R20. Rear: 480/70R30Reference

Optional tires (ag)Front: 420/65R20. Rear: 540/65R30Reference

Length356 cmReference

Width192 cmReference

Height247 cmReference

Max weight5299 kgReference

Front tread149 cmReference

Rear tread150 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps95Reference

Charging volts14Reference

Battery volts12Reference

Battery AH88Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
