Tractor · 1993Unverified

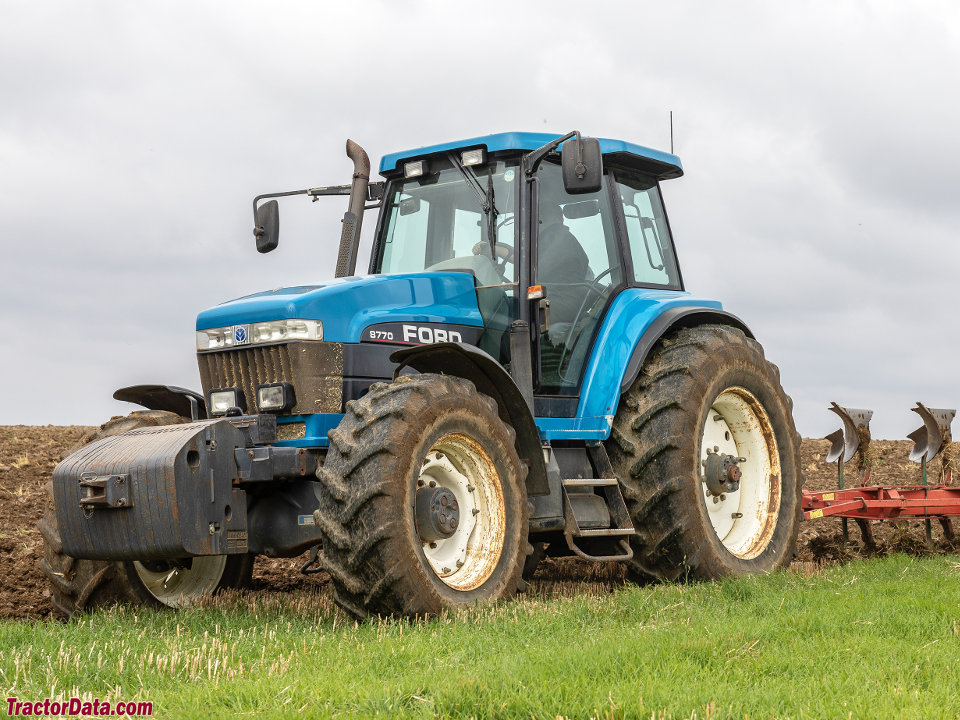

Ford 8770

Name: Ford 8770
Brand: Ford

Ford 8770 — 70 Genesis Series · 165 hp. Reference specifications; pending source verification.

The Ford 8770 is a tractor with a rated power of 165 hp, placing it at the powerful end of its class. It was manufactured from 1993 to 2002. The 8770 is equipped with a 6-cylinder turbocharged diesel liquid-cooled engine and four-wheel drive with a powershift transmission. Its operating weight ranges from 16600 to 19000 pounds, suitable for operations spanning 600–1,500 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

165 hp

Max power

138.6 kW

Weight

16600 to 19000 pounds

Catalogue coverage

Variants represented

Richest spec table

95 rows

Recorded power

165 hp

Transmissions

16-speed full power shift

Production years

1993-2002

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerFordReference

Row-Crop tractorReference

Built in Winnipeg, Manitoba, CanadaReference

Original price was $90,500 in 2000Reference

Two- or four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Cab standard with air-conditioning.Reference

Variants

2160similar Buhler Versatile modelReference

Engine

Ford 7.5L 6-cyl dieselReference

Engine141.7 kWReference

Drawbar (tested)106.1 kWReference

FordReference

turbocharged dieselReference

6-cylinderReference

liquid-cooled inlineReference

Displacement7.5 LReference

Bore/Stroke112 x 127 mmReference

Power141.7 kWReference

Compression17.5:1Reference

Rated RPM2100Reference

Firing order1-5-3-6-2-4Reference

Starter volts12Reference

Starter power4.5 kWReference

Coolant capacity25.0 LReference

Oil capacity20.8 LReference

Max power138.6 kWReference

Power at rated engine speed122.9 kWReference

Max power106.1 kWReference

Transmission

16-speed full power shiftReference

32-speed creeperReference

Typefull power shiftReference

Gears16 forward and 9 reverseReference

TypecreeperReference

Gears32 forward and 18 reverseReference

Creeper range added to standard power shift transmission. With tractor in neutral and inching pedal pressed, toggle button is used to enter/exit creeper range.Reference

PTO & Hydraulics

PTO (claimed)119.3 kWReference

PTO (tested)138.6 kWReference

Hydraulic system139.7 LReference

Typeclosed center load sensingReference

Capacity139.7 LReference

Pressure189.6 barReference

Valves3Reference

Pump flow90.8 lpmReference

Total flow117.3 lpmReference

Total flow208.2 lpmReference

Rear TypeIIIReference

Rear lift5670 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulic wet discReference

Rear PTO Type1000 (1.375)Reference

Engine RPM1000@1903Reference

Power at rated PTO speed133.8 kWReference

Capacities

Fuel416.4 LReference

Front hubs1.6 LReference

Front diff.12.3 LReference

Max capacity14288 kgReference

Dimensions

Wheelbase300 cmReference

Wheelbase311 cmReference

Weight16600 to 19000 poundsReference

Front tire14L-16.1Reference

Rear tire18.4R42Reference

Ag front14L-16.1 (2WD)Reference

Ag front16.9R28 (4WD)Reference

Ag rear18.4R42Reference

Length499 cmReference

Width245 cmReference

Height (cab)308 cmReference

Height (exhaust)315 cmReference

Clearance (front axle)50 cmReference

Clearance (drawbar)47 cmReference

Front tread157 to 220 cmReference

Rear tread153 to 273 cmReference

Rear tread153 to 314 cmReference

Rear tread153 to 325 cmReference

Operating7529 kgReference

Operating8201 kgReference

Operating8618 kgReference

Ford 8770 attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps130Reference

Batteries2Reference

Battery CCA950Reference

Battery volts12Reference

Test results

Diesel 16-speed 4WDJuly 1996 - August 1996, Link: OCED Tractor Test 1648 fileReference

PTO performanceReference

Fuel use37.9 l/hourReference

Fuel use37.5 l/hourReference

Drawbar performanceReference

Fuel use36.7 l/hourReference

Gear 9 used for power test.Reference

Max pull63 kgReference

Gear 6 used for pull test.Reference

Speeds

With 18.4-42 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
