Tractor · 1919Unverified

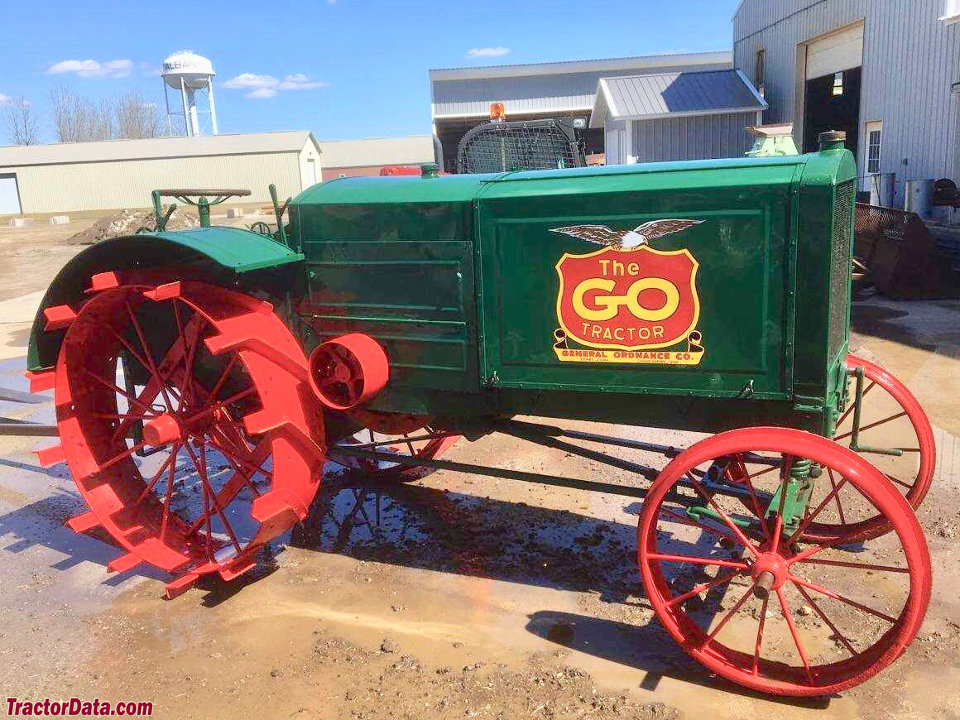

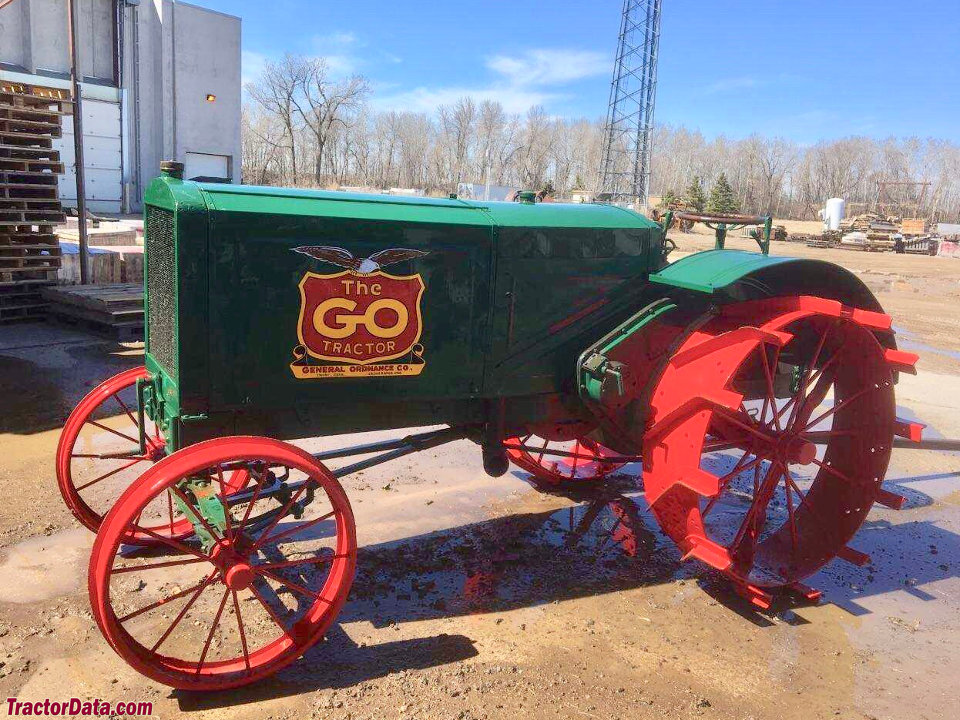

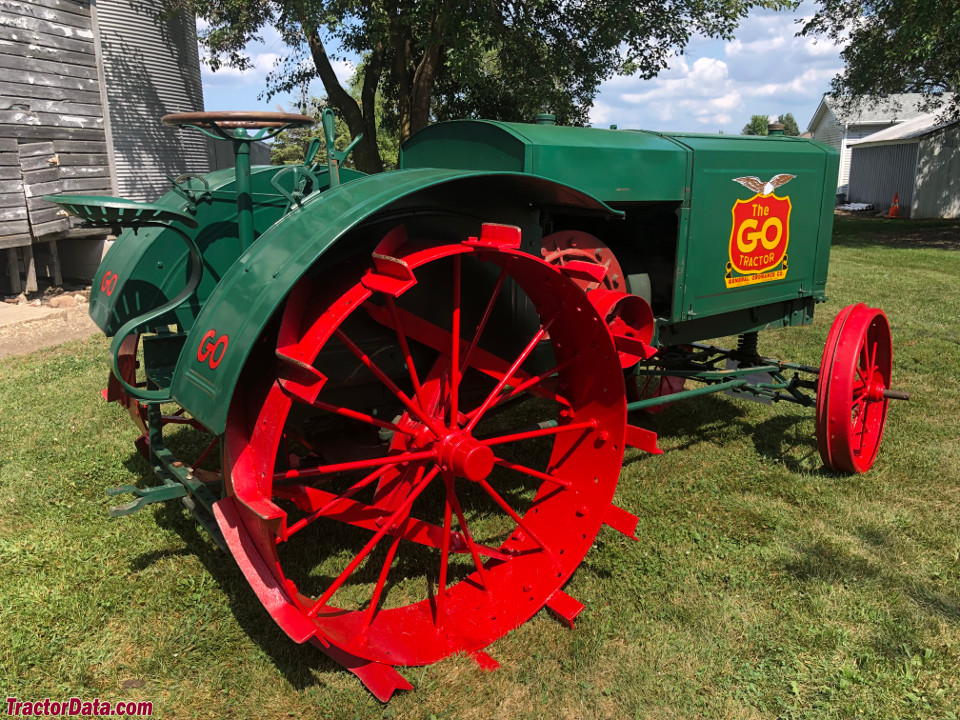

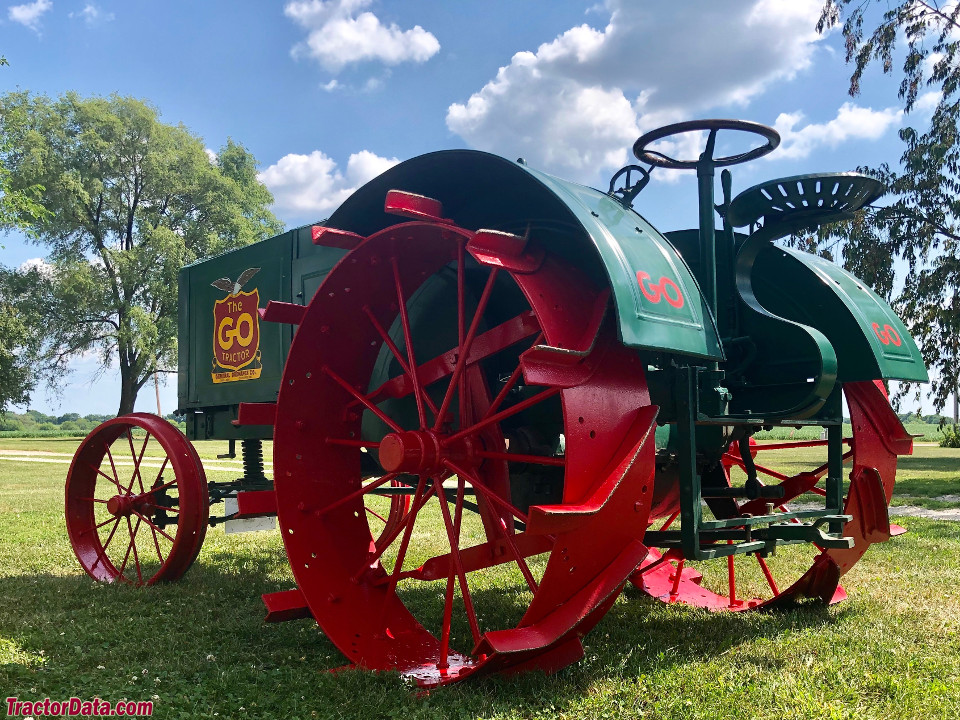

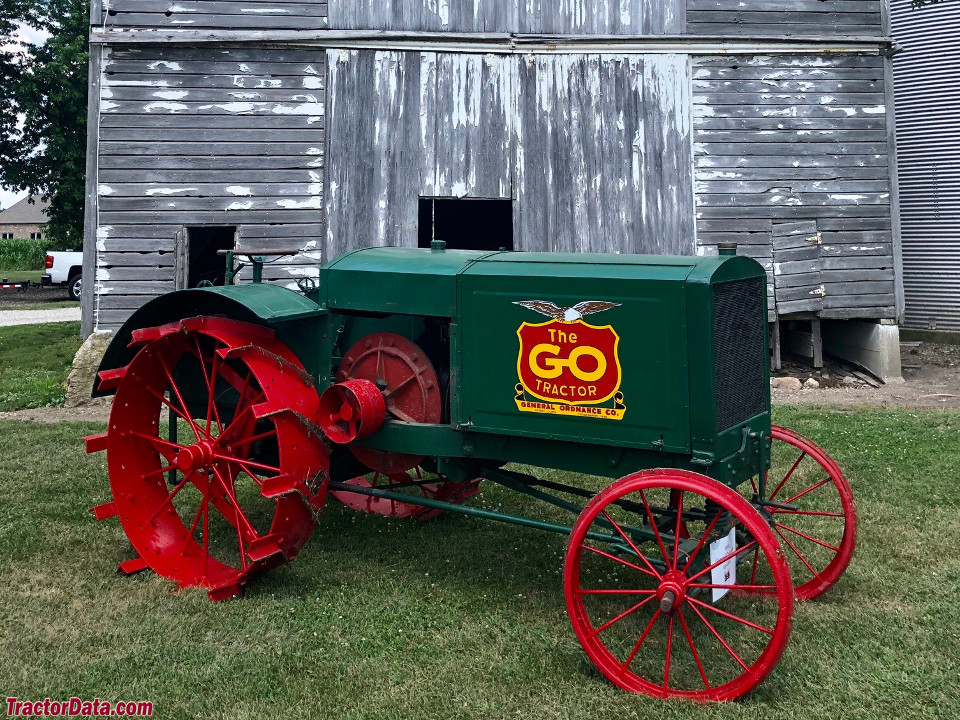

General Ordnance 14-28 G
General Ordnance 14-28 G — Standard-tread tractor · 14 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
14 hp
Weight
1905 kg
Hover a source tag to verify
Overview
ManufacturerGeneral OrdnanceReference
Standard-tread tractorReference
Built in Cedar Rapids, Iowa, USAReference
Two-wheel driveReference
Manual steeringReference
Open operator station.Reference
Engine
Waukesha 6.0L 4-cyl gasolineReference
Drawbar (claimed)10.4 kWReference
Belt (claimed)20.9 kWReference
Plows3Reference
WaukeshaReference
gasolineReference
4-cylinderReference
liquid-cooledReference
Displacement6.0 LReference
Bore/Stroke114 x 146 mmReference
Transmission
6-speed friction discReference
Typefriction discReference
Gears6 forward and reverseReference
Dimensions
Weight1905 kgReference
Rear tire46x10Reference
Ag rear46x10 steelReference
Length312 cmReference
Width180 cmReference
Height152 cmReference
Capacities
Diameter25 cmReference
Width16 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
