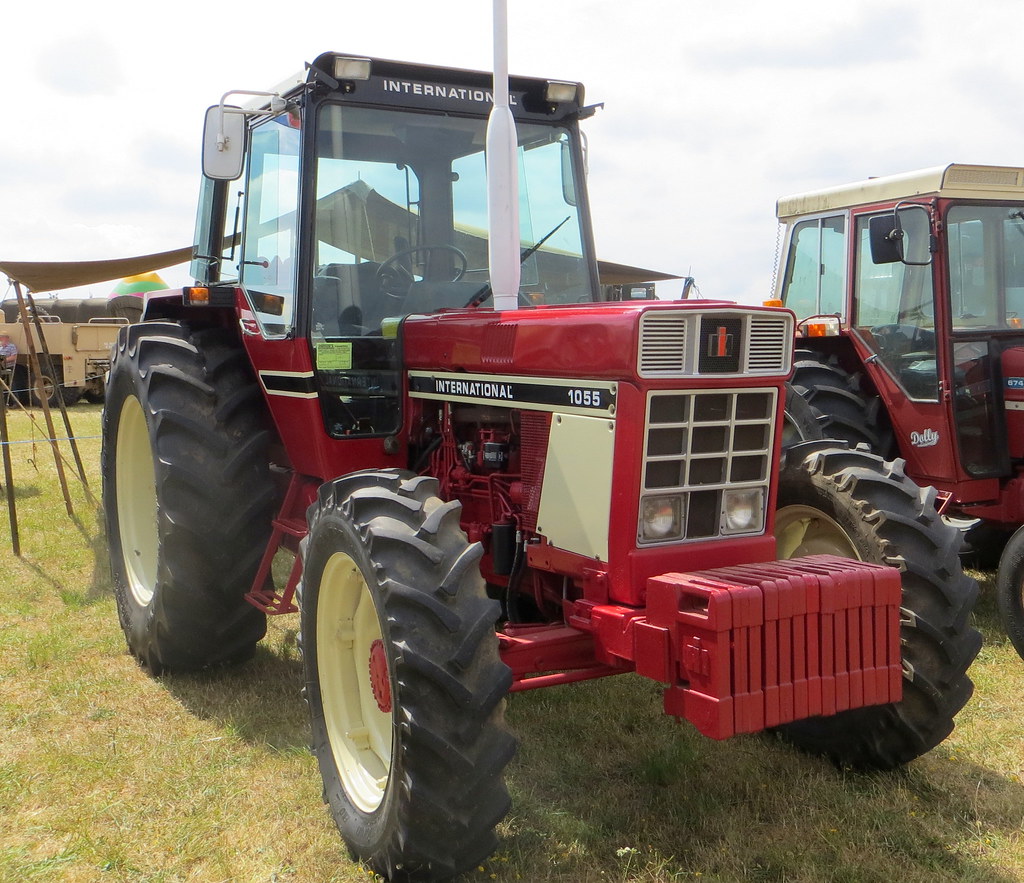

The International Harvester 1055 tractor is a mid-range model, rated at 100 hp. It was produced from 1977 to 1982. The 1055 model is equipped with a 6-cylinder diesel liquid-cooled engine and a mechanical front-wheel drive system, which powers a 16-speed gearbox. Its listed weight ranges from 9635 to 10473 pounds, and it is suitable for agricultural tasks covering approximately 200-800 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
100 hp
Weight
9635 to 10473 pounds
Catalogue coverage
Variants represented
2
Richest spec table
32 rows
Recorded power
100 hp
Recorded weight
4370 kg
Transmissions
16-speed
Production years
1977-1982
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerInternational HarvesterReference
Row-Crop tractorReference
Built in Neuss, GermanyReference
Two- or four-wheel driveReference
Four-post ROPS. Standard cab and deluxe XL cab optional.Reference
Engine
International Harvester 5.9L 6-cyl dieselReference
Fuel tank140.0 LReference
Engine74.6 kWReference
International HarvesterReference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement5.9 LReference
Bore/Stroke98 x 129 mmReference
Power74.6 kWReference
Rated RPM2200Reference
Transmission
16-speedReference
Gears16 forward and 8 reverseReference
PTO & Hydraulics
Pump flow36.0 lpmReference
Rear lift4150 kgReference
Rear PTO Type540, 1000Reference
Dimensions
Wheelbase262 cmReference
Weight9635 to 10473 poundsReference
Front tire11.00-16Reference
Rear tire18.4-38Reference
Ag front11.00-16Reference
Ag front13.6-28 (MFWD)Reference
Ag rear18.4-38Reference
Length425 cmReference
Height277 cmReference
2WD Weight4370 kgReference
4WD Weight4750 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
