Tractor · 1981Unverified

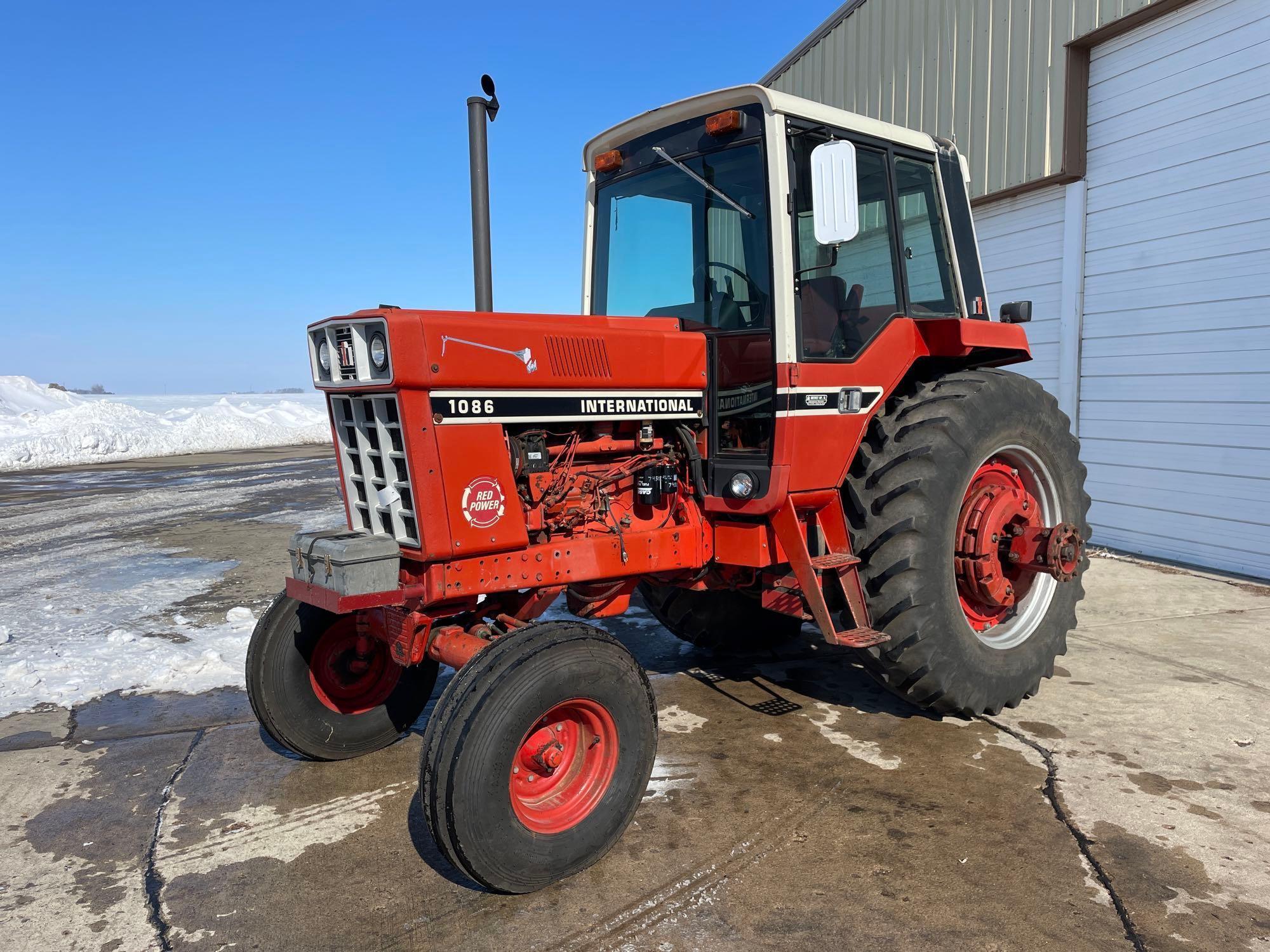

International Harvester 1086B
International Harvester 1086B — 86B Series · 98 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
98 hp
Weight
5949 kg
Hover a source tag to verify
Overview
ManufacturerInternational HarvesterReference
Row-Crop tractorReference
Built in Geelong, AustraliaReference
Total built164Reference
Two- or four-wheel driveReference
Differential lockelectro-hydraulic rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard.Reference
Engine
International Harvester 6.8L 6-cyl dieselReference
Engine110.4 kWReference
International Harvester DT-414Reference
turbocharged dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement6.8 LReference
Bore/Stroke109 x 121 mmReference
Power110.4 kWReference
Air cleanerdryReference
Rated RPM2400Reference
Starter typeelectricReference
Transmission
16-speed Torque AmplifierReference
Transmissiontwo-speed power shiftReference
TypeTorque AmplifierReference
Gears16 forward and 4 reverseReference
Clutchhydraulic cerametallic discReference
PTO & Hydraulics
PTO (claimed)73.1 kWReference
Typeopen centerReference
Rear TypeIII/IIReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@2100Reference
Engine RPM1000@2100Reference
Dimensions
Weight5949 kgReference
Front tire11.00-16Reference
Rear tire24.5-32Reference
Ag front11.00-16Reference
Ag rear24.5-32Reference
Length426 cmReference
Width259 cmReference
Shipping weight5949 kgReference
Ground clearance39 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
