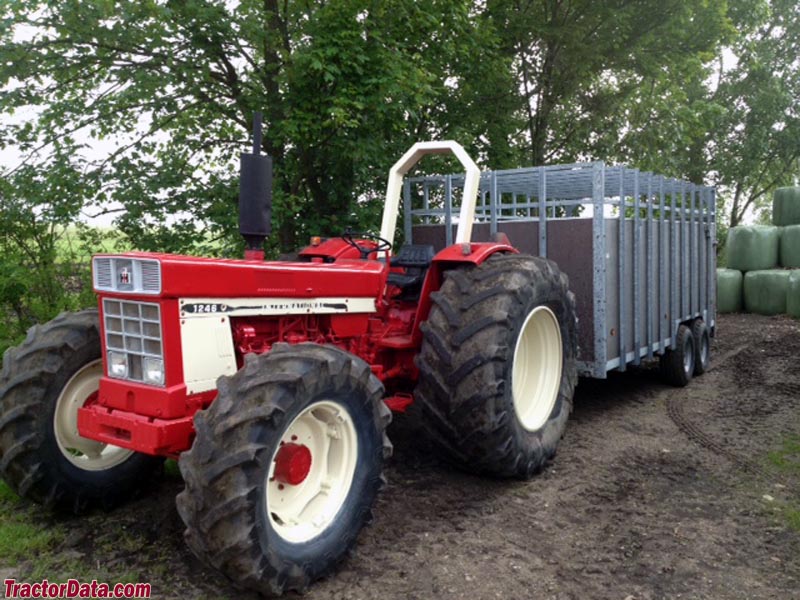

The International Harvester 1246 is a tractor model with a rated output of 122 hp, categorising it among the more powerful machines in its class. Produced from 1972 to 1980, this model features a 6-cylinder turbocharged diesel liquid-cooled engine, driving through mechanical front-wheel drive with a 12-speed gearbox. The listed weight of the International Harvester 1246 ranges from 9481 to 10694 pounds. It is designed for use on landholdings of approximately 200–800 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
122 hp
Weight
9481 to 10694 pounds
Catalogue coverage
Variants represented
2
Richest spec table
32 rows
Recorded power
122 hp
Recorded weight
4300 kg
Transmissions
12-speed
Production years
1972-1980
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerInternational HarvesterReference
Built in Neuss, GermanyReference
Two- or four-wheel driveReference
Engine
International Harvester 5.9L 6-cyl dieselReference
Fuel tank110.1 LReference
Engine91.0 kWReference
International HarvesterReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement5.9 LReference
Bore/Stroke98 x 129 mmReference
Power91.0 kWReference
Rated RPM2200Reference
Transmission
12-speedReference
16-speedReference
Gears12 forward and 5 reverseReference
Gears16 forward and 7 reverseReference
PTO & Hydraulics
Pump flow40.1 lpmReference
Rear lift3700 kgReference
Rear PTO Type540, 1000Reference
Dimensions
Wheelbase256 cmReference
Weight9481 to 10694 poundsReference
Front tire11.00-16Reference
Rear tire18.4-38Reference
Ag front11.00-16Reference
Ag front11.2-28 (MFWD)Reference
Ag rear18.4-38Reference
Length419 cmReference
Height272 cmReference
2WD Weight4300 kgReference
4WD Weight4850 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
