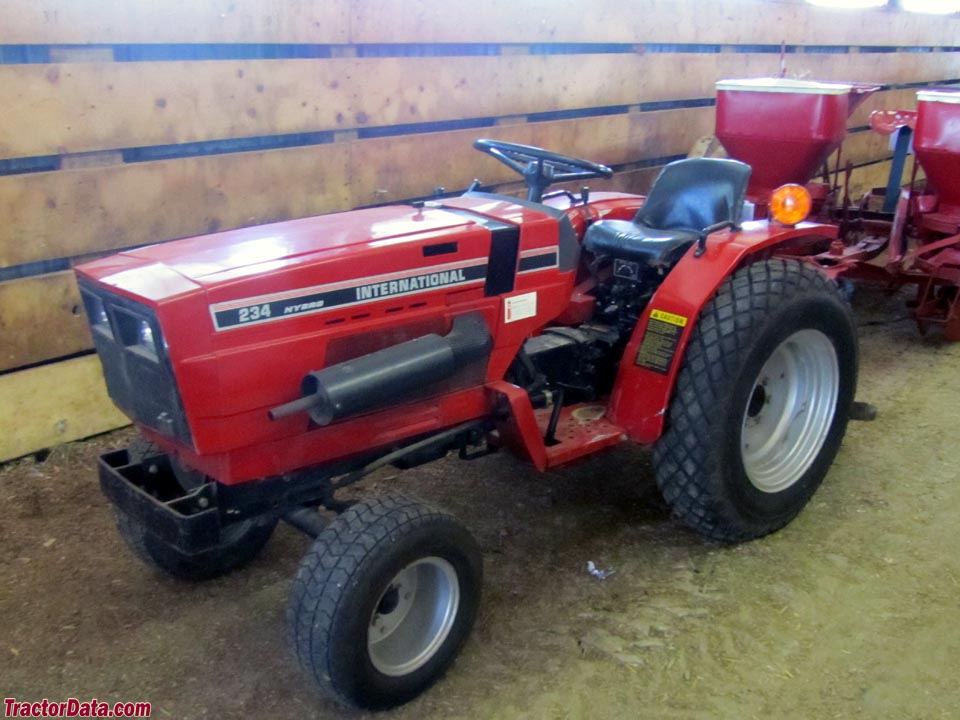

The International Harvester 234 is a compact tractor with a rated engine output of 15 hp. It was manufactured from 1982 to 1984. Key specifications of the 234 include a 3-cylinder diesel liquid-cooled engine, a hydrostatic transmission and four-wheel drive. The listed weight of the tractor is 546 kg and it is suitable for small-scale tasks, such as those involving up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
15 hp
Weight
546 kg
Catalogue coverage
Variants represented
2
Richest spec table
55 rows
Recorded power
15 hp
Recorded weight
546 kg
Transmissions
6-speed gear
Production years
1982-1984
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
DistributorInternational HarvesterReference
ManufacturerMitsubishiReference
Compact Utility tractorReference
Built in JapanReference
Two- or four-wheel driveReference
two-post ROPS; canopy optionalReference
Engine
Mitsubishi 0.8L 3-cyl dieselReference
Engine13.4 kWReference
MitsubishiReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement0.8 LReference
Bore/Stroke68 x 78 mmReference
Power13.4 kWReference
Rated RPM2700Reference
Starter volts12Reference
Oil capacity3.0 LReference
Coolant capacity4.9 LReference
Transmission
6-speed gearReference
hydrostaticReference
TypegearReference
Gears6 forward and 2 reverseReference
Oil capacity11.7 LReference
Three gears plus reverse with high and low ranges.Reference
TypehydrostaticReference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
PTO (claimed)11.3 kWReference
Hydraulic system11.7 LReference
Capacity11.7 LReference
Rear Type1Reference
Rear PTOtransmissionReference
Rear PTO Type540Reference
Front PTOindependentReference
Front PTO Type2700Reference
Capacities
Fuel18.2 LReference
Dimensions
Wheelbase142 cmReference
Weight546 kgReference
Length262 cmReference
Width93 cmReference
2WD Height (steering wheel)117 cmReference
4WD Height (steering wheel)118 cmReference
2WD Shipping weight546 kgReference
2WD Ground clearance28 cmReference
4WD Ground clearance21 cmReference
Rear tread73 to 88 cmReference
234 Serial Number Location
Serial number plate on the right side of the tractor frame, above the front axle.Reference
234 Serial Numbers
19828010Reference
19838110Reference
19848383Reference
19858646Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Speeds
With 8.00-18 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
