Tractor · 1982Unverified
Iseki T9000
Iseki T9000 — Utility tractor · 89 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
89 hp
Weight
6404 to 6757 pounds
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Utility tractorReference
Built in JapanReference
Original price was $25,000 in 1987Reference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
Four-post ROPS or cab.Reference
Engine
Isuzu 5.4L 6-cyl dieselReference
Fuel tank79.9 LReference
Engine66.2 kWReference
Isuzu 6BB1Reference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement5.4 LReference
Bore/Stroke102 x 110 mmReference
Power66.2 kWReference
Air cleanerdry with pre-cleanerReference
Compression17.5:1Reference
Rated RPM2200Reference
Starter volts12Reference
Starter power2.0 kWReference
Coolant capacity18.3 LReference

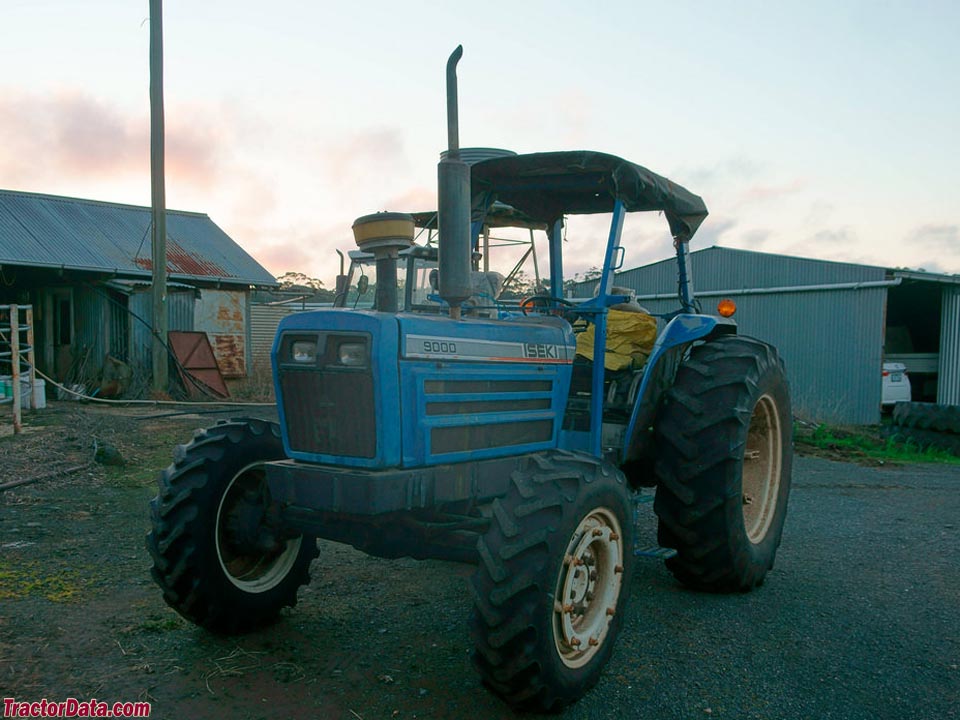

Image courtesy of Phillip MarshReference
Transmission
16-speed gearReference
TypegearReference
Gears16 forward and 4 reverseReference
Clutch333mm dry discReference
PTO & Hydraulics
Typeopen centerReference
Valves1Reference
Pump flow43.5 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift2399 kgReference
Rear PTOindependentReference
ClutchhydraulicReference
Rear PTO Type540/1000Reference
Engine RPM540@1814Reference
Engine RPM1000@2050Reference
Dimensions
2WD Wheelbase231 cmReference
4WD Wheelbase235 cmReference
Weight6404 to 6757 poundsReference
Front tire7.50x20Reference
2WD Rear tire16.9x34Reference
2WD Standard tires (ag)Front: 7.50x20. Rear: 16.9x34Reference
4WD Standard tires (ag)Front: 11.2x24. Rear: 16.9x34Reference
Length398 cmReference
Width194 cmReference
Height259 cmReference
2WD Weight2904 kgReference
4WD Weight3064 kgReference
Ground clearance35 cmReference
2WD Front tread132 to 182 cmReference
4WD Front tread146/155 cmReference
Rear tread140 to 189 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps35Reference
Batteries2Reference
Battery volts12Reference
Battery AH80Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
