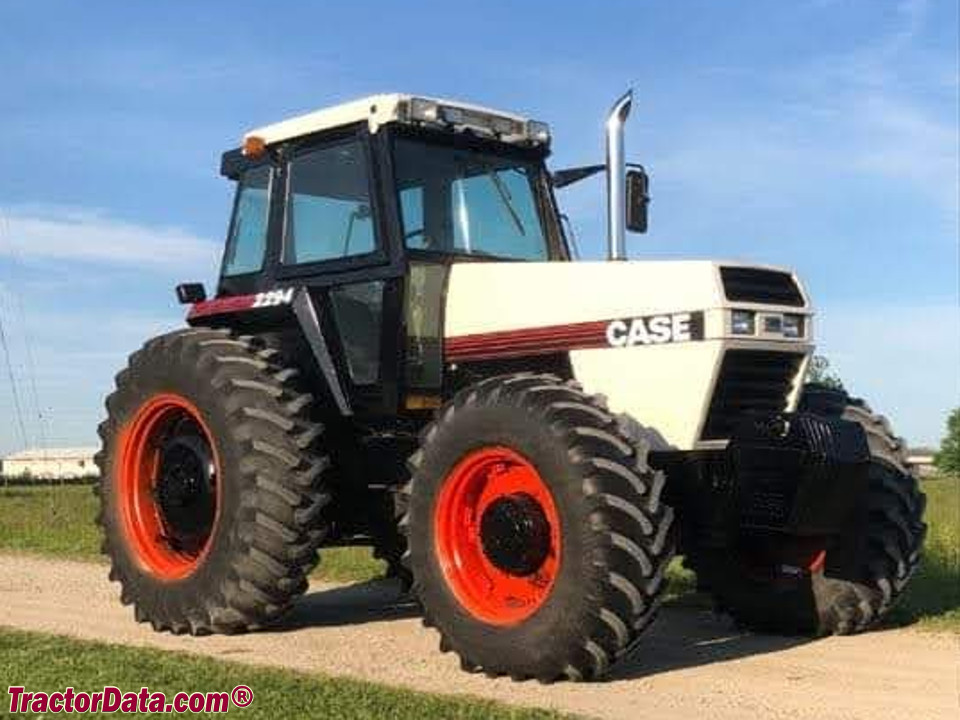

J.I. Case 2294
J.I. Case 2294 — 94 Series · 132 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
132 hp
Max power
86.0 kW
Weight
11070 to 14390 pounds
Hover a source tag to verify
Overview
ManufacturerJ.I. CaseReference
Row-Crop tractorReference
Built in Racine, Wisconsin, USAReference
Two- or four-wheel driveReference
Power steeringReference
Differential hydraulic wet disc brakesReference
Four-post ROPS. Silent Guardian cab optional with air-conditioning.Reference
Engine
Case 8.3L 6-cyl dieselReference
Engine114.8 kWReference
Drawbar (claimed)86.5 kWReference
Drawbar (tested)86.0 kWReference
CaseReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement8.3 LReference
Bore/Stroke117 x 127 mmReference
Power114.8 kWReference
Compression15.8:1Reference
Rated RPM2100Reference
Starter volts12Reference
Oil capacity22.7 LReference
Coolant capacity36.0 LReference
Power at rated engine speed98.4 kWReference
Max power86.0 kWReference
Transmission
12-speed three-speed power shiftReference
Typethree-speed power shiftReference
Gears12 forward and 3 reverseReference
Oil capacity94.6 LReference
Three power-shift gears (1-3), plus reverse, in four ranges (1-4). Reverse does not function in fourth range.Reference
PTO & Hydraulics
PTO (claimed)96.9 kWReference
PTO (tested)98.4 kWReference
Hydraulic system94.6 LReference
Typeclosed centerReference
Capacity94.6 LReference
Pressure155.1 barReference
Valves2 to 4Reference
Pump flow87.1 lpmReference
Steering flow30.3 lpmReference
Steering press.137.9 barReference
Rear TypeIIReference
Rear lift (at 24"/610mm)2993 kgReference
Rear PTOindependentReference
ClutchhydraulicReference
Rear PTO Type540/1000Reference
Capacities
Fuel246.0 LReference
Fuel94.6 LReference
Max capacity7529 kgReference
Dimensions
Wheelbase264 cmReference
Wheelbase279 cmReference
Weight11070 to 14390 poundsReference
Front tire11.00x16Reference
Rear tire18.4-38 (2WD)Reference
Standard tires (ag)Front: 11.00x16. Rear: 18.4-38 (2WD)Reference
Standard tires (ag)Front: 14.9-28. Rear: 18.4-38 (4WD)Reference
Ag rear23.1x34Reference
Ag rear16.9x38Reference
Ag rear20.8x38Reference
Bar rear axle88 by 2438 mmReference
Bar rear axle88 by 3048 mmReference
Rear tread152 to 223 cmReference
Rear tread152 to 284 cmReference
Shipping5021 kgReference
Operating6527 kgReference
2294 Serial Numbers
Location:Inside cab or on right-front frameReference
19849931808Reference
19859938113Reference
19869941577Reference
19879945448Reference
19889949350Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps72Reference
Charging amps105Reference
Battery volts12Reference
Test results
Diesel 12 speed 2WDJune 1 - 12, 1984Link: Nebraska Tractor Test 1526 fileReference
PTO performanceReference
Fuel use33.7 l/hourReference
Drawbar performanceReference
Fuel use33.3 l/hourReference
Gear 3-2 used for power test.Reference
Max pull5904 kgReference
Gear 2-1 used for pull test.Reference
Speeds
With 18.4x38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
