Tractor · 1956Unverified

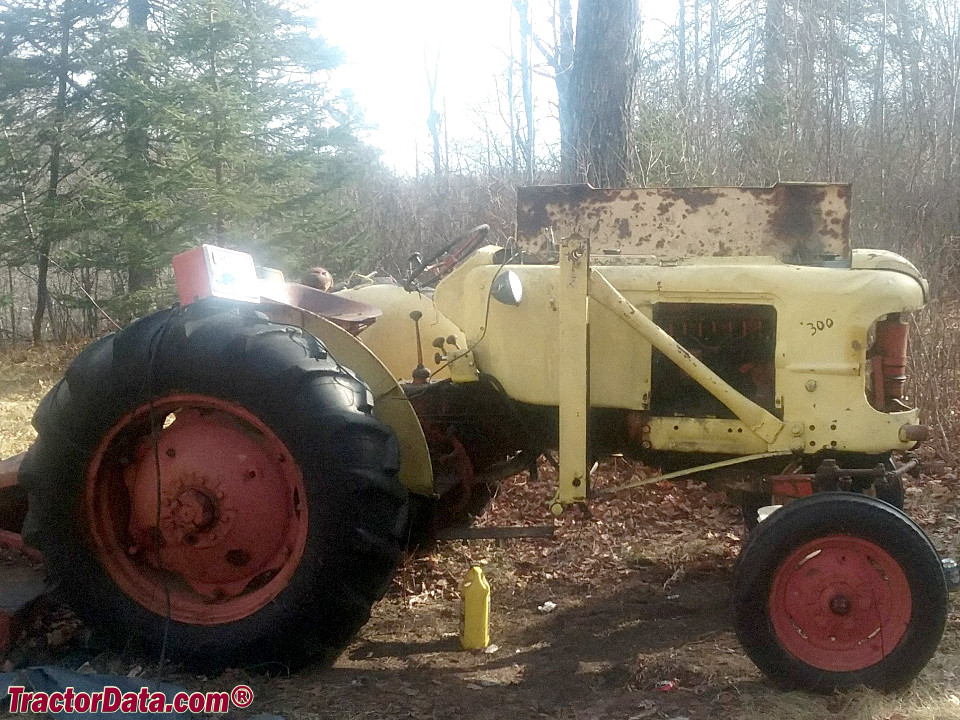

J.I. Case 300
J.I. Case 300 — 300 Series · 22 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
22 hp
Weight
1542 kg
Hover a source tag to verify
Overview
ManufacturerJ.I. CaseReference
Utility tractorReference
Built in Rock Island, Illinois, USAReference
Total built249Reference
Original price$3,500 (1958)Reference
Two-wheel driveReference
SteeringmanualReference
6-inch disc brakesReference
Open operator station.Reference
Variants
300diesel utilityReference
301diesel row-cropReference
302diesel high-cropReference
310gasoline utilityReference
311gasoline row-cropReference
312gasoline high-cropReference
320industrialReference
Engine
Continental 2.6L 4-cyl dieselReference
Drawbar (claimed)16.4 kWReference
Belt (claimed)20.1 kWReference
Plows3Reference
Continental GD157Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.6 LReference
Bore/Stroke86 x 111 mmReference
Air cleaneroil bathReference
Pre-heatingetherReference
Compression15.5:1Reference
Rated RPM1750Reference
Starter volts12Reference
Coolant capacity11.4 LReference
Transmission
4-speed sliding gearReference
12-speedReference
Typesliding gearReference
Gears4 forward and 1 reverseReference
Clutch234.9mm dry discReference
TransmissionTripl-RangeReference
Gears12 forward and 3 reverseReference
Clutch234.9mm dry disc (master foot clutch)Reference
Clutchwet discs (traction hand clutch)Reference
Four gears (1-4) plus reverse (R) in three ranges (low, direct, high).Reference
PTO & Hydraulics
Rear PTOtransmission (4-speed)Reference
Rear PTOlive (Tripl-Range)Reference
Rear PTO Type540Reference
Dimensions
Wheelbase191 cmReference
Weight1542 kgReference
Front tire6.00x16Reference
Rear tire11x24Reference
Ag front6.00x16Reference
Ag rear11x24Reference
Length317 cmReference
Height142 cmReference
Ground clearance30 cmReference
Front tread120 cmReference
Rear tread121 to 172 cmReference
300 Serial Numbers
Location:Serial number plate on the instrument panel.Reference
19566050301Reference
19576075001Reference
19586095001Reference
FAQ: How to read a serial number table.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
