Tractor · 1976Unverified

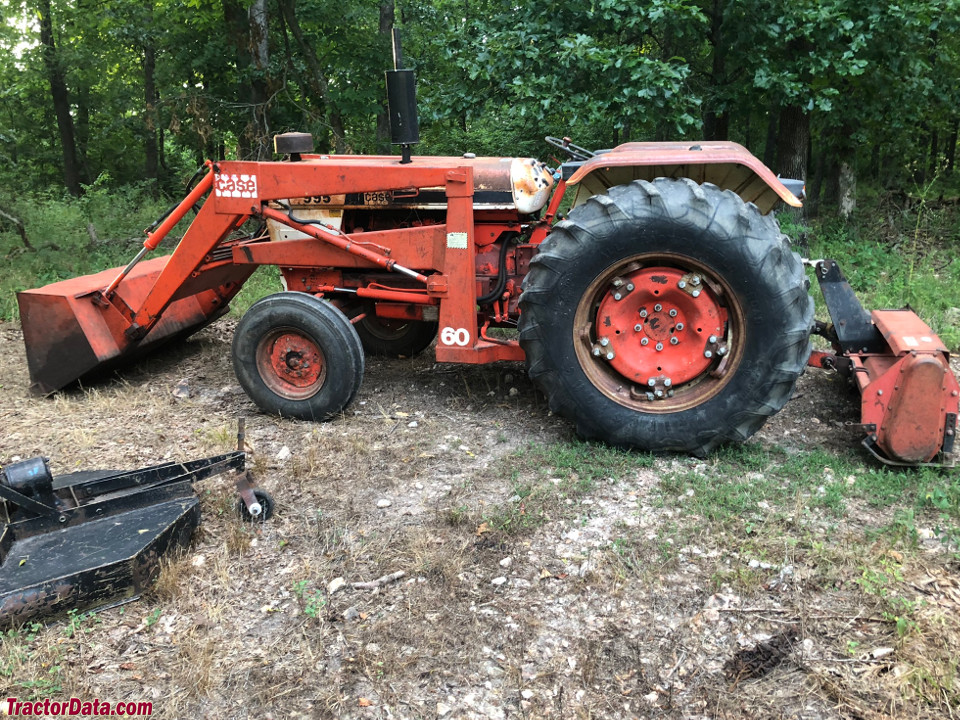

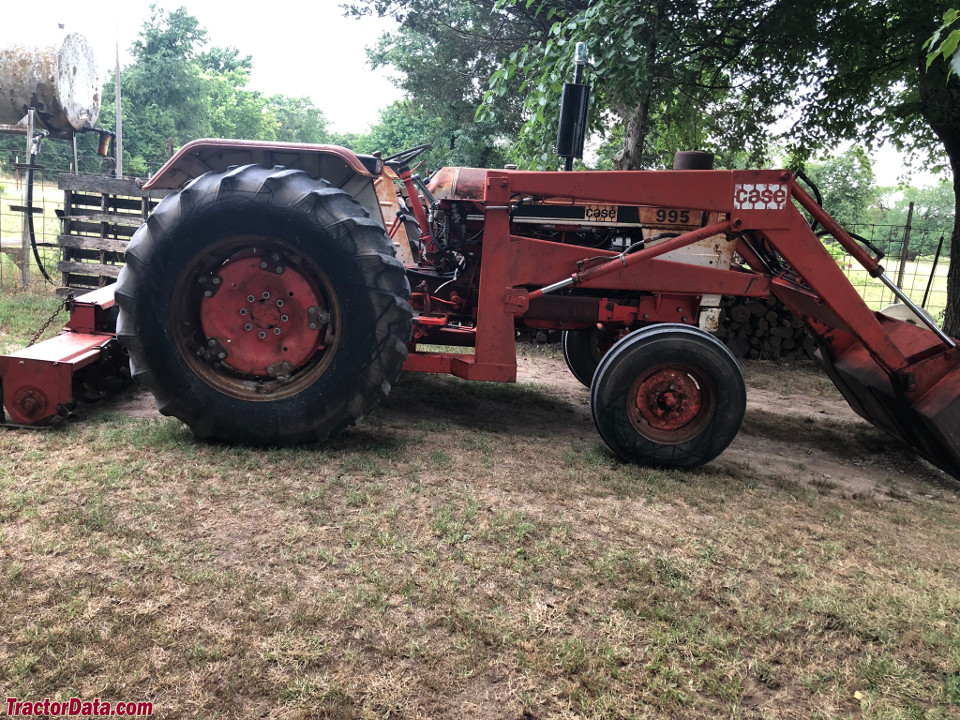

J.I. Case 995
J.I. Case 995 — Utility tractor · 62 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
62 hp
Max power
36.3 kW
Weight
4780 to 5190 pounds
Hover a source tag to verify
Overview
ManufacturerJ.I. CaseReference
Utility tractorReference
Built in Meltham Mills, Huddersfield, EnglandReference
Original price was $10,500 in 1976Reference
Two-wheel driveReference
Final drivesspur gearReference
Power steeringReference
Hydraulic drum brakesReference
Open operator station. Quiet Cab optional.Reference
Engine
David Brown 3.6L 4-cyl dieselReference
Fuel tank60.6 LReference
Engine (gross)46.2 kWReference
Drawbar (tested)36.3 kWReference
David BrownReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.6 LReference
Bore/Stroke100 x 114 mmReference
Power (gross)46.2 kWReference
Compression17:1Reference
Rated RPM2200Reference
Operating RPM700-2200Reference
Coolant capacity13.2 LReference
Power at rated engine speed43.8 kWReference
Max power36.3 kWReference
Transmission
12-speed synchromeshReference
TypesynchromeshReference
Gears12 forward and 4 reverseReference
Clutch250mm dry discReference
Three gears, plus reverse, in four ranges. Synchronized up-shifts from 1-to-2 and 2-to-3. Synchronized down-shift from 3-to-2.Reference
PTO & Hydraulics
PTO (claimed)43.3 kWReference
PTO (tested)43.8 kWReference
Typeopen centerReference
Pump flow28.0 lpmReference
Rear TypeII/IReference
Rear lift907 kgReference
Rear PTOliveReference
Rear PTO Type540/1000Reference
Engine RPM540@1800Reference
Engine RPM1000@2000Reference
Power at rated PTO speed41.3 kWReference
Dimensions
Wheelbase208 cmReference
Weight4780 to 5190 poundsReference
Front tire7.50-16Reference
Rear tire13.6/12-36Reference
Ag front7.50-16Reference
Ag rear13.6/12-36Reference
Ag front6.00-19Reference
Ag rear12.4/11-36Reference
Ag rear16.4/14-30Reference
Length320 cmReference
Width170 cmReference
Height (hood)148 cmReference
Height (cab)241 cmReference
Clearance (front axle)53 cmReference
Clearance (drawbar)40 cmReference
Rear tread132 to 193 cmReference
2168 kgReference
Cab Operating2354 kgReference
Ballasted4297 kgReference
995 Serial Numbers
Location:On front frame, right side.Reference
1971920001Reference
1972921383Reference
1973925158Reference
1974928575Reference
1975931772Reference
197611070001Reference
197711080236Reference
197811089141Reference
197911096828Reference
198011104577Reference
FAQ: How to read a serial number table.Reference
Electrical
Charging systemalternatorReference
Battery volts12Reference
Battery AH96Reference
Test results
Diesel 12-speed 2WDJune 18 - 29, 1973Link: Nebraska Tractor Test 1136 fileReference
PTO performanceReference
Fuel use14.0 l/hourReference
Fuel use12.5 l/hourReference
Drawbar performanceReference
Fuel use13.2 l/hourReference
Max pull3318 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
