Tractor · 1987Unverified

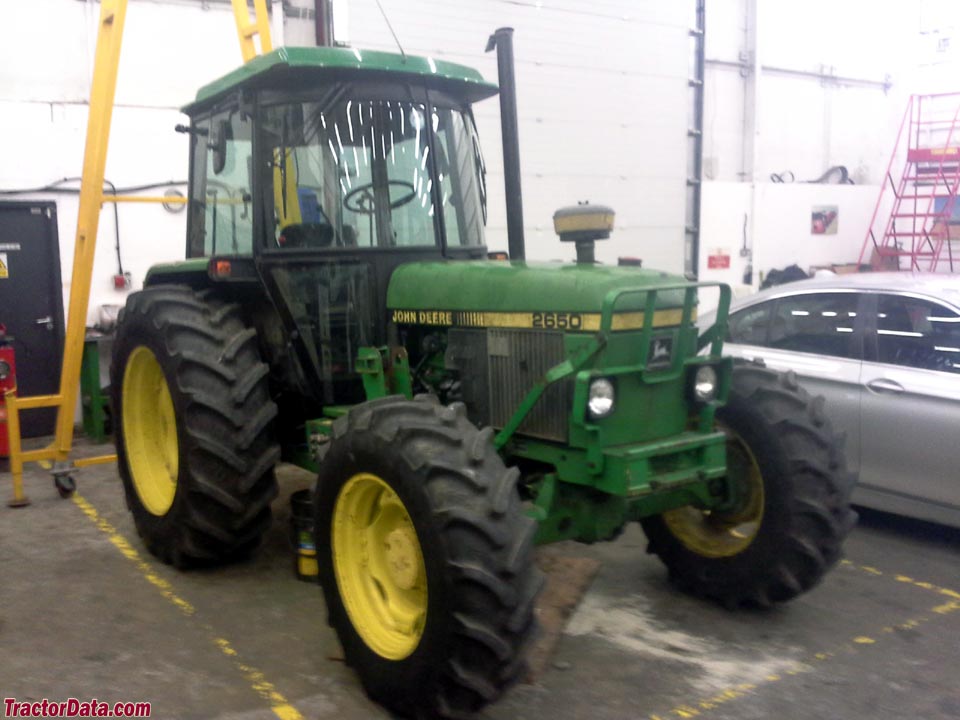

John Deere 2650
John Deere 2650 — Utility tractor · 78 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
78 hp
Weight
7694 to 8378 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Utility tractorReference
Built in Mannheim, Baden-Württemberg, GermanyReference
Two- or four-wheel driveReference
Final drivesplanetaryReference
Power steeringReference
Wet disc brakesReference
ROPS. Sound-Gard and CC2 cab optional.Reference
Engine
John Deere 3.9L 4-cyl dieselReference
Fuel tank84.0 LReference
Fuel tank135.9 LReference
Engine58.2 kWReference
John DeereReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.9 LReference
Bore/Stroke106 x 110 mmReference
Power58.2 kWReference
Air cleanerdryReference
Rated RPM2300Reference
Starter volts12Reference
Starter power3.0 kWReference
Coolant capacity15.0 LReference
Transmission
16-speed two-speed power shiftReference
TransmissionHi-LoReference
Typetwo-speed power shiftReference
Gears16 forward and 8 reverseReference
Clutchcerametallic discReference
PTO & Hydraulics
Typeclosed-center constant pressureReference
Pressure190.0 barReference
Pump flow43.9 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift (at 24"/610mm)1875 kgReference
Front HitchIIReference
Front lift790 kgReference
Rear PTOindependentReference
Clutchhydraulic wet discReference
Rear PTO Type540/1000Reference
Engine RPM540@2070Reference
Engine RPM1000@2172Reference
Front PTOindependentReference
Front PTO Type1000Reference
Dimensions
2WD Wheelbase226 cmReference
4WD Wheelbase228 cmReference
Weight7694 to 8378 poundsReference
Front tire7.50-18Reference
2WD Rear tire13.6R38Reference
2WD Standard tires (ag)Front: 7.50-18. Rear: 13.6R38Reference
4WD Standard tires (ag)Front: 11.2-28. Rear: 13.6R38Reference
Length419 cmReference
Width205 cmReference
Height (cab)266 cmReference
2WD Shipping weight3489 kgReference
4WD Shipping weight3800 kgReference
2WD Clearance (front axle)65 cmReference
4WD Clearance (front axle)49 cmReference
2WD Front tread135 to 200 cmReference
4WD Front tread150 to 200 cmReference
Rear tread150 to 199 cmReference
Electrical
GroundnegativeReference
Charging amps44Reference
Batteries2Reference
Battery volts12Reference
Battery AH55Reference
Speeds
With 13.6-38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
