Tractor · 1986Unverified

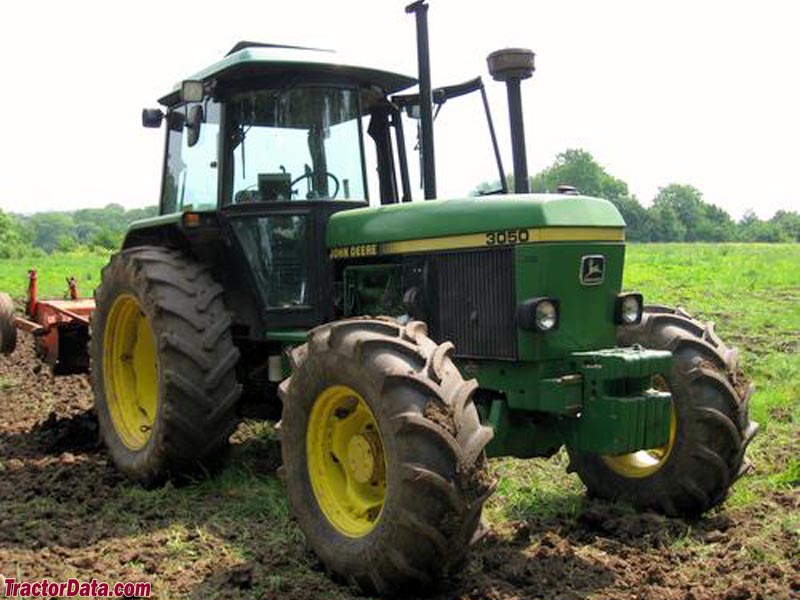

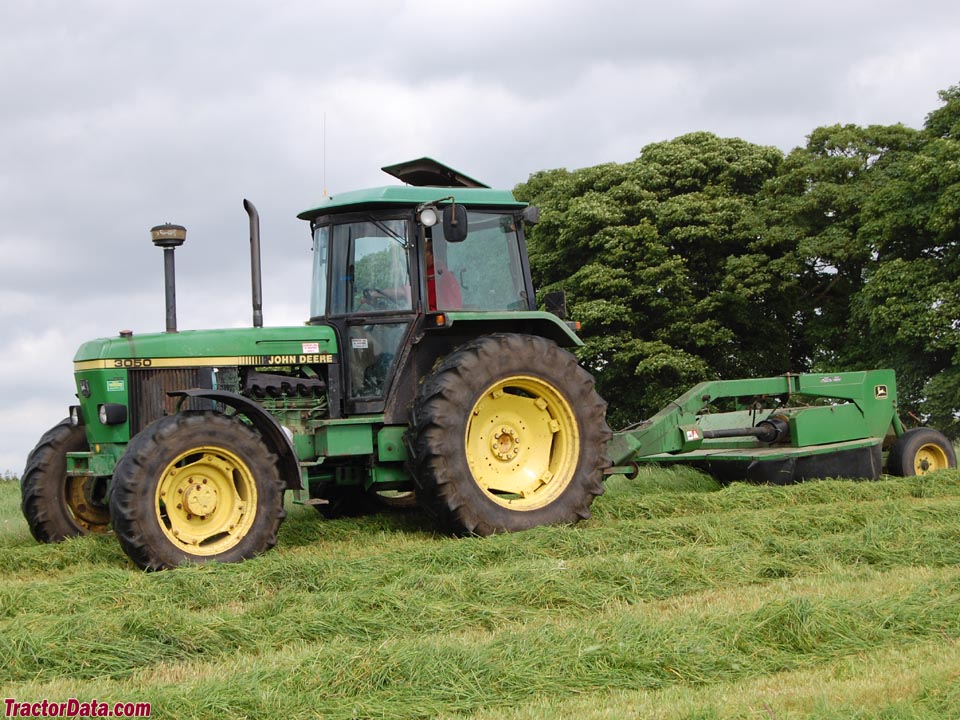

John Deere 3050

Name: John Deere 3050
Brand: John Deere

John Deere 3050 — Utility tractor · 84 hp. Reference specifications; pending source verification.

The John Deere 3050 is a tractor with a rated engine power of approximately 84 hp, falling within the mid-range for its class. It was manufactured from 1986 to 1993. The tractor features a 6-cylinder diesel liquid-cooled engine, paired with four-wheel drive and a powershift transmission. Its operating weight is listed as 9149 to 10714 pounds, and it is suitable for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

84 hp

Weight

9149 to 10714 pounds

Catalogue coverage

Variants represented

Richest spec table

81 rows

Recorded power

84 hp

Transmissions

16-speed two-speed power shift

Production years

1986-1993

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerJohn DeereReference

Utility tractorReference

Built in Mannheim, Baden-Württemberg, GermanyReference

Two- or four-wheel driveReference

Final drivesplanetaryReference

Differential lockmechanical rearReference

Power steeringReference

Hydraulic wet disc brakesReference

SG2 Cab standard with optional air-conditioning.Reference

Engine

John Deere 5.9L 6-cyl dieselReference

Engine67.6 kWReference

John Deere 6359 DL008Reference

dieselReference

6-cylinderReference

liquid-cooledReference

Displacement5.9 LReference

Bore/Stroke107 x 110 mmReference

Power67.6 kWReference

Compression17.4:1Reference

Rated RPM2300Reference

Torque340.1 NmReference

Torque RPM1400Reference

Starter volts12Reference

Starter power3.0 kWReference

Oil capacity11.5 LReference

Coolant capacity19.0 LReference

Transmission

16-speed two-speed power shiftReference

TransmissionHi-LoReference

Typetwo-speed power shiftReference

Gears16 forward and 8 reverseReference

Clutchhydraulic cerametallic discReference

PTO & Hydraulics

PTO (claimed)62.9 kWReference

Hydraulic system49.0 LReference

Hydraulic system52.0 LReference

Typeclosed-center constant pressureReference

Capacity49.0 LReference

Capacity52.0 LReference

Pressure186.0 barReference

Total flow44.0 lpmReference

Rear TypeII/IIINReference

Controlposition and draft controlReference

2WD Rear lift (at ends)4076 kgReference

4WD Rear lift (at ends)4898 kgReference

Front HitchIIReference

Front lift1630 kgReference

Rear PTOindependentReference

Clutchhydraulic wet discReference

Rear PTO Type540/1000Reference

Engine RPM540@2070Reference

Engine RPM1000@2172Reference

Front PTOindependentReference

Front PTO Type1000Reference

Capacities

Fuel121.1 LReference

Fuel173.0 LReference

4WD Max capacity7499 kgReference

Dimensions

2WD Wheelbase255 cmReference

4WD Wheelbase258 cmReference

Weight9149 to 10714 poundsReference

Front tire11.00x16Reference

Rear tire18.4x38Reference

Ag front11.00x16 (2WD)Reference

Ag front13.6x28 (4WD)Reference

Ag rear18.4x38Reference

Ag front14.9x26Reference

Ag rear521/70x38Reference

Length467 cmReference

Width216 cmReference

Height288 cmReference

4WD Ground clearance50 cmReference

2WD Ground clearance68 cmReference

2WD Front tread144 to 209 cmReference

4WD Front tread151 to 200 cmReference

Rear tread150 to 199 cmReference

2WD4149 kgReference

4WD4859 kgReference

Electrical

GroundnegativeReference

Charging amps55Reference

Batteries2Reference

Battery volts12Reference

Battery AH88Reference

Speeds

With 16.9-38 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
