Backhoe Loader · 2007Unverified

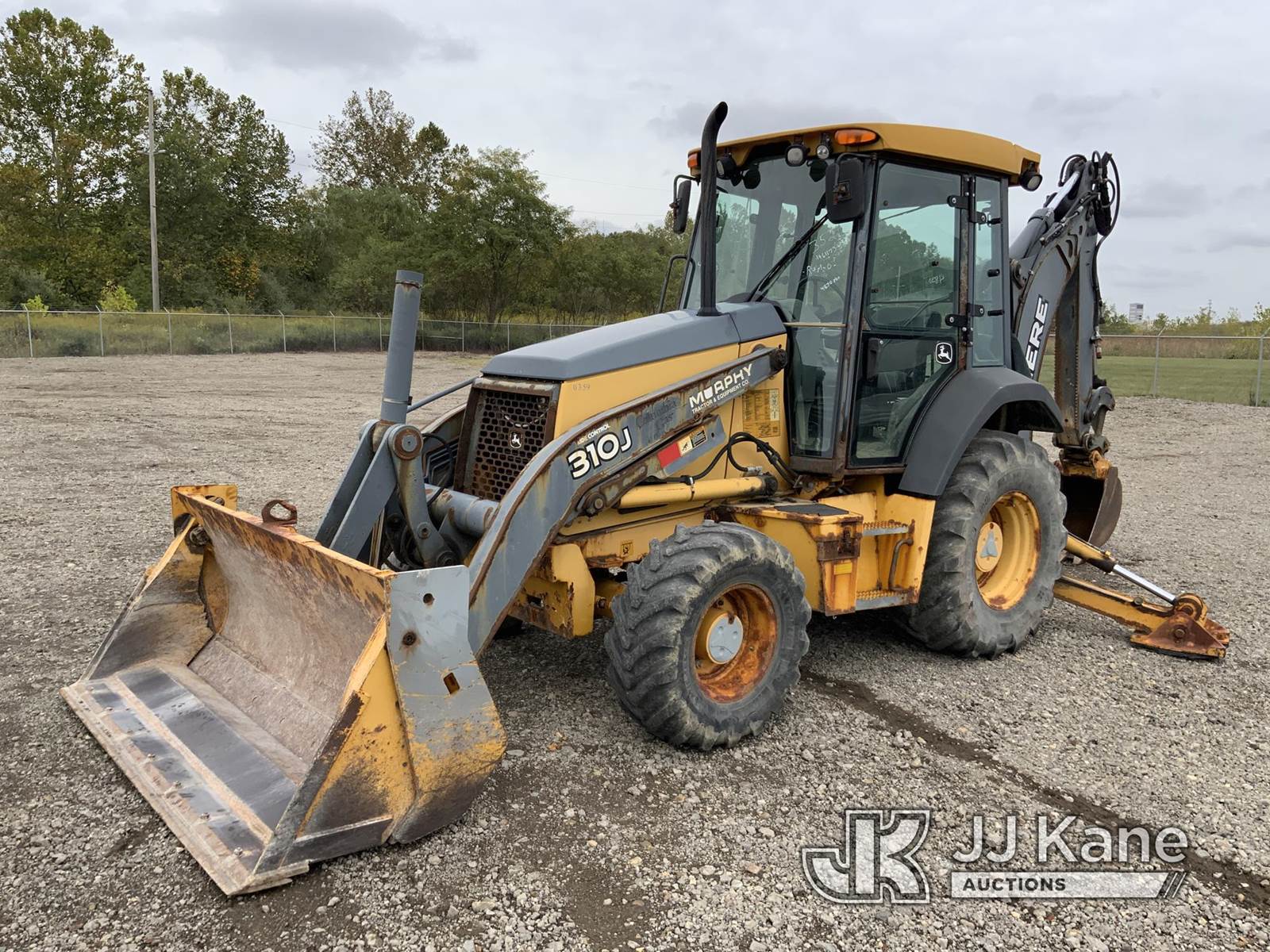

John Deere 310J
John Deere 310J — Backhoe loader tractor · 84 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
84 hp
Weight
13880 to 16220 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Backhoe loader tractorReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD (optional)Reference
Steeringhydrostatic powerReference
Hydraulic wet disc brakesReference
Engine
John Deere 4.5L 4-cyl dieselReference
Engine62.6 kWReference
John Deere 4045Reference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.5 LReference
Power62.6 kWReference
Air cleanerdual stage dryReference
Rated RPM2000Reference
Torque366.1 NmReference
Torque RPM1300Reference
Starter volts12Reference
Oil capacity13.2 LReference
Coolant capacity24.6 LReference
Transmission
4-speed full powershiftReference
TransmissionPowerShiftReference
Typefull powershiftReference
Gears4 forward and 2 reverseReference
Capacities
Fuel155.2 LReference
PTO & Hydraulics
Hydraulic system90.8 LReference
Typeopen centerReference
Capacity90.8 LReference
Pressure249.9 barReference
Pressure220.6 barReference
Total flow106.0 lpmReference
Dimensions
Wheelbase210 cmReference
Wheelbase213 cmReference
Weight13880 to 16220 poundsReference
Front tire11L-16Reference
Rear tire19.5L-24Reference
Industrial front11L-16 (2WD)Reference
Industrial front12-16.5 (4WD)Reference
Industrial rear19.5L-24Reference
Length708 cmReference
Width218 cmReference
Height (ROPS)274 cmReference
Operating weight6295 kgReference
Operating weight7357 kgReference
Ground clearance30 cmReference
Backhoe & Loader
Dig depth171 to 215 inchesReference
Dump angle114 cmReference
Electrical
Charging systemalternatorReference
Charging amps90Reference
Batteries1Reference
Batteries2 (optional)Reference
Battery CCA950Reference
Battery volts12Reference
Attachment overview
Front-end loaderReference
BackhoeReference
John Deere Backhoe
Backhoe typeJohn Deere BackhoeReference
Digging depth434 cmReference
Digging depth (retracted stick)439 cmReference
Digging depth (extended stick)546 cmReference
2-Foot flat digging depth431 cmReference
2-Foot flat digging depth (retracted stick)436 cmReference
2-Foot flat digging depth (extended stick)546 cmReference
8-Foot flat digging depth396 cmReference
8-Foot flat digging depth (retracted stick)406 cmReference
8-Foot flat digging depth (extended stick)546 cmReference
Reach from pivot543 cmReference
Reach from pivot (retracted stick)551 cmReference
Reach from pivot (extended stick)652 cmReference
Loading height332 cmReference
Loading height (retracted stick)337 cmReference
Loading height (extended stick)424 cmReference
Bucket force5037 kgReference
Dipperstick force3177 kgReference
Speeds
With 19.L-24 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
