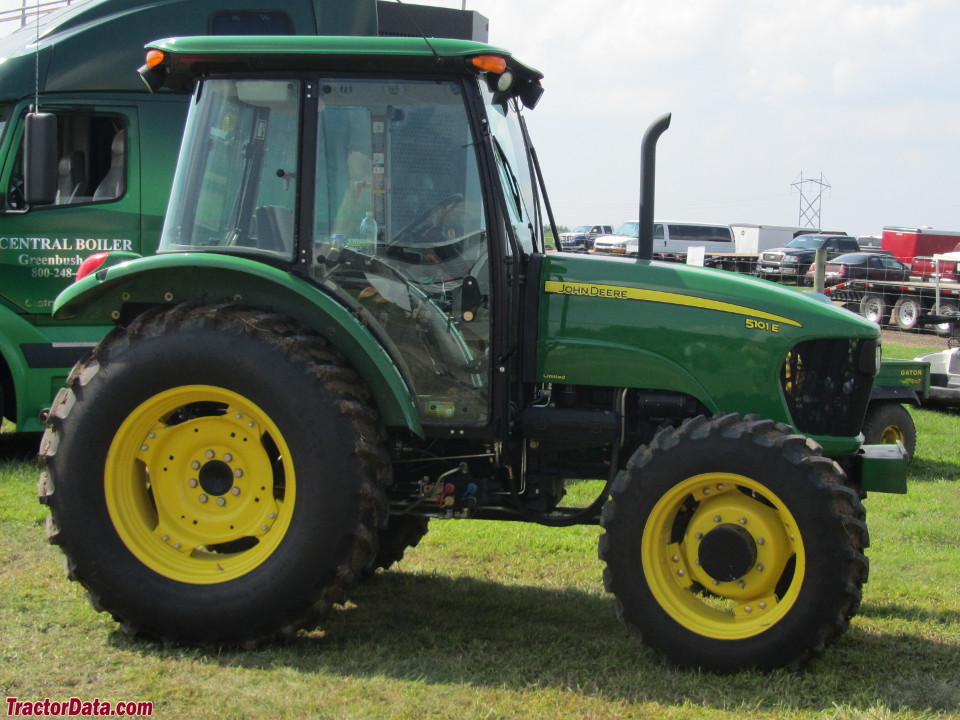

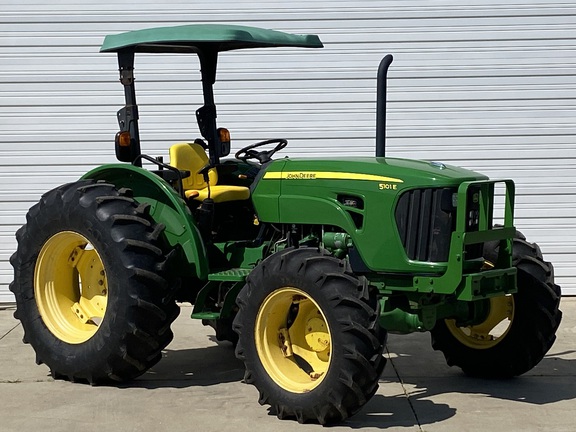

John Deere 5101E
John Deere 5101E — Model year 2008-20112012-2012 · 101 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
101 hp
Max power
62.5 kW
Weight
3320 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Utility tractorReference
Built in Augusta, Georgia, USAReference
Original price$48,135 (2011)Reference
Four-wheel driveReference
Final drivesplanetaryReference
Differential lockrear standardReference
Steeringhydrostatic powerReference
Independent hydraulic wet disc brakesReference
Cab standard with heat and air-conditioning.Reference
Variants
5101Eutility chassisReference
5101ENnarrow chassisReference
Engine
John Deere 4.5L 4-cyl dieselReference
Engine (gross)75.3 kWReference
John Deere PowerTech 4045Reference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.5 LReference
Bore/Stroke106 x 127 mmReference
EmissionsTier 2Reference
Rated Power (gross)75.3 kWReference
Fuel systemdirect injectionReference
Air cleanerdryReference
Compression17.6:1Reference
Rated RPM2400Reference
Idle RPM825-2625Reference
Firing order1-3-4-2Reference
Starter volts12Reference
Oil capacity8.5 LReference
Coolant capacity11.4 LReference
Intake valve clearance0.356 mmReference
Exhaust valve clearance0.457 mmReference
Max power62.5 kWReference
Power at rated engine speed61.8 kWReference
Transmission
12-speed partially synchronizedReference
TransmissionPowrReverserReference
Typepartially synchronizedReference
Gears12 forward and reverseReference
Clutchwet discReference
Oil capacity43.5 LReference
Four gears in each of three ranges with reverser lever. Forward/reverse power shift. Synchronized shift between gears with clutch. Shifts between ranges are unsynchronized.Reference
PTO & Hydraulics
PTO (claimed)61.1 kWReference
PTO (tested)62.5 kWReference
Typeopen centerReference
Pressure195.0 barReference
Rear valves1 to 3Reference
Mid valves2 (optional)Reference
Pump flow60.2 lpmReference
Total flow85.2 lpmReference
Steering flow25.0 lpmReference
Steering press.131.0 barReference
Rear Type2/1Reference
Controlposition control and top-link draft sensingReference
Rear lift (at 24"/610mm)1457 kgReference
Rear PTOindependentReference
ClutchmechanicalReference
Rear PTO Type540/540EReference
Rear PTO Type540/1000 (optional)Reference
Capacities
Fuel126.8 LReference
Front hubs0.7 LReference
Front diff.4.5 LReference
Dimensions
Wheelbase217 cmReference
Weight3320 kgReference
Front tire12.4-24Reference
Rear tire18.4-30Reference
Ag front12.4-24Reference
Ag rear18.4-30Reference
Industrial front12.5/80-18Reference
Industrial rear19.5L-24Reference
Length374 cmReference
Width164 cmReference
Height (hood)137 cmReference
Height (cab)250 cmReference
Operating weight3320 kgReference
Clearance (front axle)41 cmReference
Flange axle rear axleReference
John Deere 5101E attachments
front-end loaderReference
5101E Serial Numbers
Location:Left side of tractor above front axle.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps90Reference
Charging amps120 (optional)Reference
Battery CCA950Reference
Battery volts12Reference
Attachment overview
John Deere 553 loaderReference
John Deere 563 loaderReference
Test results
Diesel 12-speed 4WDSeptember 6 - 11, 2007Link: Nebraska Tractor Test 1905A fileReference
PTO performanceReference
Fuel use20.4 l/hourReference
Fuel use21.2 l/hourReference
Speeds
With 16.9-30 rear tires.Reference
