Tractor · 2007Unverified

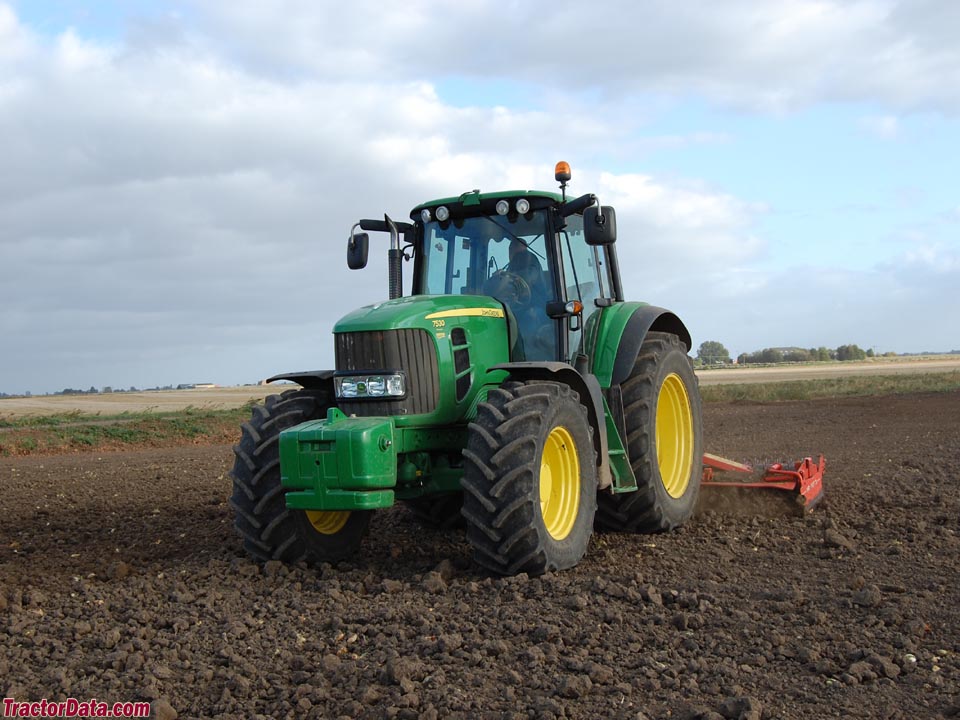

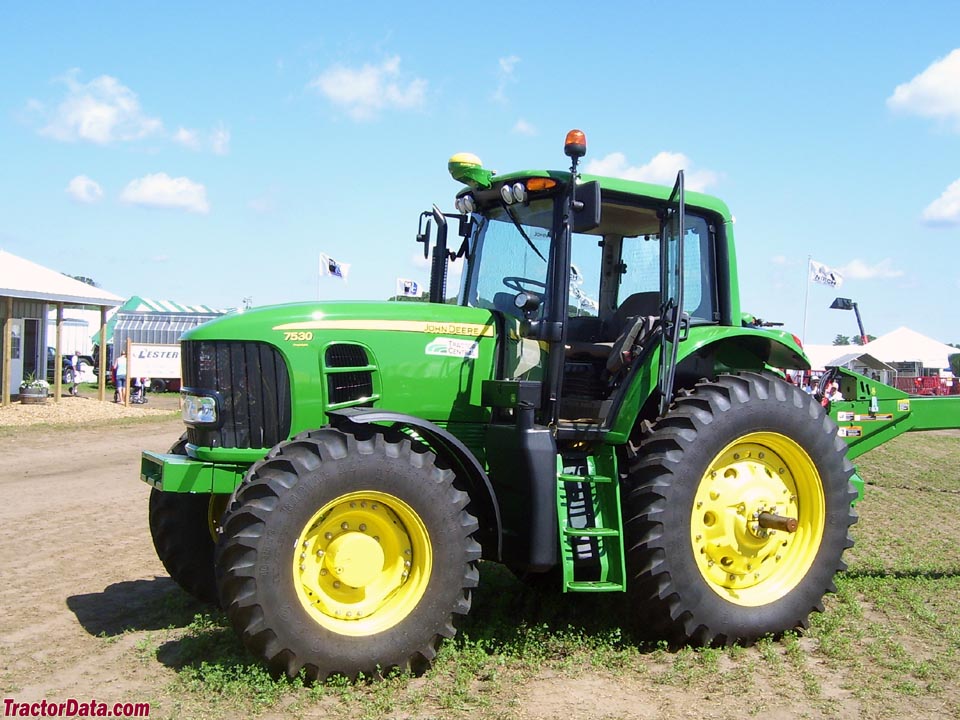

John Deere 7530 Premium
John Deere 7530 Premium — Row-Crop tractor · 180 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
180 hp
Max power
131.1 kW
Weight
6622 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Row-Crop tractorReference
FactoriesWaterloo, Iowa, USAReference
FactoriesMannheim, Baden-Württemberg, GermanyReference
Original price$135,731 (2010)Reference
The John Deere 7530 was introduced in 2007 but not available in the United States until 2009.Reference
Four-wheel driveReference
Steeringhydrostatic powerReference
Differential hydraulic wet disc brakesReference
ComfordGard cab standard. Optional Deluxe, Premium, and Premium Plus option packages add radio, automatic temperature control and hydraulic suspension.Reference
Engine
John Deere 6.8L 6-cyl dieselReference
Fuel tank350.1 LReference
Engine (gross)134.2 kWReference
Drawbar (tested)106.5 kWReference
John Deere 6068HRW77Reference
turbocharged intercooled dieselReference
6-cylinder 24-valveReference
liquid-cooledReference
Displacement6.8 LReference
Bore/Stroke106 x 127 mmReference
Rated Power (gross)134.2 kWReference
Air cleanerdual paper elementsReference
Compression17.0:1Reference
Rated RPM2100Reference
Idle RPM850-2250Reference
Operating RPM1300-2100Reference
Torque870.6 NmReference
Torque RPM1600Reference
Firing order1-5-3-6-2-4Reference
Starter volts12Reference
Starter power3.0 kWReference
Oil capacity19.7 LReference
Coolant capacity35.6 LReference
Intake valve clearance0.356 mmReference
Exhaust valve clearance0.457 mmReference
Max power131.1 kWReference
Power at rated engine speed117.5 kWReference
Max power106.5 kWReference
Transmission
16-speed partial power shiftReference
20-speed partial power shiftReference
infinitely variable transmissionReference
TransmissionPowrQuad PlusReference
Typepartial power shiftReference
Gears16 forward and reverseReference
Oil capacity56.0 LReference
Four ranges, each with four gears. Operated via range shift lever with gear shift buttons plus reverser lever. Clutch must be used to change range, clutchless power shift between gears and for direction change.Reference
TransmissionAutoQuad PlusReference
Gears20 forward and reverseReference
Five ranges, each with four gears. Operated via range shift lever with gear shift buttons plus reverser lever. Clutch must be used to change range, clutchless power shift between gears and for direction change. Automatic mode allows for computer-controlled automatic shifting to match load.Reference
TransmissionJohn Deere IVTReference
Typeinfinitely variable transmissionReference
Gearsinfinite forward and reverseReference
The IVT is operated with a right-hand speed control lever and left-hand reverser lever. The speed control lever is used to select speed in one of two ranges. A dial on the lever sets the maximum speed for the range. If a maximum speed of 2 kph or less is selected then the transmission will shift into creeper mode with a minimum speed of 0.05 kph.Reference
PTO & Hydraulics
PTO (claimed)114.1 kWReference
PTO (tested)131.1 kWReference
Typeclosed center, pressure and flow compensatedReference
Pressure216.2 barReference
Valves2 to 4Reference
Pump flow109.8 lpmReference
Rear TypeIIIReference
Rear lift (at 24"/610mm)4808 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Rear PTO Type540/540E/1000 (optional)Reference
Rear PTO Type540E/1000/1000E (optional)Reference
Front PTOindependentReference
Front PTO Type1000 (optional)Reference
Power at rated PTO speed130.2 kWReference
Dimensions
Wheelbase268 cmReference
Weight6622 kgReference
Front tire16.9R28Reference
Rear tire18.4R42Reference
Ag front16.9R28Reference
Ag rear18.4R42Reference
Length479 cmReference
Height (cab)304 cmReference
Clearance (front axle)57 cmReference
Clearance (rear axle)63 cmReference
Clearance (drawbar)53 cmReference
Rear axle91 by 2438 mmReference
Rear axle91 by 2806 mmReference
Front tread152 to 223 cmReference
Rear tread152 to 265 cmReference
Rear tread152 to 302 cmReference
Shipping6622 kgReference
Max Drawbar2449 kgReference
Max front axle5499 kgReference
Max front axle7098 kgReference
Max rear axle9498 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Capacities
Max capacity12299 kgReference
Test results
Diesel 20-speed 4WDMay 2007 - July 2007, Link: OCED Tractor Test 2453 fileReference
PTO performanceReference
Fuel use36.3 l/hourReference
Fuel use34.1 l/hourReference
Drawbar performanceReference
Fuel use34.8 l/hourReference
Max pull6955 kgReference
Speeds
With 18.4R38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
