Tractor · 1993Unverified

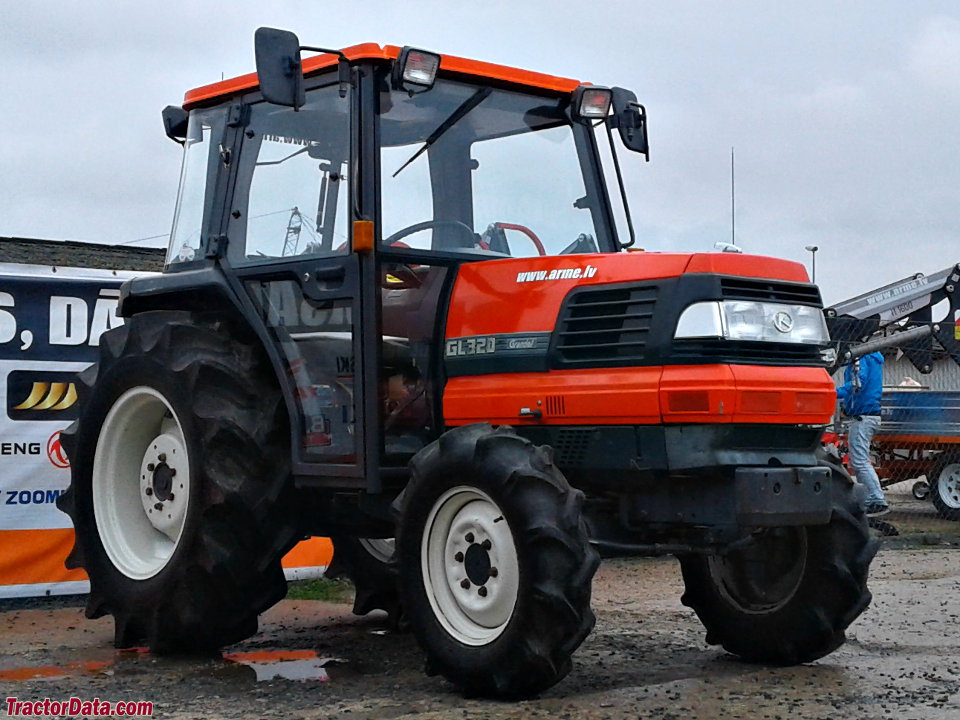

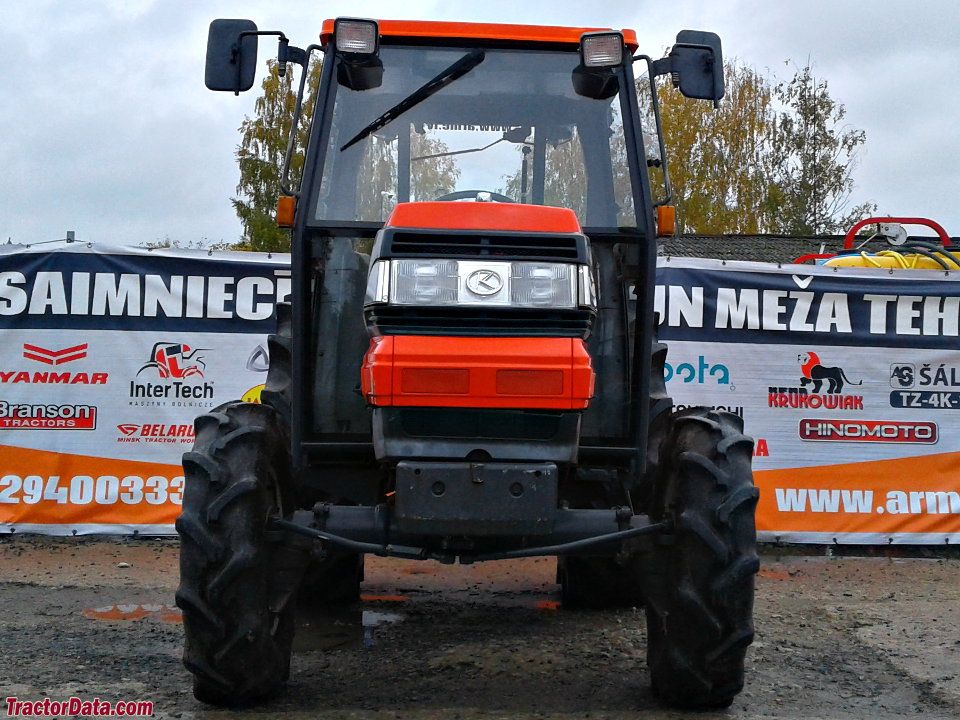

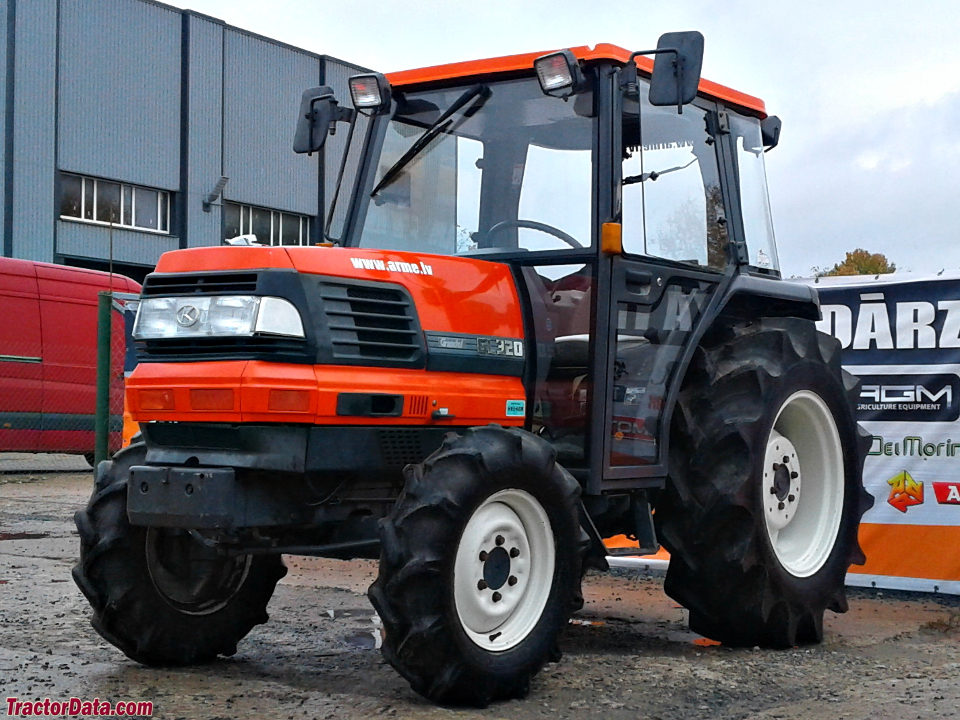

Kubota GL320
Kubota GL320 — GL Series · 29 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
29 hp
Weight
2822 to 3109 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Mechanical wet disc brakesReference
Two-post ROPS. Cab optional.Reference
Variants
GL320ROPSReference
GL320QcabReference
GL320EnarrowReference
Engine
Kubota 1.5L 3-cyl dieselReference
Fuel tank35.0 LReference
Engine23.6 kWReference
Kubota D1503Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke83 x 92 mmReference
Power23.6 kWReference
Rated RPM2800Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speed gearReference
16-speed power shiftReference
TypegearReference
Gears16 forward and reverseReference
Clutchdry discReference
Four gears (1-4) in two ranges (low/high) with additional creeper range and shuttle shift.Reference
Typepower shiftReference
PTO & Hydraulics
PTO (claimed)21.5 kWReference
Pump flow23.8 lpmReference
Rear TypeIReference
Rear lift904 kgReference
Rear PTO Type586/829/1016/1346 (1.375)Reference
Dimensions
Wheelbase175 cmReference
Weight2822 to 3109 poundsReference
Front tire8-16Reference
Rear tire13.6-24Reference
Standard tires (ag)Front: 8-16. Rear: 13.6-24Reference
Length318 cmReference
Width145 cmReference
Height (ROPS)198 cmReference
Height (cab)199 cmReference
ROPS Weight1280 kgReference
Cab Weight1410 kgReference
Ground clearance36 cmReference
Front tread113 cmReference
Rear tread110 to 157 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
