Tractor · 1991Unverified
Kubota L2650
Kubota L2650 — L50 Series · 29 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
29 hp
Weight
2380 to 2655 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Differential lockmechanical rear lockReference
SteeringpowerReference
Wet disc brakesReference
Two-post ROPS. Optional canopy.Reference
Engine
Kubota 1.4L 3-cyl dieselReference
Engine (gross)21.6 kWReference
Kubota D1402-DI-AEReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.4 LReference
Bore/Stroke84 x 81 mmReference
Power (gross)21.6 kWReference
Fuel systemdirect injectionReference
Rated RPM2600Reference
Torque89.2 NmReference
Starter volts12Reference
Coolant capacity4.6 LReference
Oil capacity5.7 LReference
Oil change200 hReference
Transmission
8-speed mechanical shuttleReference
8-speedReference
Typemechanical shuttleReference
Gears8 forward and reverseReference
Four gears (1-4) in two ranges (Low-High) with left-hand reverser lever. Gears shifted with right-hand gear shift on the console. Ranges shifted with left-hand lever beside seat. Shuttle shifting is synchronized, using the clutch and at low engine RPMs. Tractor must be stopped to shift ranges. The transmission may be equipped with a dual-stage clutch. This can be identified if the PTO shift has 1000 RPMs on the left, and 540 RPMs on the right.Reference
TransmissionKubota Glide ShiftReference
Clutchdry discReference
Oil capacity27.0 LReference
Kubota Glide Shift (GST) allows for on-the-go shifting without using the clutch. Transmission should be shifted one gear at a time using the left-hand gear lever. Forward-reverse shuttle shifting may be done without the clutch.Reference
PTO & Hydraulics
PTO (claimed)17.5 kWReference
Hydraulic system28.4 LReference
Typeopen centerReference
Capacity28.4 LReference
Pressure171.7 barReference
Pump flow31.0 lpmReference
Rear TypeIReference
Controlposition control with optional draft controlReference
Rear lift (at ends)1199 kgReference
Rear lift (at 24"/610mm)900 kgReference
Rear PTOtransmssionReference
Rear PTOlive (optional)Reference
Rear PTO Type540/1000 (1.375)Reference
Mid PTOoptionalReference
Mid PTO Type1080/2000Reference
Capacities
Fuel29.1 LReference
Dimensions
Wheelbase164 cmReference
Weight2380 to 2655 poundsReference
Front tire4.00-15Reference
Rear tire11.2-24 (2WD)Reference
Standard tires (ag)Front: 4.00-15. Rear: 11.2-24 (2WD)Reference
Standard tires (ag)Front: 7-16. Rear: 11.2-24 (4WD)Reference
Length277 cmReference
Width130 cmReference
Height (steering wheel)147 cmReference
Height (ROPS)211 cmReference
Ground clearance34 cmReference
Front tread96/105/116/125 cmReference
Front tread112 cmReference
Rear tread103/112/121/130/139 cmReference
2WD1079 kgReference
4WD1179 kgReference
GST1204 kgReference
Max Drawbar498 kgReference
Kubota L2650 attachments
60" mid-mount mower deckReference
72" mid-mount mower deckReference
snowblowerReference
bladeReference
front-end loaderReference
backhoeReference
L2650 Serial Number Location
Serial number decal on the left side of the L2650 tractor frame, above the front axle.Reference
Electrical
GroundnegativeReference
Battery CCA490Reference
Battery volts12Reference
Attachment overview
60" mid-mount mower deckReference
72" mid-mount mower deckReference
SnowblowerReference
BladeReference

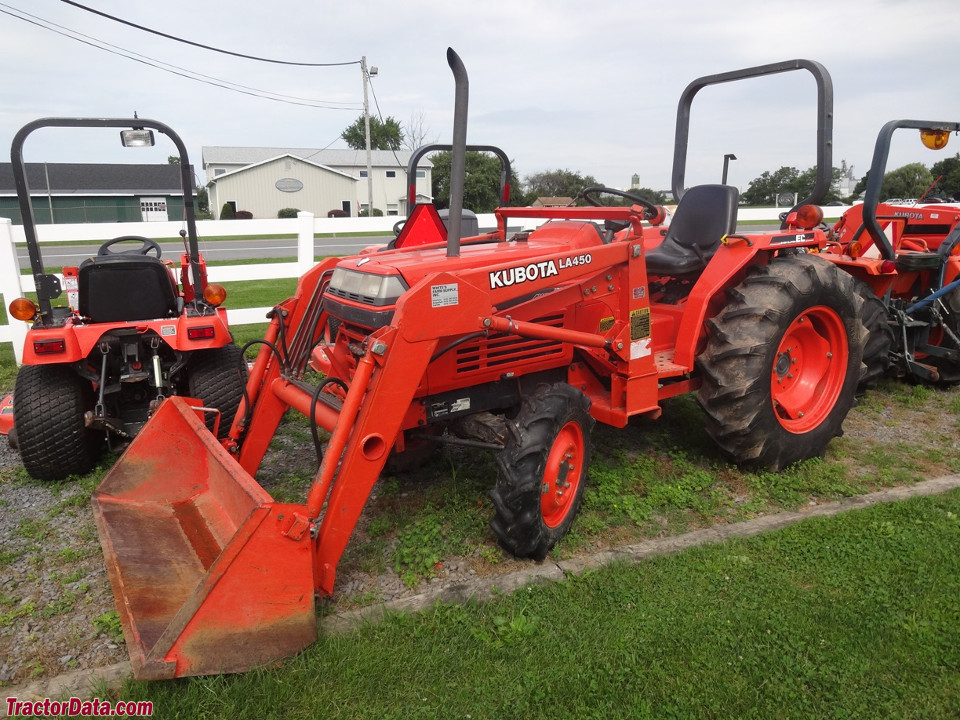

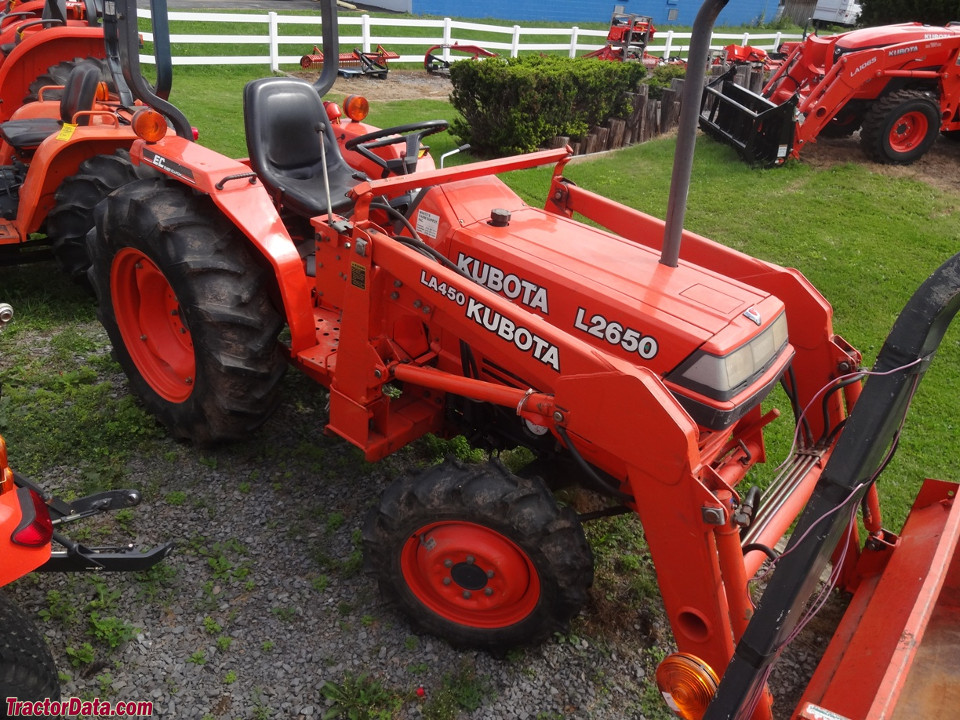

Kubota LA450 loaderReference
Kubota LA450A loaderReference
BackhoeReference
Kubota BL4520B Backhoe
Backhoe typeKubota BL4520B BackhoeReference
Transport height150 cmReference
Bucket width25 cmReference
Bucket width30 cmReference
Bucket width40 cmReference
Bucket width60 cmReference
Digging depth205 cmReference
Reach from pivot246 cmReference
Loading height151 cmReference
Bucket Rotation164°Reference
Swing Arc180°Reference
Bucket force1224 kgReference
Dipperstick force607 kgReference
Kubota L4530B Backhoe
Backhoe typeKubota L4530B BackhoeReference
Transport height180 cmReference
Bucket width25 cmReference
Bucket width30 cmReference
Bucket width40 cmReference
Bucket width60 cmReference
Digging depth243 cmReference
Reach from pivot284 cmReference
Loading height179 cmReference
Bucket Rotation194°Reference
Swing Arc180°Reference
Bucket force1310 kgReference
Dipperstick force746 kgReference
Kubota BL4590 Backhoe
Backhoe typeKubota BL4590 BackhoeReference
Transport height200 cmReference
Bucket width33 cmReference
Bucket width45 cmReference
Bucket width60 cmReference
Bucket width76 cmReference
Bucket width91 cmReference
Digging depth229 cmReference
Reach from pivot295 cmReference
Loading height200 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force1338 kgReference
Dipperstick force789 kgReference
Speeds
With 11.2-24 rear tires. Reverse speeds are about 10% slower than forward.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
