Tractor · 1995Unverified

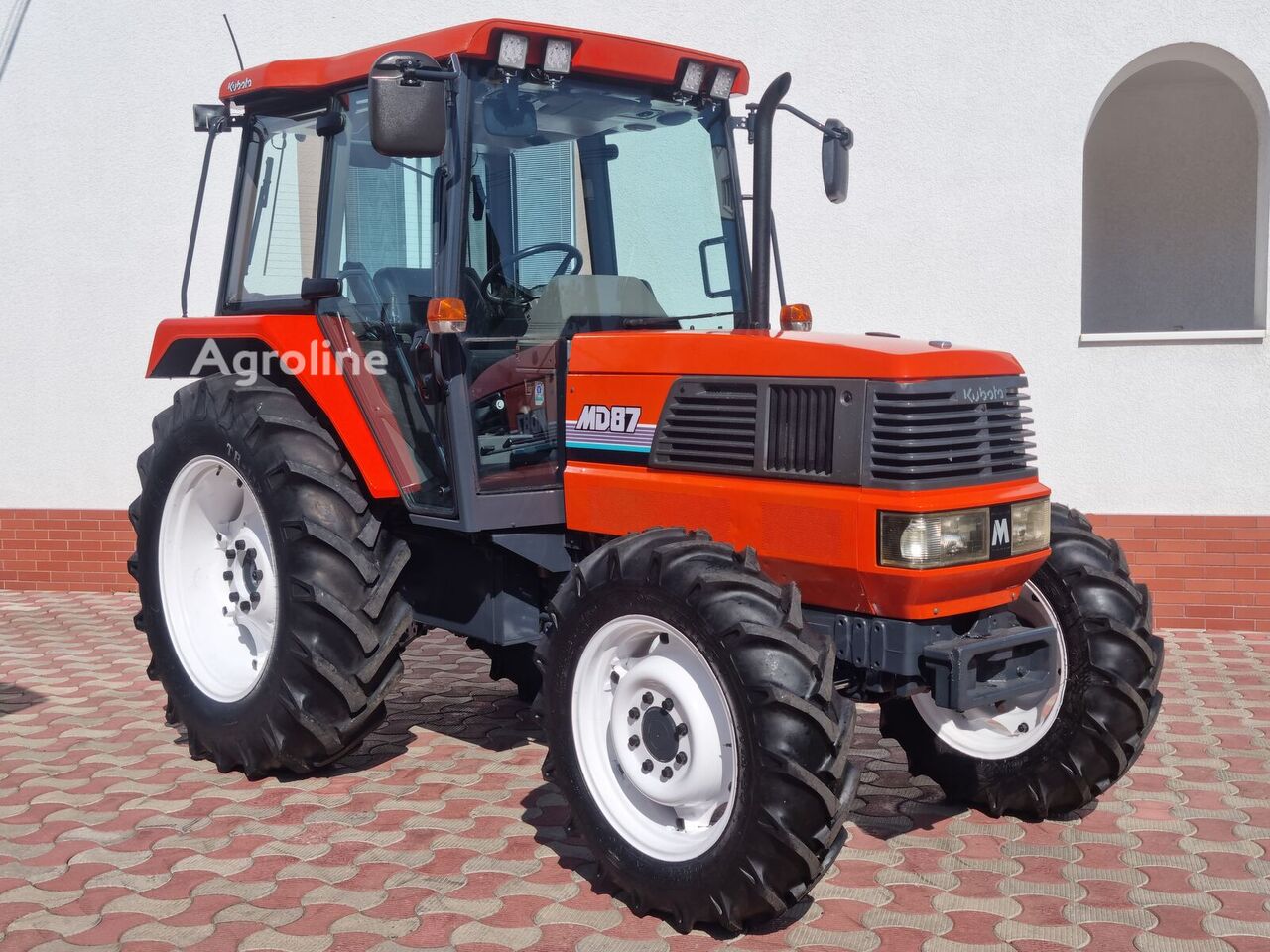

Kubota MD87
Kubota MD87 — MD Series · 81 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
81 hp
Weight
6812 to 7209 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Utility tractorReference
Four-wheel driveReference
Cab standard with air-conditioning. Optional ROPS.Reference
Engine
Kubota 4.7L 4-cyl dieselReference
Fuel tank104.8 LReference
Engine64.0 kWReference
Kubota V4702Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.7 LReference
Bore/Stroke109 x 125 mmReference
Power64.0 kWReference
Rated RPM2400Reference
Torque318.8 NmReference
Torque RPM1200Reference
StarterelectricReference
Starter volts12Reference
Oil capacity16.3 LReference
Coolant capacity14.5 LReference
Transmission
16-speedReference
24-speed creeperReference
16-speed partial power shiftReference
Gears16 forward and reverseReference
Four gears (1-4) in two ranges (low/high) with additional two-range shift.Reference
TypecreeperReference
Gears24 forward and reverseReference
Optional creeper range added to basic transmission.Reference
Typepartial power shiftReference
Eight gears in two ranges. Optional creeper range available.Reference
PTO & Hydraulics
PTO (claimed)60.5 kWReference
Pump flow60.0 lpmReference
Rear TypeIIReference
Rear lift2034 kgReference
Rear lift2585 kgReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@2035Reference
Engine RPM1000@2211Reference
Dimensions
Wheelbase230 cmReference
Weight6812 to 7209 poundsReference
Front tire9.5-24Reference
Rear tire13.9-36Reference
Standard tires (ag)Front: 9.5-24. Rear: 13.9-36Reference
Length388 cmReference
Width187 cmReference
Height261 cmReference
ROPS Weight3089 kgReference
Cab Weight3270 kgReference
Ground clearance43 cmReference
Front tread133 to 151 cmReference
Rear tread132 to 192 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
