Tractor · 1978Unverified

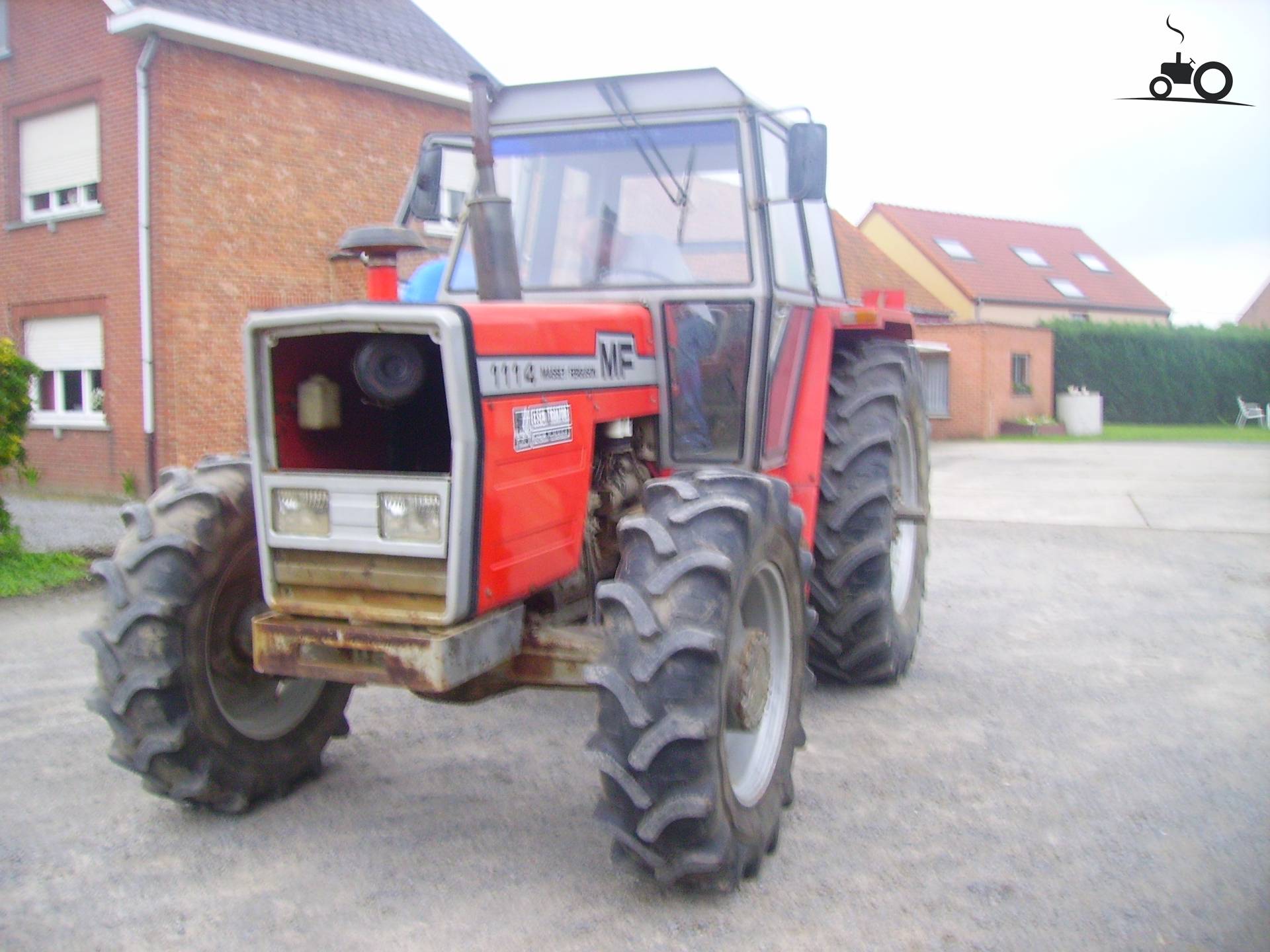

Massey Ferguson 1114

Name: Massey Ferguson 1114
Brand: Massey Ferguson

Massey Ferguson 1114 — Row-Crop tractor · 110 hp. Reference specifications; pending source verification.

The Massey Ferguson 1114 tractor is rated at 110 hp, positioning it roughly in the middle of its class in terms of power output. Manufactured from 1978 to 1990, this model features a 6-cylinder diesel liquid-cooled engine, which transmits power through a 12-speed gearbox to its four-wheel drive system. The listed weight of the tractor ranges from 10694 to 11775 pounds. It is intended for use on landholdings of approximately 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

110 hp

Weight

10694 to 11775 pounds

Catalogue coverage

Variants represented

Richest spec table

44 rows

Recorded power

110 hp

Recorded weight

4850 kg

Transmissions

12-speed partially synchronized

Production years

1978-1990

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

DistributorMassey FergusonReference

ManufacturerLandiniReference

Row-Crop tractorReference

Two- or four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Cab standardReference

Engine

Perkins 5.8L 6-cyl dieselReference

Fuel tank199.8 LReference

Engine82.0 kWReference

Perkins A6.354Reference

dieselReference

6-cylinderReference

liquid-cooledReference

Displacement5.8 LReference

Bore/Stroke98 x 127 mmReference

Power82.0 kWReference

Rated RPM2400Reference

Torque374.1 NmReference

Torque RPM1400Reference

Transmission

12-speed partially synchronizedReference

Typepartially synchronizedReference

Gears12 forward and 4 reverseReference

PTO & Hydraulics

Total flow62.1 lpmReference

Rear TypeIII/IIReference

Rear lift4800 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Dimensions

Wheelbase279 cmReference

Weight10694 to 11775 poundsReference

Front tire11.00-16Reference

Rear tire18.4-38Reference

Ag front11.00-16Reference

Ag rear18.4-38Reference

Ag front13.6-28Reference

Length469 cmReference

Width241 cmReference

Height (cab)290 cmReference

Height (exhaust)315 cmReference

Weight4850 kgReference

Weight5341 kgReference

Ground clearance44 cmReference

Front tread180 cmReference

Rear tread184 to 230 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
