Tractor · 1978Unverified
Massey Ferguson 1134
Massey Ferguson 1134 — Row-Crop tractor · 132 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
132 hp
Weight
11135 to 12458 pounds
Hover a source tag to verify
Overview
DistributorMassey FergusonReference
ManufacturerLandiniReference
Row-Crop tractorReference
Two- or four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Cab standardReference
Engine
Perkins 5.8L 6-cyl dieselReference
Fuel tank199.8 LReference
Engine98.4 kWReference
Perkins AT6.354.4Reference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement5.8 LReference
Bore/Stroke98 x 127 mmReference
Power98.4 kWReference
Rated RPM2400Reference
Torque461.0 NmReference
Torque RPM1600Reference

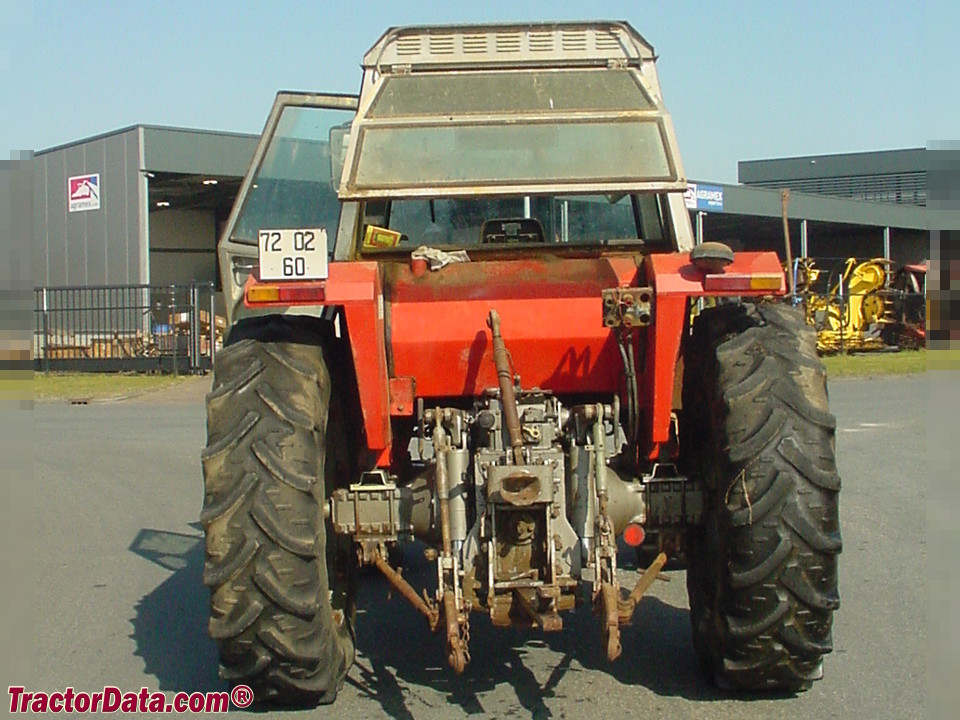

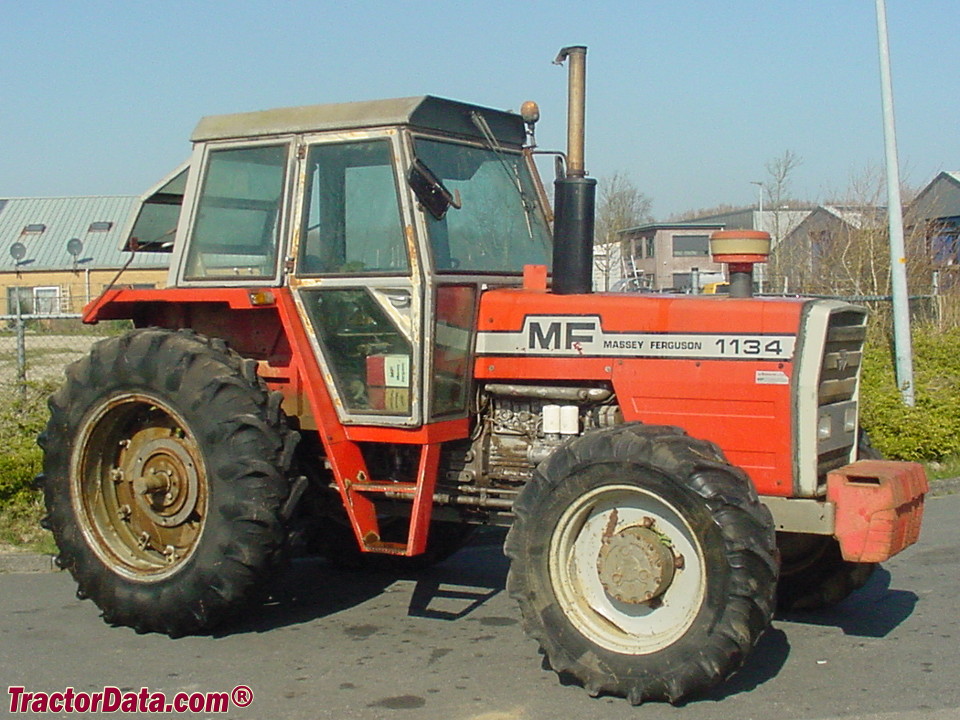

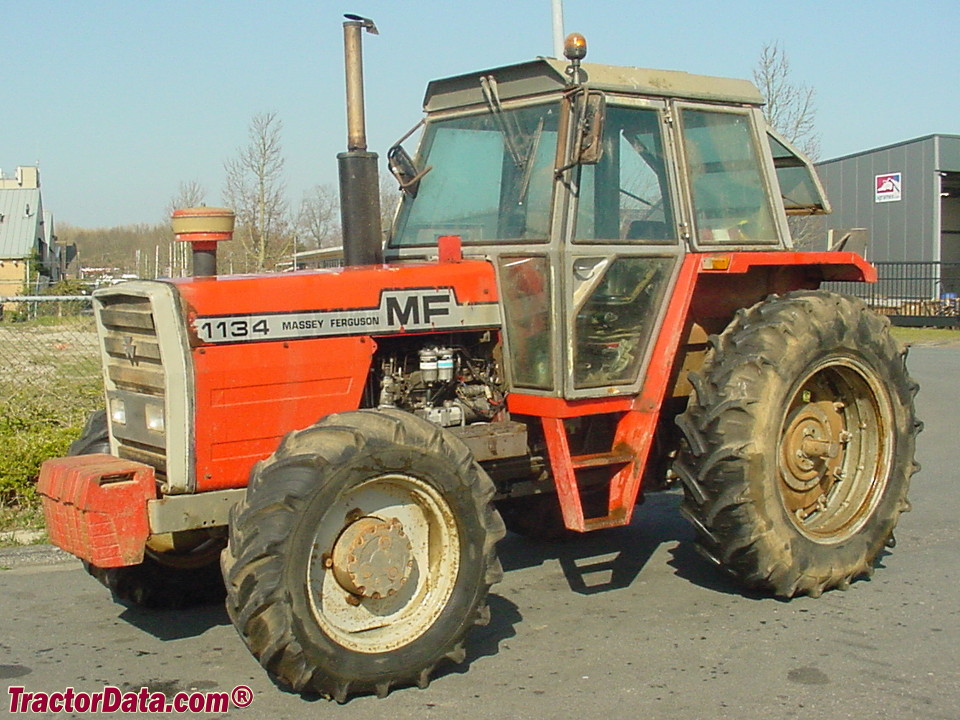

Image courtesy of Beukeveld Exports BVReference
Transmission
12-speed partially synchronizedReference
Typepartially synchronizedReference
Gears12 forward and 4 reverseReference
PTO & Hydraulics
Total flow62.1 lpmReference
Rear TypeIII/IIReference
Rear lift4800 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase279 cmReference
Weight11135 to 12458 poundsReference
Front tire11.00-16Reference
Rear tire18.4-38Reference
Ag front11.00-16Reference
Ag rear18.4-38Reference
Ag front13.6-28Reference
Length469 cmReference
Width241 cmReference
Height (cab)290 cmReference
Height (exhaust)315 cmReference
Weight5050 kgReference
Weight5650 kgReference
Ground clearance44 cmReference
Front tread180 cmReference
Rear tread184 to 230 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
