Tractor · 1999Unverified

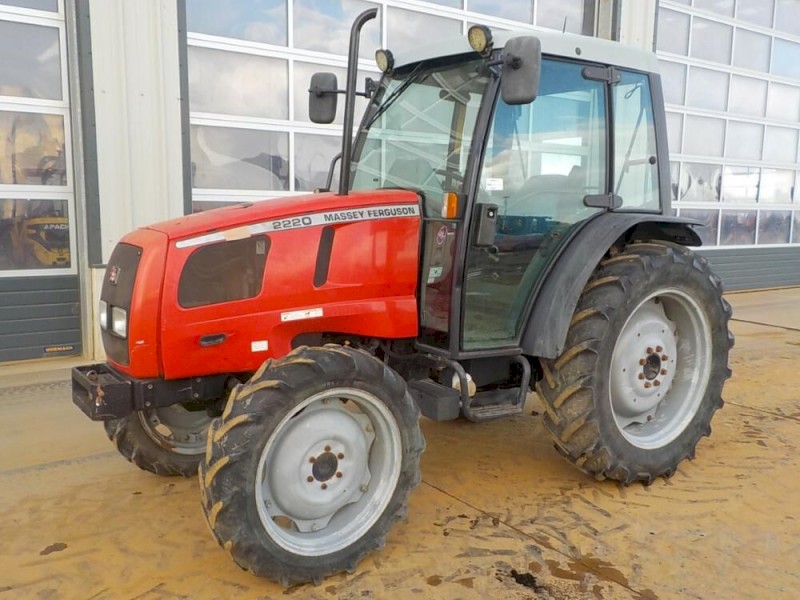

Massey Ferguson 2220
Massey Ferguson 2220 — Utility tractor · 58 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
58 hp
Max power
43.6 kW
Weight
2245 kg
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Utility tractorReference
Original price$35,000Reference
Four-wheel driveReference
Steeringhydrostatic powerReference
Independent hydraulic wet disc brakesReference
Engine
Perkins 2.7L 3-cyl dieselReference
Engine47.0 kWReference
PerkinsReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.7 LReference
Bore/Stroke95 x 127 mmReference
Power47.0 kWReference
Air cleanerdual paper elementsReference
Compression17.3:1Reference
Rated RPM2250Reference
Starter volts12Reference
Coolant capacity10.0 LReference
Max power43.6 kWReference
Power at rated engine speed43.5 kWReference
Transmission
12-speedReference
Gears12 forward and reverseReference
PTO & Hydraulics
PTO (claimed)43.3 kWReference
PTO (tested)43.6 kWReference
Hydraulic system35.2 LReference
Capacity35.2 LReference
Valves2Reference
Pump flow29.9 lpmReference
Rear TypeIIReference
Rear lift (at ends)2099 kgReference
Rear lift (at ends)3396 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Power at rated PTO speed42.8 kWReference
Capacities
Fuel53.0 LReference
Dimensions
Wheelbase200 cmReference
Weight2245 kgReference
Front tire11.2R20Reference
Rear tire14.9R28Reference
Ag front11.2R20Reference
Ag rear14.9R28Reference
Operating weight2245 kgReference
Test results
Diesel 12-speed 4WDMay 10 - 18, 2001Link: Nebraska Tractor Test 1793 fileReference
PTO performanceReference
Fuel use14.0 l/hourReference
Fuel use13.6 l/hourReference
Fuel use12.9 l/hourReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
