Tractor · 1983Unverified

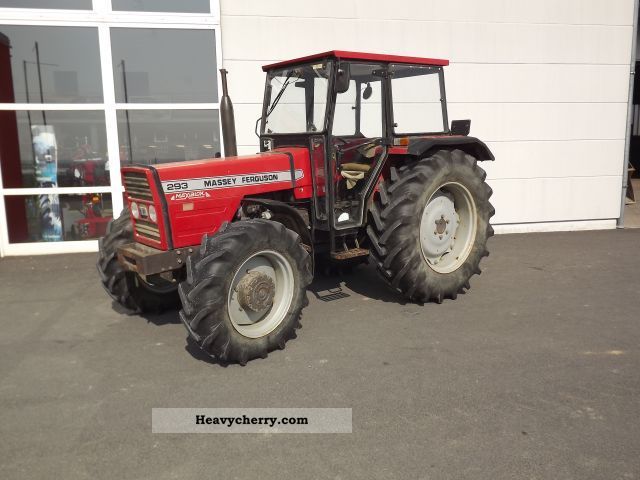

Massey Ferguson 293
Massey Ferguson 293 — 203 Series · 74 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
74 hp
Weight
6030 to 6559 pounds
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Utility tractorReference
Built in ItalyReference
Two- or four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Four-post ROPS. Cab available.Reference
Variants
8830similar Landini modelReference
Engine
Perkins 4.1L 4-cyl dieselReference
Fuel tank60.9 LReference
Engine55.0 kWReference
Perkins A4.248Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.1 LReference
Bore/Stroke101 x 127 mmReference
Power55.0 kWReference
Rated RPM2200Reference
Torque276.6 NmReference
Torque RPM1380Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed synchromeshReference
TypesynchromeshReference
Gears12 forward and 4 reverseReference
Four synchronized gears in three ranges, plus reverse range.Reference
PTO & Hydraulics
Typeopen centerReference
Pressure170.1 barReference
Pump flow36.0 lpmReference
Rear TypeIIReference
Rear lift2650 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@1944Reference
Engine RPM1000@1916Reference
Dimensions
2WD Wheelbase224 cmReference
4WD Wheelbase220 cmReference
Weight6030 to 6559 poundsReference
Front tire7.50-20Reference
2WD Rear tire13.6-36Reference
2WD Standard tires (ag)Front: 7.50-20. Rear: 13.6-36Reference
4WD Standard tires (ag)Front: 12.4-24. Rear: 13.6-36Reference
4WD Optional tires (ag)Front: 16.9-34. Rear: 13.6-38Reference
2WD Length370 cmReference
4WD Length377 cmReference
Width193 cmReference
Height235 cmReference
2WD Ground clearance53 cmReference
4WD Ground clearance41 cmReference
2WD2735 kgReference
4WD2975 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Capacities
Max capacity5000 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
