Tractor · 1982Unverified

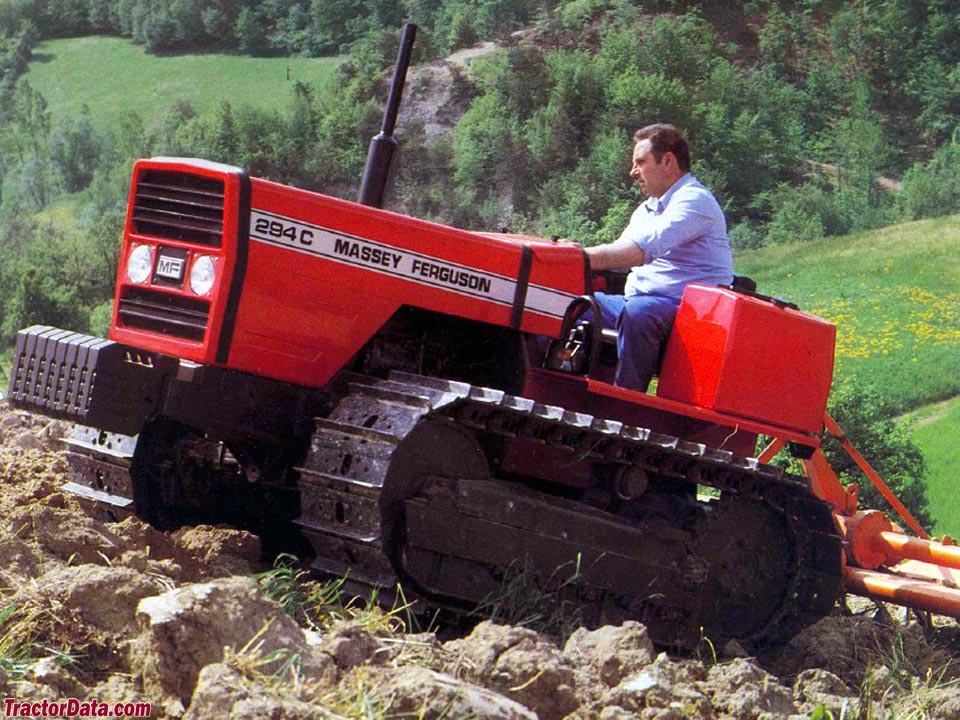

Massey Ferguson 294C
Massey Ferguson 294C — Agricultural Crawler tractor · 74 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
74 hp
Weight
3915 kg
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Agricultural Crawler tractorReference
DrivecrawlerReference
Final drivesbull gearReference
Steeringmechanical dry clutchesReference
Mechanical dry band brakesReference
Open operator station.Reference
Engine
Perkins 4.1L 4-cyl dieselReference
Fuel tank79.9 LReference
Engine55.2 kWReference
Perkins A4.248Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.1 LReference
Bore/Stroke101 x 127 mmReference
Power55.2 kWReference
Fuel systemdirect injectionReference
Rated RPM2100Reference
Torque288.8 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Starter power2.2 kWReference
Oil capacity7.1 LReference
Coolant capacity15.0 LReference
Transmission
8-speed gearReference
TypegearReference
Gears8 forward and 4 reverseReference
Clutch280mm discReference
Oil capacity14.0 LReference
PTO & Hydraulics
Typeopen centerReference
Pressure148.1 barReference
Pump flow35.6 lpmReference
Pump flow46.2 lpmReference
Rear TypeIIReference
Controlposition, response, and draft controlReference
Rear lift (at ends)2399 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@1944Reference
Dimensions
Weight3915 kgReference
TracksReference
Length309 cmReference
Width172 cmReference
Height (hood)133 cmReference
Height (exhaust)212 cmReference
Ground clearance34 cmReference
Gauge132 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps45Reference
Battery volts12Reference
Battery AH100Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
