Tractor · 1978Unverified

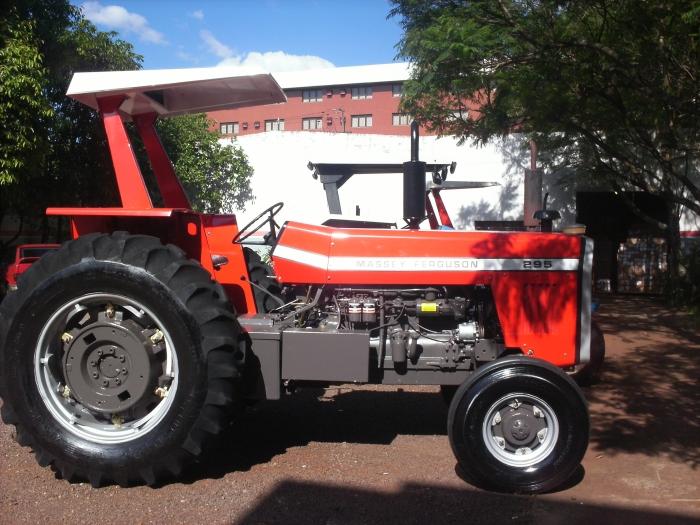

Massey Ferguson 295
Massey Ferguson 295 — Row-Crop tractor · 74 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
74 hp
Weight
3800 kg
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Row-Crop tractorReference
Two-wheel driveReference
Power steeringReference
Mechnical wet disc brakesReference
Two-post ROPS.Reference
Engine
Perkins 5.9L 6-cyl dieselReference
Fuel tank152.9 LReference
Engine78.3 kWReference
Perkins A6.358Reference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement5.9 LReference
Bore/Stroke104 x 114 mmReference
Power78.3 kWReference
Fuel systemdirect injectionReference
Air cleanerdual dry elementReference
Compression14:1Reference
Rated RPM2200Reference
Torque350.1 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Oil capacity13.0 LReference
Coolant capacity22.1 LReference
Transmission
8-speedReference
Gears8 forward and 2 reverseReference
Clutch330mm cerametallic discReference
Oil capacity38.0 LReference
PTO & Hydraulics
PTO (claimed)55.2 kWReference
Pressure206.0 barReference
Pump flow17.0 lpmReference
Rear lift2500 kgReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@1700Reference
Dimensions
Wheelbase247 cmReference
Weight3800 kgReference
Front tire9.00x16Reference
Rear tire18.4/15-34Reference
Ag front9.00x16Reference
Ag rear18.4/15-34Reference
Ag rear23.1/18-26Reference
Length414 cmReference
Height (steering wheel)180 cmReference
Front tread137 to 199 cmReference
Rear tread141 to 233 cmReference
Electrical
Charging systemalternatorReference
Charging amps35Reference
Battery volts12Reference
Battery AH135Reference
Speeds
With 18.4x34 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
