Tractor · 1992Unverified

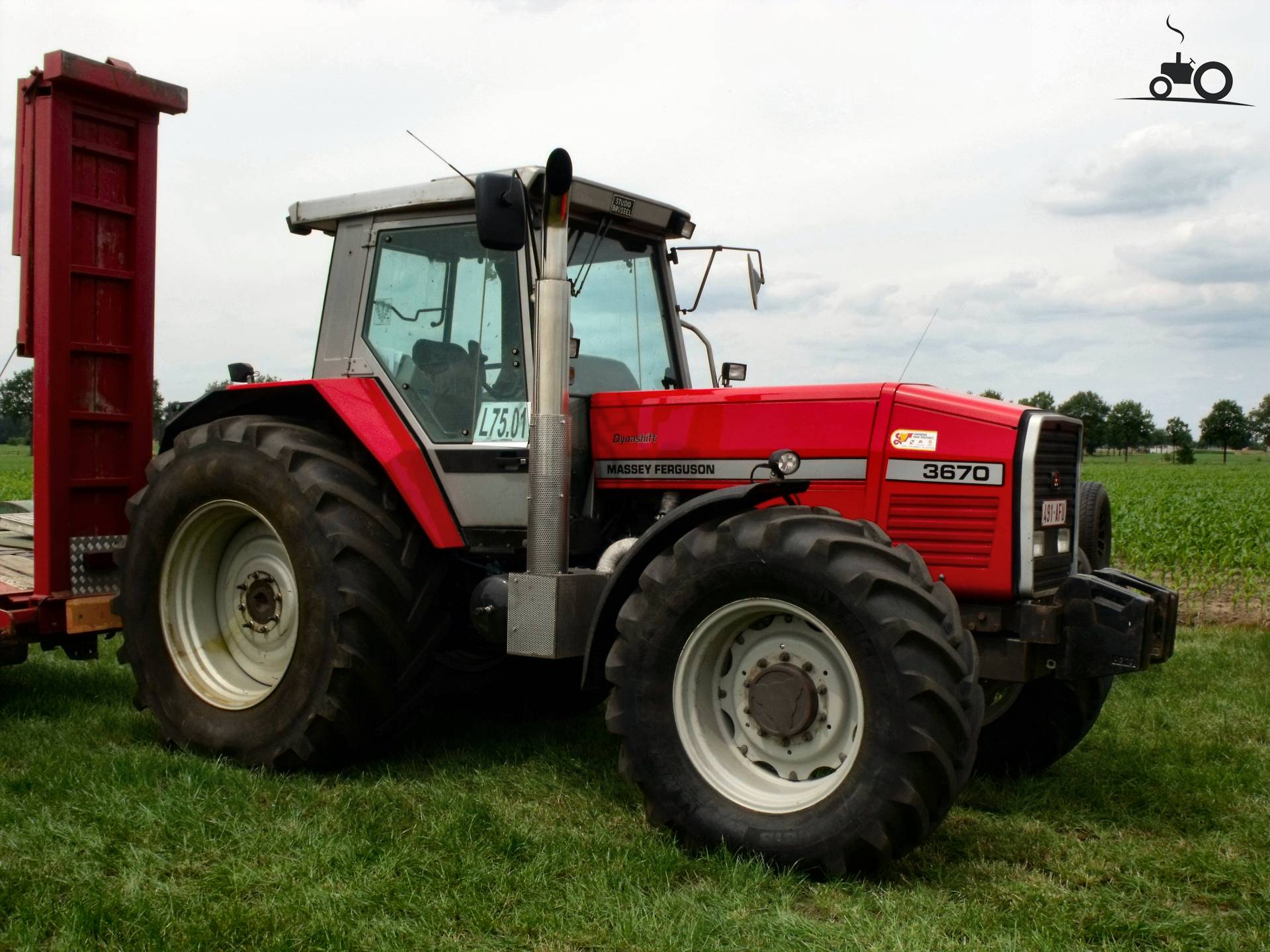

Massey Ferguson 3670
Massey Ferguson 3670 — Row-Crop tractor · 154 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
154 hp
Weight
12736 to 13816 pounds
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Row-Crop tractorReference
Built in Beauvais, FranceReference
Original price$68,100 (1994)Reference
Two- or four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
Valmet 6.6L 6-cyl dieselReference
Valmet 620DSReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.6 LReference
Bore/Stroke108 x 120 mmReference
Cooling systemviscous fanReference
Air cleanerdryReference
Rated RPM2200Reference
Starter volts12Reference
Oil capacity20.8 LReference
Coolant capacity26.9 LReference
Transmission
16-speed two-speed power shiftReference
32-speed four-speed power shiftReference
TransmissionSpeedshiftReference
Typetwo-speed power shiftReference
Gears16 forward and reverseReference
Clutch310mm discReference
TransmissionDynashiftReference
Typefour-speed power shiftReference
Gears32 forward and reverseReference
Four synchronized gears with two-speed high-low and a four-speed power shift. The Dynashift was introduced for the 1993 model year as the standard transmission.Reference
PTO & Hydraulics
PTO (claimed)114.8 kWReference
Hydraulic system74.9 LReference
Capacity74.9 LReference
Pressure17.0 barReference
Pressure180.0 barReference
Pressure180.0 barReference
Valves2 or 3Reference
Pump flow20.8 lpmReference
Pump flow53.4 lpmReference
Pump flow50.0 lpmReference
Rear TypeIIReference
Controlposition and electronic draft controlReference
Rear lift (at 24"/610mm)4536 kgReference
Rear PTOindependentReference
Rear PTO Type1000Reference
Capacities
Fuel306.6 LReference
Dimensions
2WD Wheelbase293 cmReference
4WD Wheelbase292 cmReference
Weight12736 to 13816 poundsReference
Front tire14L-16Reference
Rear tire20.8R38 (2WD)Reference
Standard tires (ag)Front: 14L-16. Rear: 20.8R38 (2WD)Reference
Standard tires (ag)Front: 16.9R28. Rear: 20.8R38 (4WD)Reference
2WD Length539 cmReference
4WD Length537 cmReference
Width240 cmReference
Height (cab)289 cmReference
2WD Weight5777 kgReference
4WD Weight6266 kgReference
Ground clearance43 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
