Tractor · 2004Unverified

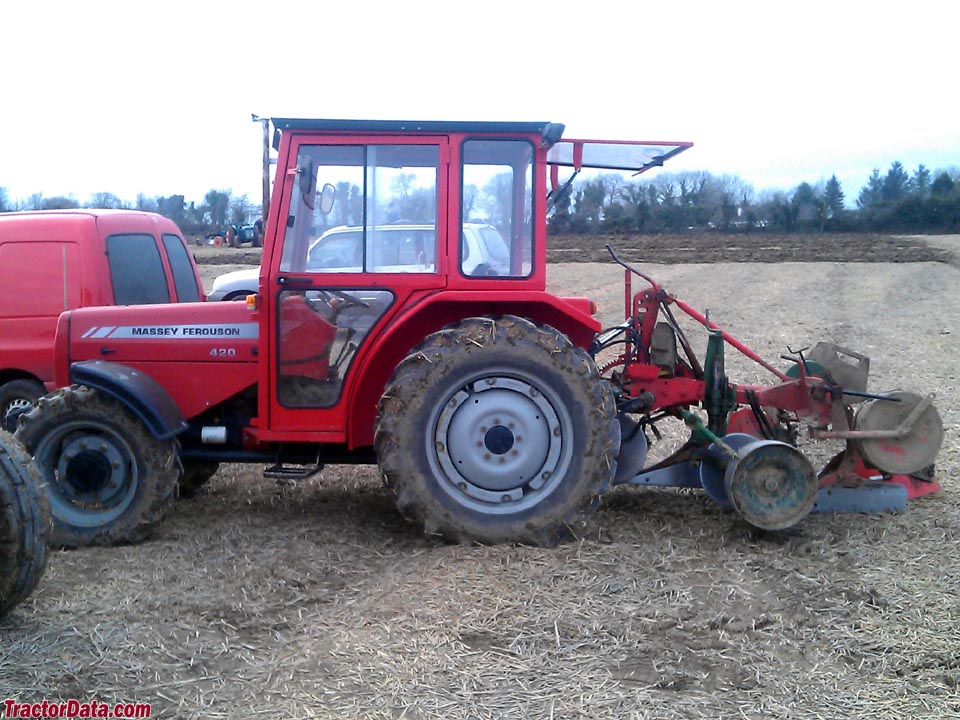

Massey Ferguson 420

Name: Massey Ferguson 420
Brand: Massey Ferguson

Massey Ferguson 420 — 400 Series · 64 hp. Reference specifications; pending source verification.

The Massey Ferguson 420 is a compact tractor with a rated output of 64 hp, produced from 2004 to 2008. It features a 3-cylinder turbocharged diesel liquid-cooled engine, driving through four-wheel drive with a hydrostatic transmission. The listed weight of the tractor is 5016 to 6338 pounds. It is suitable for jobs of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

64 hp

Weight

5016 to 6338 pounds

Catalogue coverage

Variants represented

Richest spec table

56 rows

Recorded power

64 hp

Transmissions

8-speed synchro shuttle

Production years

2004-2008

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey FergusonReference

Utility tractorReference

Two- or four-wheel driveReference

Steeringhydrostatic powerReference

Hydraulic wet disc brakesReference

Trailer brakeshydraulic (optional)Reference

Two-post foldable ROPS. Cab optional.Reference

Engine

Perkins 3.3L 3-cyl dieselReference

Engine47.7 kWReference

Perkins 1103C 33TReference

turbocharged dieselReference

3-cylinderReference

liquid-cooled inlineReference

Displacement3.3 LReference

Bore/Stroke105 x 127 mmReference

Power47.7 kWReference

Air cleanerdual dry elementReference

Rated RPM2200Reference

Torque270.0 NmReference

Torque RPM1400Reference

StarterelectricReference

Starter volts12Reference

Transmission

8-speed synchro shuttleReference

Typesynchro shuttleReference

Gears8 forward and reverseReference

Clutch305mm cerametalicReference

Capacities

Fuel48.1 LReference

PTO & Hydraulics

Hydraulic system42.0 LReference

Capacity42.0 LReference

Pressure175.0 barReference

Valves1 or 2Reference

Pump flow52.6 lpmReference

Rear Type2/1Reference

Controldraft, position and response controlReference

Rear lift (at ends)1789 kgReference

Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Engine RPM540@1789Reference

Dimensions

2WD Wheelbase205 cmReference

4WD Wheelbase212 cmReference

Weight5016 to 6338 poundsReference

Front tire6.00-16Reference

Rear tire13.6-28 (2WD)Reference

Standard tires (ag)Front: 6.00-16. Rear: 13.6-28 (2WD)Reference

Standard tires (ag)Front: 280/70R20. Rear: 13.6-28 (4WD)Reference

2WD Length351 cmReference

4WD Length357 cmReference

Height (ROPS)237 cmReference

Height (Folded ROPS)181 cmReference

Height (cab)237 cmReference

2WD ROPS Operating2275 kgReference

2WD cab Operating2505 kgReference

4WD ROPS Operating2575 kgReference

4WD cab Operating2874 kgReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
