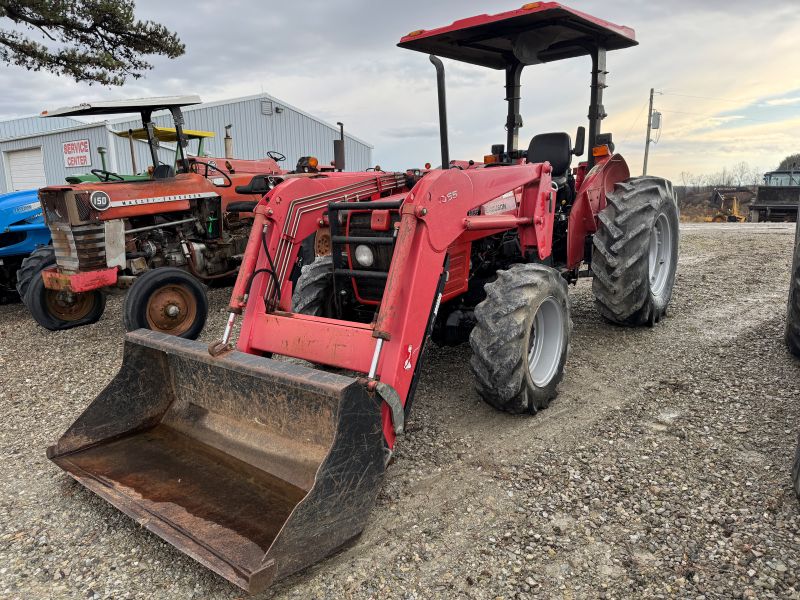

Massey Ferguson 563
Massey Ferguson 563 — 500 Series · 64 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
64 hp
Weight
4962 to 5456 pounds
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Utility tractorReference
Built in TurkeyReference
Two- or four-wheel driveReference
Final drivesplanetaryReference
Power steeringReference
Wet disc brakesReference
Two-post foldable ROPS.Reference
Engine
Perkins 3.3L 3-cyl dieselReference
Engine (gross)47.7 kWReference
Perkins 1103C-33TReference
turbocharged dieselReference
3-cylinderReference
liquid-cooledReference
Displacement3.3 LReference
Bore/Stroke105 x 127 mmReference
Power (gross)47.7 kWReference
Rated RPM2200Reference
Starter volts12Reference
Oil capacity6.8 LReference
Coolant capacity10.0 LReference
Transmission
8-speedReference
TransmissiongearReference
Gears8 forward and 2 reverseReference
Clutch305mm dry discReference
TransmissionshuttleReference
Gears8 forward and reverseReference
PTO & Hydraulics
PTO (claimed)41.0 kWReference
Hydraulic system34.8 LReference
Typeopen centerReference
Capacity34.8 LReference
Valves2Reference
Pump flow50.7 lpmReference
Total flow71.5 lpmReference
Rear TypeI/IIReference
Rear lift (at 24"/610mm)1229 kgReference
Rear PTOliveReference
Rear PTOindependentReference
Rear PTO Type540Reference
Capacities
Fuel48.1 LReference
Dimensions
Wheelbase194 cmReference
Weight4962 to 5456 poundsReference
Front tire9.5L-15Reference
2WD Rear tire14.9-24Reference
2WD Standard tires (ag)Front: 9.5L-15. Rear: 14.9-24Reference
4WD Standard tires (ag)Front: 12.5/80-18. Rear: 14.9-24Reference
Length322 cmReference
Width169 cmReference
Height234 cmReference
2WD Shipping weight2250 kgReference
4WD Shipping weight2474 kgReference
Ground clearance33 cmReference
2WD Front tread124 to 175 cmReference
4WD Front tread121 to 162 cmReference
Rear tread132 to 193 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
