Tractor · 2025Unverified

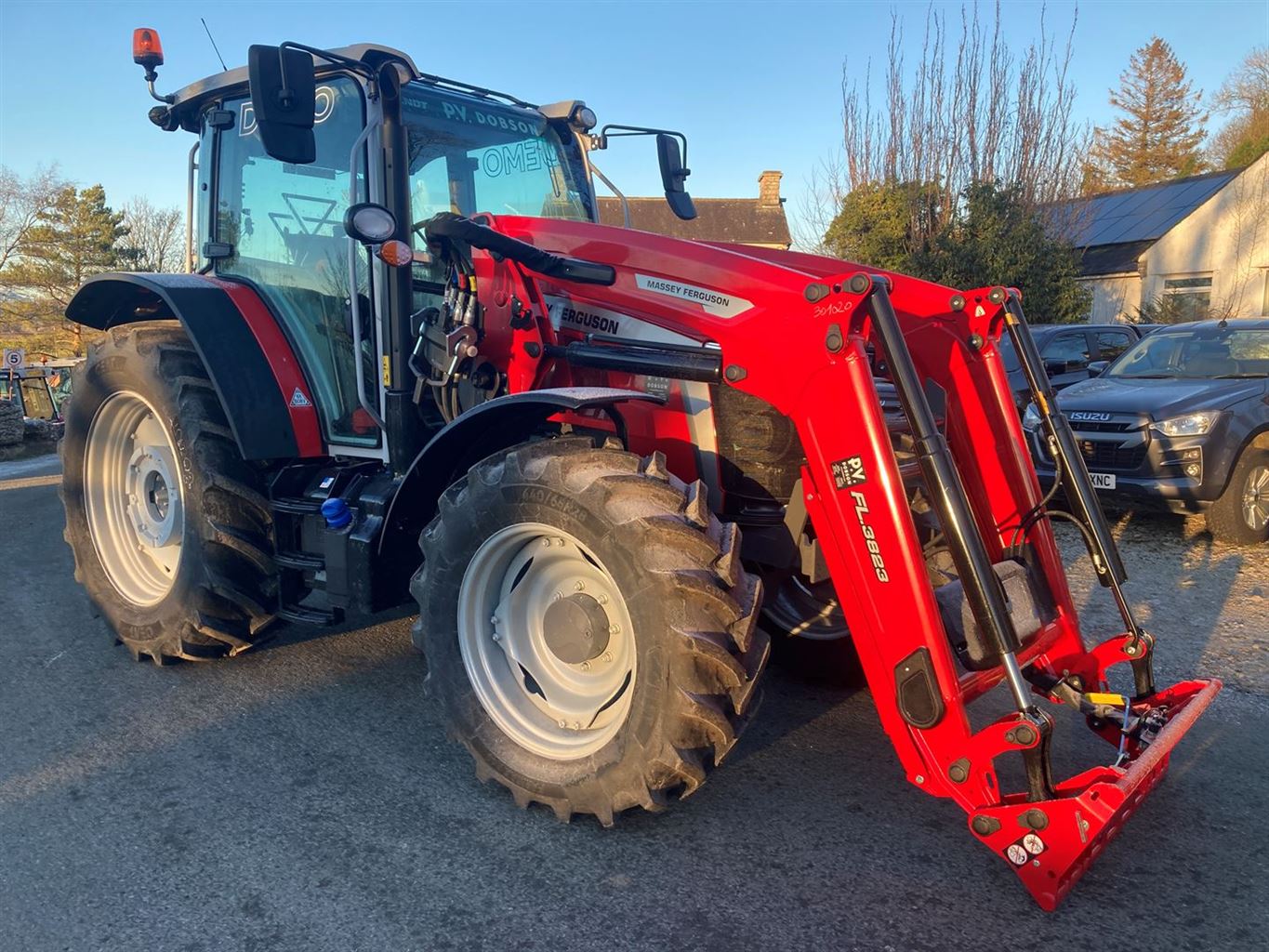

Massey Ferguson 5M.125

Name: Massey Ferguson 5M.125
Brand: Massey Ferguson

Massey Ferguson 5M.125 — 5M Series · 125 hp. Reference specifications; pending source verification.

The Massey Ferguson 5M.125 is a 125 hp tractor model, categorised as a high-powered machine within its class. Manufactured in 2025, it features a 4-cylinder turbocharged intercooled diesel liquid-cooled engine, coupled with a powershift transmission and four-wheel drive. The listed weight of the 5M.125 is 4500 kg, and it is suited to tasks covering approximately 200-800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

125 hp

Weight

4500 kg

Catalogue coverage

Variants represented

Richest spec table

55 rows

Recorded power

125 hp

Recorded weight

4500 kg

Transmissions

16-speed four-speed power shift

Production years

2025-2025

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey Ferguson (a part of AGCO)Reference

Utility tractorReference

Four-wheel driveReference

Differential lockelectro-hydraulicReference

Power steeringReference

Hydraulic wet disc brakesReference

Trailer brakeshydraulicReference

Trailer brakespneumaticReference

Cab standard with available air-conditioning.Reference

Engine

AGCO Power 4.4L 4-cyl dieselReference

Fuel tank198.0 LReference

Exhaust fluid (DEF)18.2 LReference

Engine89.5 kWReference

Engine (max)93.2 kWReference

AGCO PowerReference

turbocharged intercooled dieselReference

4-cylinder 16-valveReference

liquid-cooledReference

Displacement4.4 LReference

Bore/Stroke108 x 120 mmReference

EmissionsTier IVReference

Power89.5 kWReference

Maximum Power93.2 kWReference

Rated RPM2200Reference

Torque520.7 NmReference

Torque RPM1500Reference

StarterelectricReference

Starter volts12Reference

Transmission

16-speed four-speed power shiftReference

TransmissionDyna-4Reference

Typefour-speed power shiftReference

Gears16 forward and reverseReference

Four power shift speeds in four ranges with power shuttle.Reference

PTO & Hydraulics

Typeopen centerReference

Pressure200.0 barReference

Valves2 or 3Reference

Pump flow57.9 lpmReference

Pump flow99.9 lpmReference

Steering flow32.2 lpmReference

Rear TypeIIIReference

Rear lift5200 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000 (1.375)Reference

Engine RPM540@2000Reference

Engine RPM540E@1550Reference

Engine RPM1000@2000Reference

Dimensions

Wheelbase262 cmReference

Weight4500 kgReference

Length430 cmReference

Width179 cmReference

Height (cab)273 cmReference

Ground clearance52 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
