Tractor · 2004Unverified

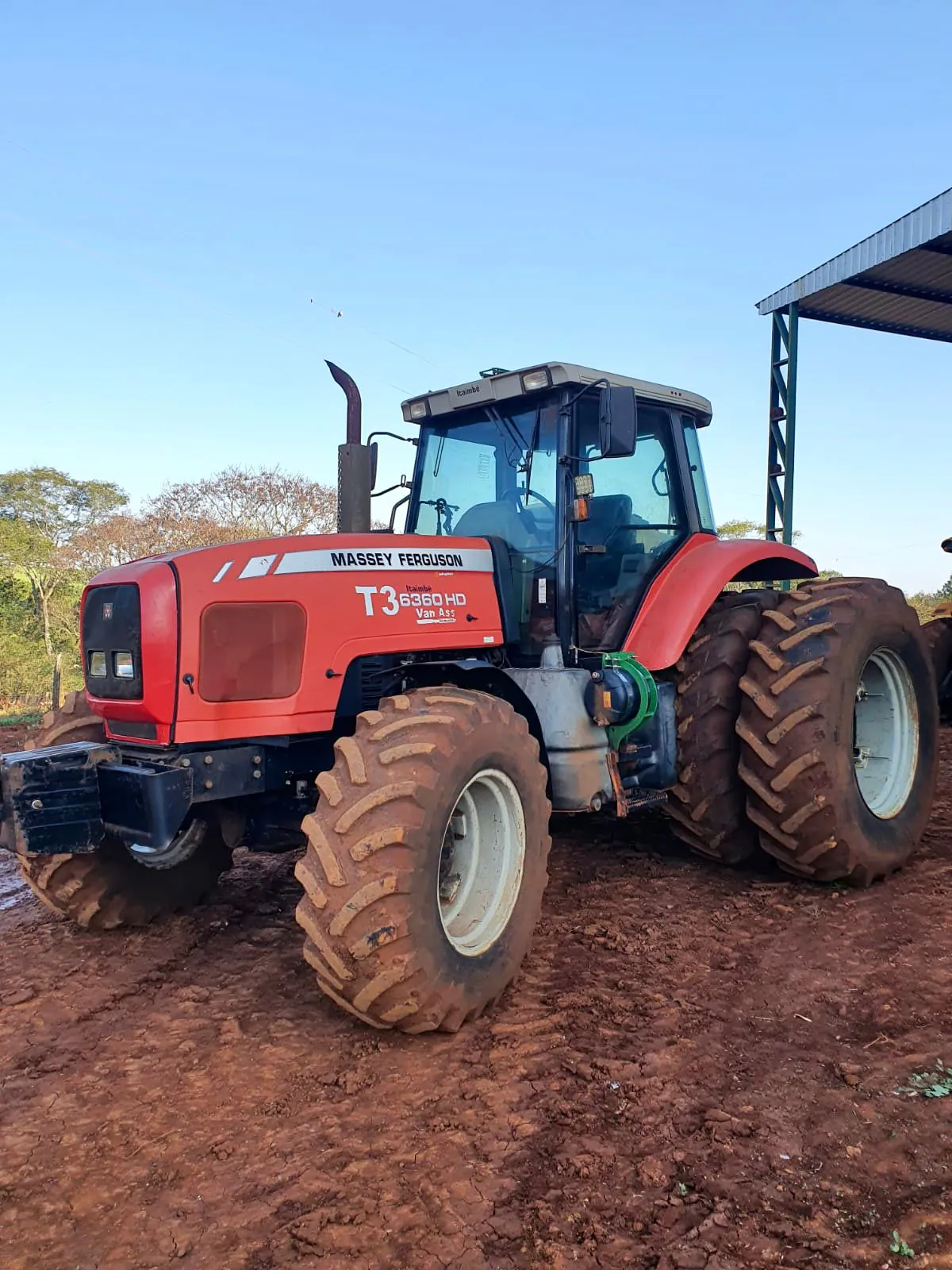

Massey Ferguson 6360
Massey Ferguson 6360 — Row-Crop tractor · 220 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
220 hp
Hover a source tag to verify
Overview
ManufacturerMassey Ferguson (a part of AGCO)Reference
Row-Crop tractorReference
Built in Canoas, BrazilReference
Four-wheel driveReference
Final drivesplanetaryReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
Cummins 8.3L 6-cyl dieselReference
Engine164.1 kWReference
Cummins 6CTA8.3Reference
turbocharged aftercooled dieselReference
6-cylinderReference
liquid-cooledReference
Displacement8.3 LReference
Bore/Stroke114 x 135 mmReference
Power164.1 kWReference
Rated RPM2200Reference
Torque882.1 NmReference
Torque RPM1500Reference
Starter typeelectricReference
Transmission
12-speedReference
Gears12 forward and 4 reverseReference
Clutch345mm dry discReference
Capacities
Fuel500.0 LReference
PTO & Hydraulics
Hydraulic system120.0 LReference
Capacity120.0 LReference
Pressure210.0 barReference
Valves3Reference
Rear TypeIIReference
Rear lift6999 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase309 cmReference
Front tire18.4-26Reference
Rear tire30.5-32Reference
Standard tires (ag)Front: 18.4-26. Rear: 30.5-32Reference
Optional tires (ag)Front: 18.4-30. Rear: 20.8-38Reference
Optional tires (ag)Front: 18.4-26. Rear: 20.8-38Reference
Optional tires (ag)Front: 600/55R30.5. Rear: 850/50R38Reference
Optional tires (ag)Front: 18.4-30. Rear: 20.8-42Reference
Optional tires (ag)Front: 18.4-26. Rear: 24.5-32Reference
Length562 cmReference
Height306 cmReference
Ballasted weight11999 kgReference
Ground clearance48 cmReference
Electrical
Charging systemalternatorReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
