Tractor · 2017Unverified

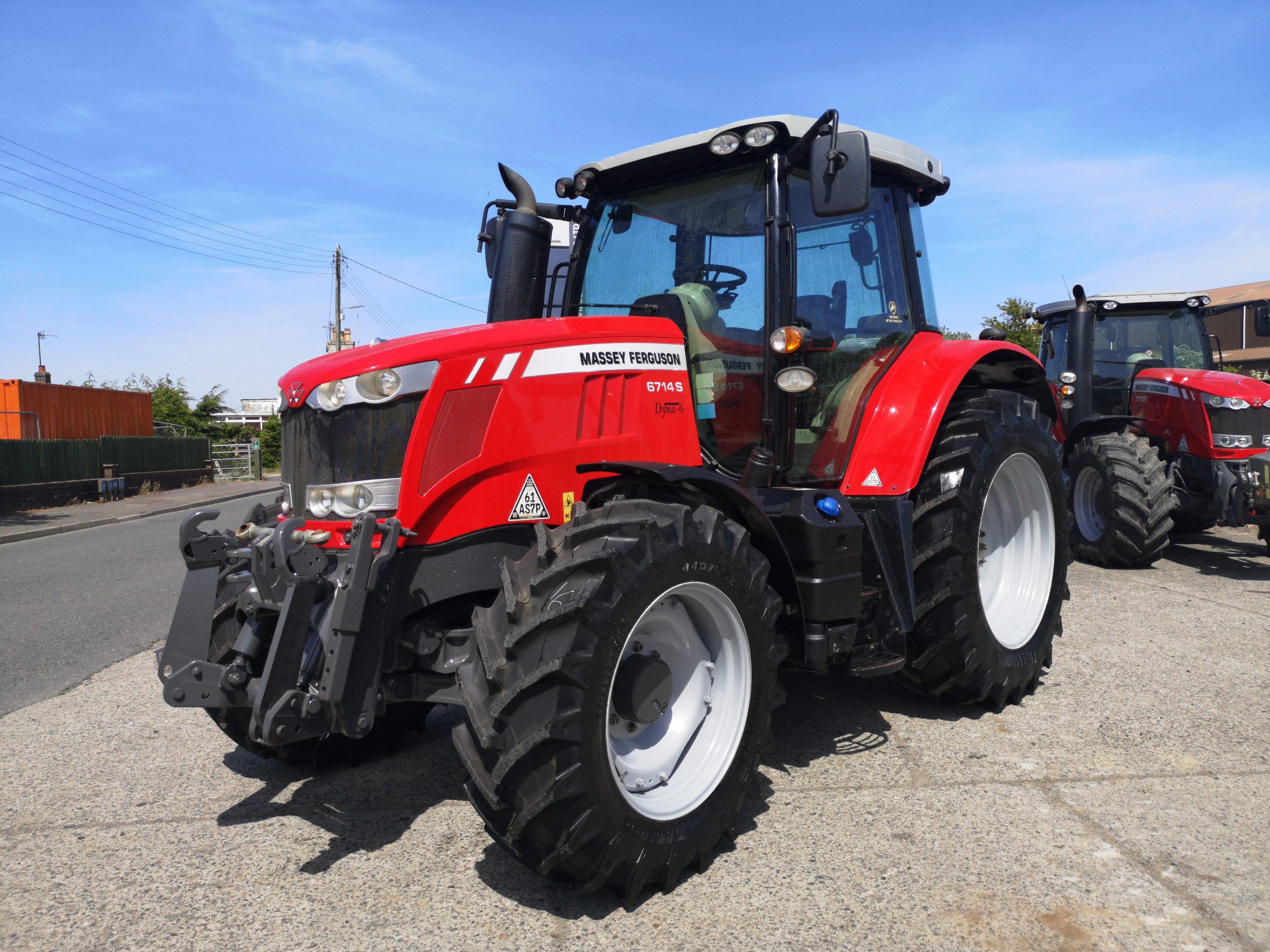

Massey Ferguson 6714S

Name: Massey Ferguson 6714S
Brand: Massey Ferguson

Massey Ferguson 6714S — Utility tractor · 126 hp. Reference specifications; pending source verification.

The Massey Ferguson 6714S is a tractor model with a rated power output of 126 hp, positioning it at the more powerful end of its class. It was produced from 2017 to 2021, and is equipped with a 4-cylinder turbocharged intercooled diesel liquid-cooled engine, paired with four-wheel drive and a continuously variable transmission. The model has a listed operating weight of 6999 kg and is suitable for operations on 200-800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

126 hp

Max power

83.8 kW

Weight

6999 kg

Catalogue coverage

Variants represented

Richest spec table

90 rows

Recorded power

126 hp

Recorded weight

6999 kg

Transmissions

16-speed four-speed power shift

Production years

2017-2021

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey Ferguson (a part of AGCO)Reference

Utility tractorReference

Four-wheel driveReference

Differential lockelectro-hydraulic front and rearReference

Power steeringReference

Hydraulic wet disc brakesReference

Trailer brakespneumaticReference

Trailer brakeshydraulicReference

Cab standard with air-conditioning. Available cab suspension.Reference

Variants

MT475Esimilar Challenger modelReference

Engine

AGCO Power 4.9L 4-cyl dieselReference

Fuel tank253.6 LReference

Exhaust fluid (DEF)29.9 LReference

Engine96.9 kWReference

Drawbar (tested)83.8 kWReference

AGCO Power 49 AWFReference

intercooled turbocharged dieselReference

4-cylinder 16-valveReference

liquid-cooled inlineReference

Displacement4.9 LReference

Bore/Stroke108 x 134 mmReference

EmissionsStage VReference

Emission controlSCR/DEF/DOCReference

Power96.9 kWReference

Maximum Power104.4 kWReference

Fuel systemhigh-pressure common rail direct injectionReference

Rated RPM2100Reference

Torque691.6 NmReference

Torque RPM1500Reference

StarterelectricReference

Starter volts12Reference

Power at rated engine speed94.1 kWReference

Max power83.8 kWReference

Transmission

16-speed four-speed power shiftReference

24-speed six-speed power shiftReference

continuously variable transmission (CVT)Reference

TransmissionDyna-4Reference

Typefour-speed power shiftReference

Gears16 forward and reverseReference

Clutchwet discReference

TransmissionDyna-6Reference

Typesix-speed power shiftReference

Gears24 forward and reverseReference

TransmissionDyna-VTReference

Typecontinuously variable transmission (CVT)Reference

Gearsinfinite forward and reverseReference

PTO & Hydraulics

PTO (claimed)89.5 kWReference

PTO (tested)94.1 kWReference

Typeopen centerReference

Typeclosed centerReference

Pressure200.0 barReference

Rear valves5Reference

Front valves2Reference

Pump flow99.9 lpmReference

Pump flow110.1 lpmReference

Pump flow189.2 lpmReference

Rear TypeIIIReference

Rear lift (at 24"/610mm)5100 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulicReference

Rear PTO Type540/1000 (1.375)Reference

Engine RPM540E@1530Reference

Engine RPM540@1980Reference

Engine RPM1000E@1570Reference

Engine RPM1000@2030Reference

Front PTOindependentReference

Front PTO Type1000Reference

Engine RPM1000@1920Reference

Power at rated PTO speed98.4 kWReference

Dimensions

Wheelbase266 cmReference

Weight6999 kgReference

Length492 cmReference

Width182 cmReference

Height (cab)302 cmReference

Flange rear axleReference

Bar rear axleReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps175Reference

Charging amps240Reference

Battery volts12Reference

Test results

Diesel Dyna-VT 4WDOctober 2016 - November 2016, Link: OCED Tractor Test 1120 fileReference

PTO performanceReference

Fuel use29.1 l/hourReference

Fuel use29.9 l/hourReference

Drawbar performanceReference

Fuel use31.0 l/hourReference

Pull at 7.45KPHReference

Max pull6862 kgReference

Pull at 3.52KPHReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
