Tractor · 2022Unverified

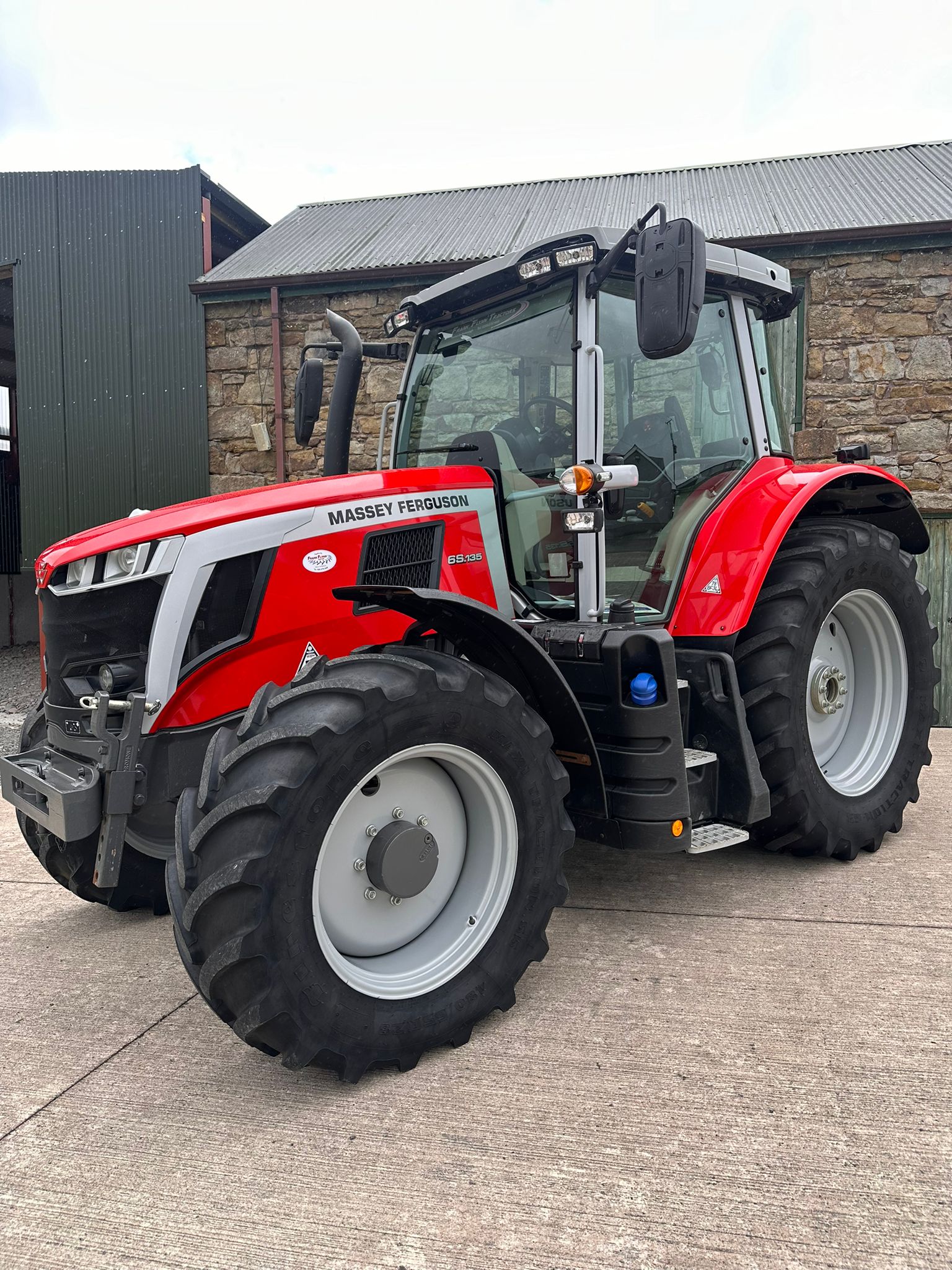

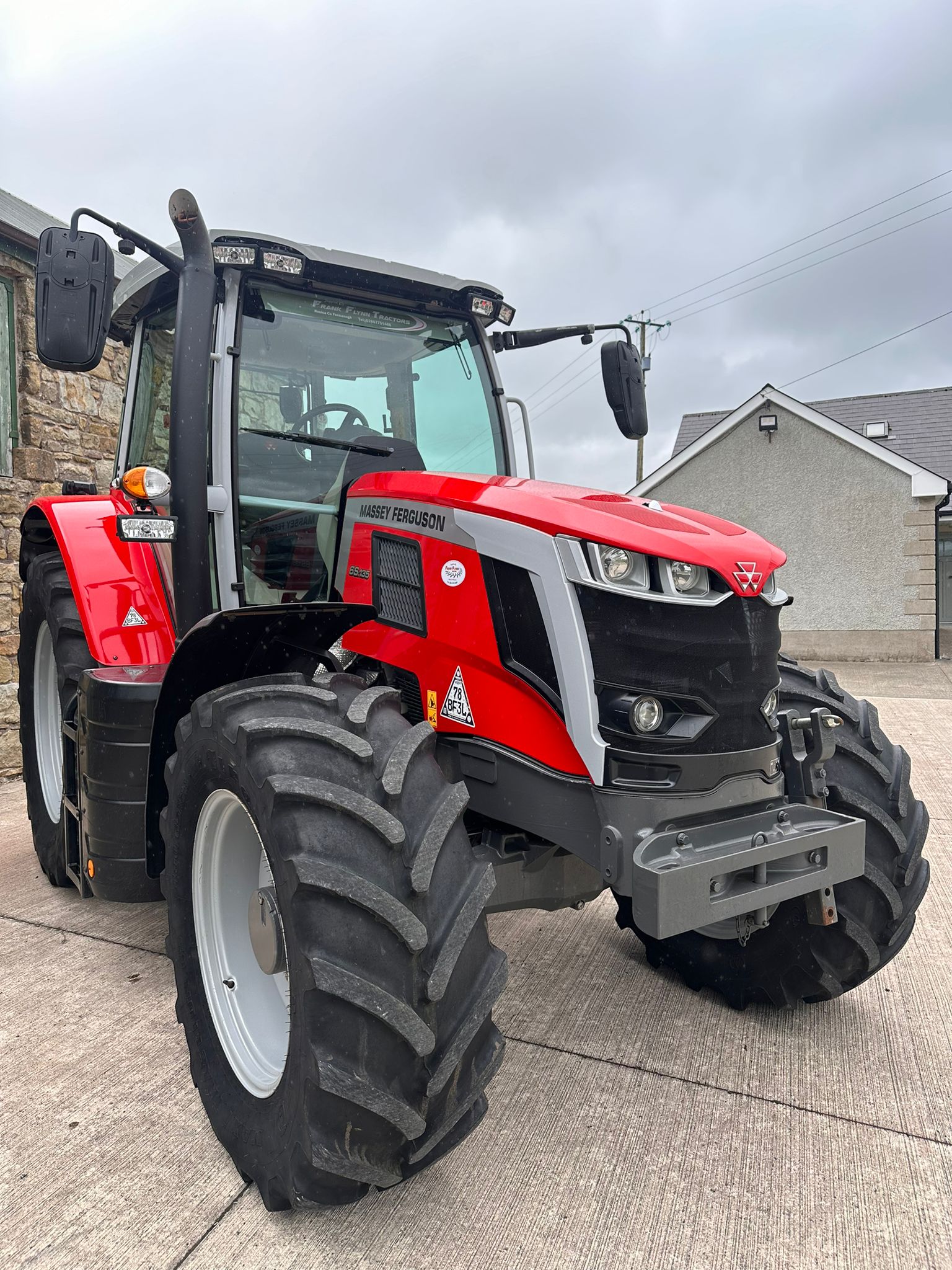

Massey Ferguson 6S.135
Massey Ferguson 6S.135 — 6S Series · 134 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
134 hp
Weight
12787 to 15432 pounds
Hover a source tag to verify
Overview
ManufacturerMassey Ferguson (a part of AGCO)Reference
Row-Crop tractorReference
Four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
AGCO Power 4.9L 4-cyl dieselReference
Fuel tank280.1 LReference
Exhaust fluid (DEF)35.2 LReference
Engine100.0 kWReference
AGCO Power 49LFNT-D5Reference
turbocharged intercooled dieselReference
4-cylinder 16-valveReference
liquid-cooledReference
Displacement4.9 LReference
Bore/Stroke108 x 134 mmReference
EmissionsStage VReference
Power100.0 kWReference
Maximum Power111.0 kWReference
Rated RPM1950Reference
Torque648.0 NmReference
Torque RPM1500Reference
StarterelectricReference
Starter volts12Reference
Transmission
24-speed six-speed power shiftReference
continuously-variable transmissionReference
TransmissionDyna-6Reference
Typesix-speed power shiftReference
Gears24 forward and reverseReference
TransmissionDyna-VTReference
Typecontinuously-variable transmissionReference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
Typeopen centerReference
Typeclosed centerReference
Pressure200.0 barReference
Rear valvesup to 5Reference
Front valvesup to 2Reference
Pump flow99.9 lpmReference
Pump flow110.1 lpmReference
Pump flow149.9 lpmReference
Pump flow190.0 lpmReference
Rear TypeIIIReference
Dyna-6 Rear lift7100 kgReference
Dyna-VT Rear lift9599 kgReference
Front HitchIIIReference
Front lift3200 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@1980Reference
Engine RPM540E@1530Reference
Engine RPM1000@2030Reference
Engine RPM1000E@1570Reference
Front PTOindependentReference
Front PTO Type1000Reference
Engine RPM1000@1920Reference
Dimensions
Wheelbase266 cmReference
Weight12787 to 15432 poundsReference
Front tire420/85R28Reference
Rear tire520/85R38Reference
Standard tires (ag)Front: 420/85R28. Rear: 520/85R38Reference
Length471 cmReference
Height (cab)302 cmReference
6999 kgReference
Shipping5800 kgReference
Capacities
Max capacity12500 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
