Tractor · 1999Unverified

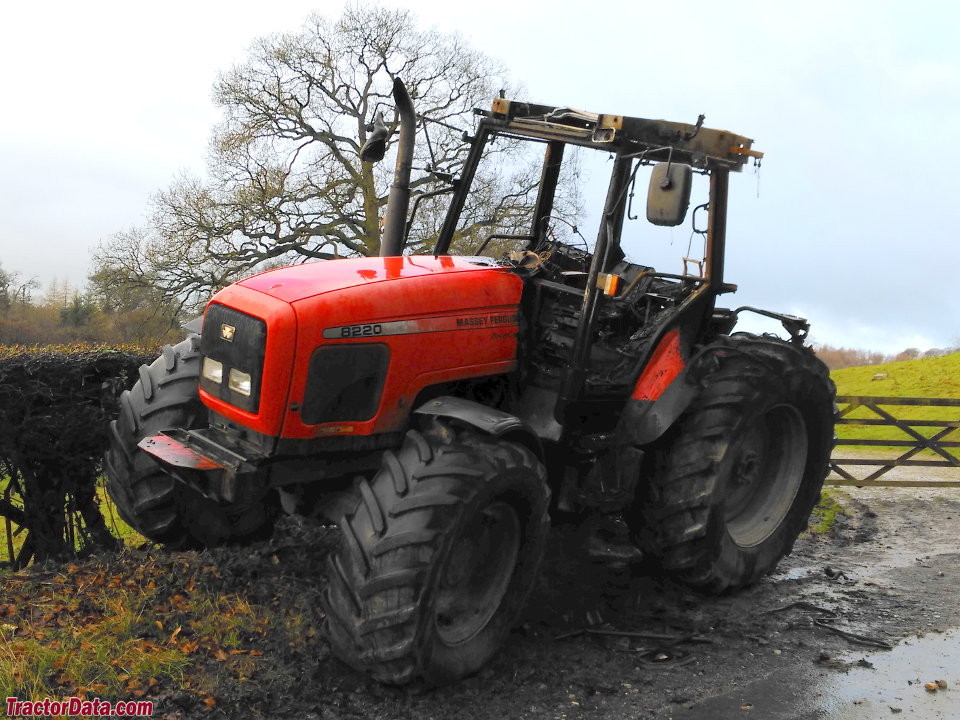

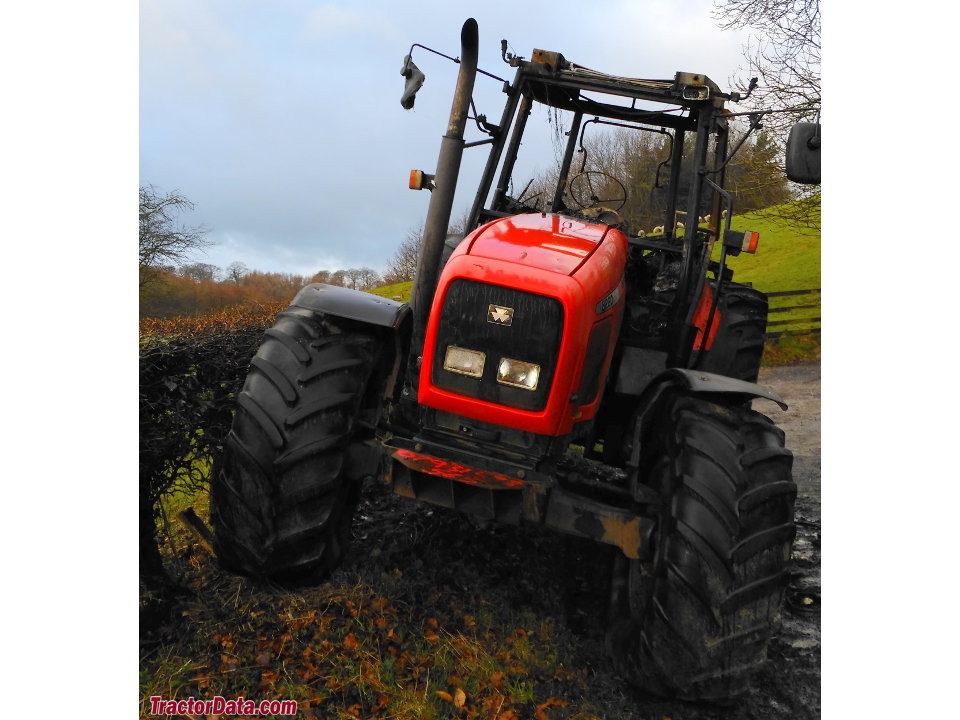

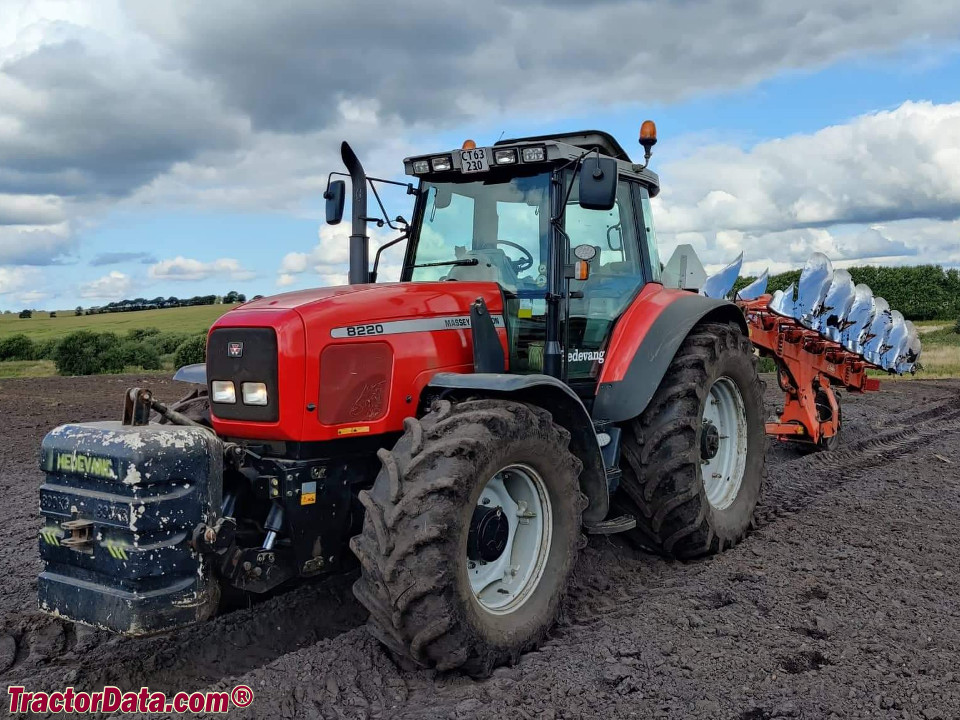

Massey Ferguson 8220
Massey Ferguson 8220 — Row-Crop tractor · 135 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
135 hp
Max power
99.6 kW
Weight
14760 to 15895 pounds
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Row-Crop tractorReference
Built in Beauvais, FranceReference
Original price$75,300Reference
Two- or four-wheel driveReference
Power steeringReference
Independent hydraulic wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
Perkins 6.0L 6-cyl dieselReference
Fuel tank408.8 LReference
Drawbar (tested)99.6 kWReference
Perkins 1006.6WTReference
turbocharged intercooled dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.0 LReference
Bore/Stroke100 x 127 mmReference
Air cleanerdual paper elementsReference
Compression16.0:1Reference
Rated RPM2200Reference
Starter volts12Reference
Power at rated engine speed101.0 kWReference
Max power99.6 kWReference
Transmission
32-speed four-range power shiftReference
18-speed full power shiftReference
Typefour-range power shiftReference
Gears32 forward and reverseReference
Typefull power shiftReference
Gears18 forward and 9 reverseReference
Clutchwet discReference
PTO & Hydraulics
PTO (claimed)100.7 kWReference
PTO (tested)101.0 kWReference
Typeclosed-center PFCReference
Pressure200.0 barReference
Valves3 or 4Reference
Pump flow109.8 lpmReference
Pump flow147.6 lpmReference
Rear TypeIIIReference
Rear lift (at ends)8700 kgReference
Rear lift (at 24"/610mm)6350 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Engine RPM540@2000Reference
Engine RPM1000@2000Reference
Power at rated PTO speed105.3 kWReference
Dimensions
Wheelbase274 cmReference
Weight14760 to 15895 poundsReference
Front tire11.00-16Reference
Rear tire18.4R-38Reference
Ag front11.00-16Reference
Ag rear18.4R-38Reference
Length490 cmReference
Height (cab)307 cmReference
Height (exhaust)312 cmReference
Operating weight6695 kgReference
Operating weight7209 kgReference
Clearance (drawbar)43 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps120Reference
Batteries2Reference
Battery CCA950Reference
Battery volts12Reference
Test results
Diesel 18-speed 4WDFebruary 1 - June 1, 1999Link: OCED Tractor Test 1845 fileReference
PTO performanceReference
Fuel use32.9 l/hourReference
Drawbar performanceReference
Fuel use34.1 l/hourReference
Gear 9 used for power test.Reference
Max pull6670 kgReference
Gear 5 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
