Tractor · 2018Unverified

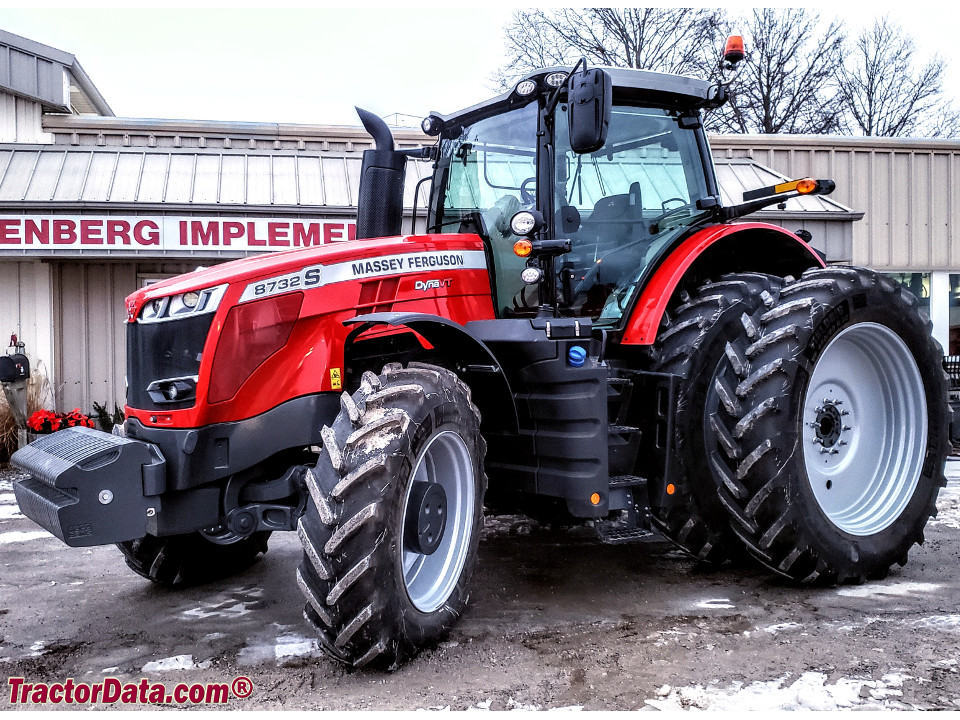

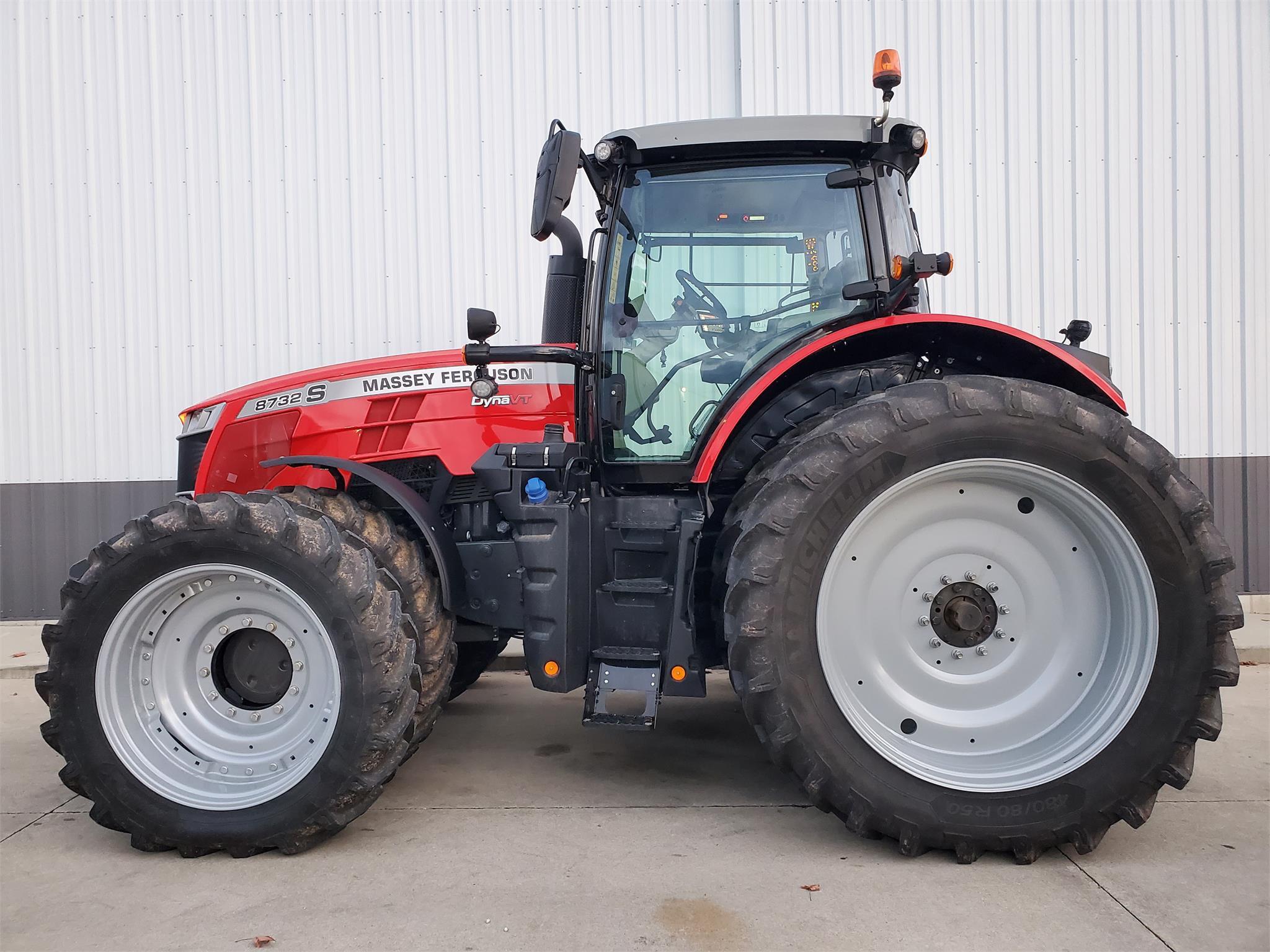

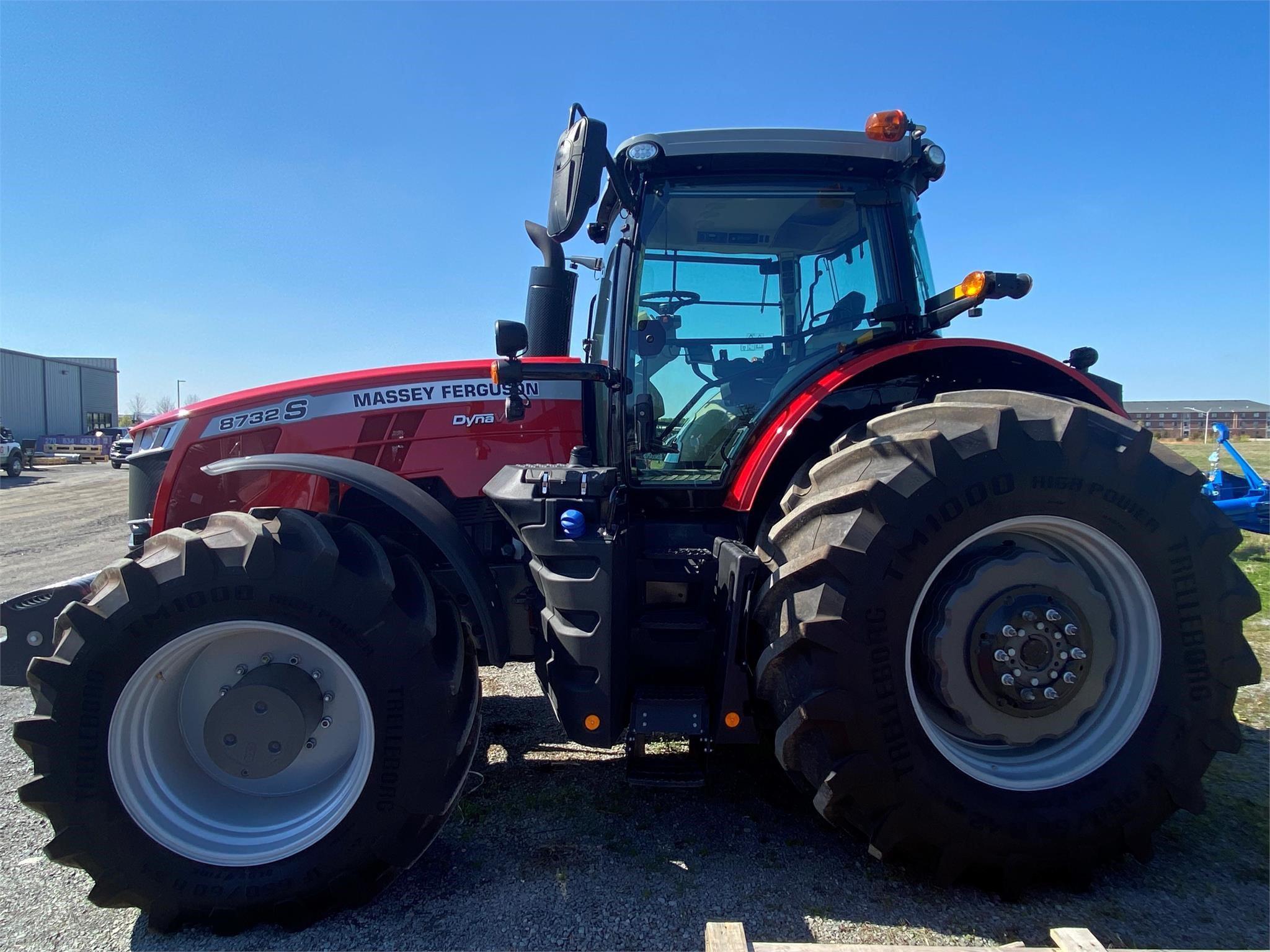

Massey Ferguson 8732S

Name: Massey Ferguson 8732S
Brand: Massey Ferguson

Massey Ferguson 8732S — Row-Crop tractor · 264 hp. Reference specifications; pending source verification.

The Massey Ferguson 8732S is a tractor model with a rated power output of 264 hp, positioning it at the higher end of its class. This model was manufactured from 2018 to 2024. It features a 6-cylinder turbocharged diesel liquid-cooled engine, coupled with four-wheel drive. The tractor has an operating weight of 10800 kg.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

264 hp

Max power

212.4 kW

Weight

10800 kg

Catalogue coverage

Variants represented

Richest spec table

84 rows

Recorded power

264 hp

Recorded weight

10800 kg

Production years

2018-2024

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey Ferguson (a part of AGCO)Reference

Row-Crop tractorReference

FactoriesJackson, Minnesota, USAReference

FactoriesBeauvais, FranceReference

Four-wheel driveReference

Power steeringReference

Hydraulic wet disc brakesReference

Trailer brakespneumaticReference

Trailer brakeshydraulicReference

Cab standard with air-conditioning.Reference

Engine

AGCO Power 8.4L 6-cyl dieselReference

Fuel tank629.8 LReference

Exhaust fluid (DEF)60.0 LReference

Engine238.6 kWReference

Drawbar (tested)173.5 kWReference

AGCO PowerReference

turbocharged dieselReference

6-cylinder 24-valveReference

liquid-cooledReference

Displacement8.4 LReference

Bore/Stroke111 x 145 mmReference

EmissionsStage IVReference

Emission controlselective-catalytic reduction (SCR)Reference

Power238.6 kWReference

Rated RPM1950Reference

Torque1389.9 NmReference

Torque RPM1500Reference

StarterelectricReference

Starter volts12Reference

Oil change500 hReference

Max power212.4 kWReference

Power at rated engine speed196.8 kWReference

Max power173.5 kWReference

Transmission

continuously-variable transmissionReference

TransmissionDyna-VTReference

Typecontinuously-variable transmissionReference

Gearsinfinite forward and reverseReference

PTO & Hydraulics

PTO (claimed)205.1 kWReference

PTO (tested)212.4 kWReference

Typeclosed-center load-sensingReference

Pressure200.0 barReference

Rear valves6Reference

Front valves2Reference

Pump flow205.1 lpmReference

Rear TypeIIIReference

Rear TypeIVReference

Rear lift (at ends)11999 kgReference

Front HitchIIIReference

Front lift (at ends)5000 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulicReference

Rear PTO Type540/1000 (1.375)Reference

Rear PTO Type1000 (1.75)Reference

Engine RPM540E@1577Reference

Engine RPM1000E@1605Reference

Engine RPM1000@1970Reference

Front PTOindependentReference

Front PTO Type1000Reference

Engine RPM1000@2036Reference

Power at rated PTO speed210.4 kWReference

Dimensions

Wheelbase310 cmReference

Weight10800 kgReference

Front tire620/75R30Reference

Rear tire650/85R42Reference

Standard tires (ag)Front: 620/75R30. Rear: 650/85R42Reference

Standard tires (ag)Front: 620/75R30. Rear: 710/85R38Reference

Standard tires (ag)Front: 600/65R34. Rear: 710/75R42Reference

Standard tires (ag)Front: 650/60R34. Rear: 900/60R42Reference

Length555 cmReference

Height (cab)351 cmReference

Max weight18000 kgReference

Front axleQuadlink suspensionReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Battery volts12Reference

Test results

Diesel Dyna-VT 4WDJanuary 2015 - April 2015, Link: OCED Tractor Test 2908 fileReference

PTO performanceReference

Fuel use59.0 l/hourReference

Fuel use57.2 l/hourReference

Drawbar performanceReference

Fuel use58.3 l/hourReference

Pull at 13.12KPHReference

Max pull10196 kgReference

Pull at 2.35KPHReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
